Best CPU Coolers For Ryzen 5 7600x [Top Rated]

Our CPU Cooler For Ryzen 5 7600x guide will assist you in picking the right type of CPU Cooler, alongside knowing its competitors, pros, cons, and what makes it better than others.

AMD continues to make strides within the tech industry with the release of its new Ryzen 7000 series of processors based on the Zen 4 architecture. Their latest “entry-level” processor, the Ryzen 5 7600x, has lately been all the hype among tech enthusiasts.

Given its high TDP of 105W, cooling the Ryzen 5 7600x is no easy task. To put into perspective, AMD’s flagship processor from the last generation, the Ryzen 9 5950x, also came with a default TDP of 105W. In fact, all of the processors in the Ryzen 7000 series have received a significant bump in their TDP compared to the last generation. While you are here, make sure to get the best motherboard for Ryzen 5 7600x and the best RAM for Ryzen 5 7600x as well.

Here is a quick comparison and selection of our CPU Coolers.

Cooler
Noctua NH-L9a-AM5 chromax.black
Noctua NH-U12A Chromax.black
Cooler Master MasterLiquid ML360 Mirror ARGB
DeepCool AS500 Plus White
Cooler Master Hyper 212 Black Edition
EK-AIO 240 D-RGB AIO Cooler
Award
Best Low-Profile CPU Cooler For Ryzen 9 7600X
Best Overall
Best 360mm AIO
Best White
Best Budget
Best 240mm AIO Cooler
Noctua NH-L9a-AM5 chromax.Black, Premium Low-Profile CPU Cooler for AMD AM5 (Black)
Noctua NH-U12A chromax.Black, 120mm Single-Tower CPU Cooler (Black)
Cooler Master MasterLiquid ML360 Mirror TR4 Edition Close-Loop AIO CPU Liquid Cooler, ARGB Mirror Pump, Dual Chamber Pump, SickleFlow 120 PWM Fans, AMD Threadripper TR4 (MLX-D36M-A18PK-T1)
DeepCool AS500 Plus CPU Air Cooler 5V-3Pin ARGB Sync 220w TDP 5 Nickel Plated Copper Heat Pipes CPU Cooler with Dual-Fan 140mm PWM 1200RPM for Intel LGA 1700/1200/1151/1150/1155 AMD AM5/AM4, White
Cooler Master Hyper 212 Black RGB CPU Air Cooler, SF120R PWM Fan, Anodized Gun-Metal Brushed Nickel Fins, 4 Copper Heat Pipes for AMD Ryzen AM4, Intel LGA1700/1200/1151 (RR-212S-20PC-R2)
EK AIO 240mm, D-RGB All-in-One CPU Cooler with EK-Vardar High-Performance PMW Fans, Water Cooling Computer Parts, 120mm Fan, Intel 115X/1200/2066, AMD AM4
Type
Low-Profile Air Cooler
Single Tower Air Cooler
AIO Liquid Cooler
Single Tower Air Cooler
Single-Tower Air Cooler
240mm AIO Liquid Cooler
What We Liked
Performance, Clearance, Noise, Installation
Clearance and Performance
Inifnity Mirror Design and Performance
2x 140mm fans, Clearance, Noise
Bang for the buck
Performance and Design
What We Disliked
Price
No RGB
Expensive and no RGB fans
No RGB, Compatibility with case
No RGB, Warranty, Performance
Noise
TDP
61 (NSPR)
150W
280W
200W
205W
200W
Noise
23.6 dBA
22.6 dBA
27 dBA
29.2 dBA
26 dBA
36.4 dBA
Colors
Black
Black, Brown
Black
Black, White
Black, White
Black
RGB
Cooler
Noctua NH-L9a-AM5 chromax.black
Award
Best Low-Profile CPU Cooler For Ryzen 9 7600X
Noctua NH-L9a-AM5 chromax.Black, Premium Low-Profile CPU Cooler for AMD AM5 (Black)
Type
Low-Profile Air Cooler
What We Liked
Performance, Clearance, Noise, Installation
What We Disliked
Price
TDP
61 (NSPR)
Noise
23.6 dBA
Colors
Black
RGB
Amazon
NewEgg
Cooler
Noctua NH-U12A Chromax.black
Award
Best Overall
Noctua NH-U12A chromax.Black, 120mm Single-Tower CPU Cooler (Black)
Type
Single Tower Air Cooler
What We Liked
Clearance and Performance
What We Disliked
No RGB
TDP
150W
Noise
22.6 dBA
Colors
Black, Brown
RGB
Amazon
NewEgg
Cooler
Cooler Master MasterLiquid ML360 Mirror ARGB
Award
Best 360mm AIO
Cooler Master MasterLiquid ML360 Mirror TR4 Edition Close-Loop AIO CPU Liquid Cooler, ARGB Mirror Pump, Dual Chamber Pump, SickleFlow 120 PWM Fans, AMD Threadripper TR4 (MLX-D36M-A18PK-T1)
Type
AIO Liquid Cooler
What We Liked
Inifnity Mirror Design and Performance
What We Disliked
Expensive and no RGB fans
TDP
280W
Noise
27 dBA
Colors
Black
RGB
Amazon
NewEgg
Cooler
DeepCool AS500 Plus White
Award
Best White
DeepCool AS500 Plus CPU Air Cooler 5V-3Pin ARGB Sync 220w TDP 5 Nickel Plated Copper Heat Pipes CPU Cooler with Dual-Fan 140mm PWM 1200RPM for Intel LGA 1700/1200/1151/1150/1155 AMD AM5/AM4, White
Type
Single Tower Air Cooler
What We Liked
2x 140mm fans, Clearance, Noise
What We Disliked
No RGB, Compatibility with case
TDP
200W
Noise
29.2 dBA
Colors
Black, White
RGB
Amazon
NewEgg
Cooler
Cooler Master Hyper 212 Black Edition
Award
Best Budget
Cooler Master Hyper 212 Black RGB CPU Air Cooler, SF120R PWM Fan, Anodized Gun-Metal Brushed Nickel Fins, 4 Copper Heat Pipes for AMD Ryzen AM4, Intel LGA1700/1200/1151 (RR-212S-20PC-R2)
Type
Single-Tower Air Cooler
What We Liked
Bang for the buck
What We Disliked
No RGB, Warranty, Performance
TDP
205W
Noise
26 dBA
Colors
Black, White
RGB
Amazon
NewEgg
Cooler
EK-AIO 240 D-RGB AIO Cooler
Award
Best 240mm AIO Cooler
EK AIO 240mm, D-RGB All-in-One CPU Cooler with EK-Vardar High-Performance PMW Fans, Water Cooling Computer Parts, 120mm Fan, Intel 115X/1200/2066, AMD AM4
Type
240mm AIO Liquid Cooler
What We Liked
Performance and Design
What We Disliked
Noise
TDP
200W
Noise
36.4 dBA
Colors
Black
RGB
Amazon
NewEgg

Last update on 2023-10-02

We also have similar guides on the best CPU coolers for Ryzen 9 7950X, Ryzen 9 7900X, and Ryzen 7 7700X. Be sure to check them out!


[ KEY TAKEAWAYS ]

  • AMD’s newly released 7000 series processors come with an increased TDP. The Ryzen 5 7600x has a TDP of 105W which means it requires a good amount of cooling performance.
  • The Ryzen 7000 series of processors are only compatible with the AM5 socket. The AM5 comes with an LGA interface with 1718 pins and also brings support for DDR5 memory and PCIe Gen 5.0 Lanes.
  • Coolers previously supported by the AM4 Socket will also be compatible with the AM5 platform, which means buying a separate cooler for the new 7000 Series processors will not be necessary.

Best CPU Coolers For Ryzen 9 7600x

Following are our picks for the Best CPU Coolers For Ryzen 9 7600x:

  1. Noctua NH-L9a-AM5 chromax.black
  2. Noctua NH-U12A chromax.black
  3. Cooler Master MasterLiquid ML360 Mirror ARGB
  4. EK-AIO 240 D-RGB AIO Cooler
  5. DeepCool AS500 Plus White
  6. Cooler Master Hyper 212 Black Edition

Noctua NH-L9a-AM5 chromax.black

Best Low-Profile CPU Cooler For Ryzen 9 7600X

Noctua NH-L9a-AM5 [Image By Tech4Gamers]
Noctua NH-L9a-AM5 chromax.black [Image By Tech4Gamers]

Specifications = Type: Low Profile Air Cooler | Fans: 1 x 92 mm | Fan Speed:  600-2500 RPM | NSPR: 61 | Noise: 23.6 dB(A) | Dimensions:  37 x 95 x 95 mm | Socket Compatibility: AMD Sockets: AM5 | RGB Fans: No

Pros

  • Adequate Thermal Performance
  • 100% RAM and PCIe Clearance
  • Low Noise
  • Easy Installation
  • 6-Year Warranty

Cons

  • Price

The NH-L9 family of coolers from Noctua is widely used in SFF PC builds. Likewise, these coolers have a compact design. The NH-L9a-AM5 is Noctua’s newest CPU cooler in this series. Strikingly, this cooler comes in both a basic and a chromax.black variant.

It retains the NH-L9 line height, powerful performance, outstanding quietness of operation, and full compatibility with RAM and PCIe thanks to the same tried-and-true heatsink design with an NF-A9x14 PWM fan.

To facilitate future upgrades, Noctua designed this cooler to be installed in a way that does not hinder access to components located close to the socket. The NH-L9a-AM5 is an excellent option for those looking for an ultra-compact heatsink that looks as good as it cools, and it comes with Noctua’s NT-H1 thermal compound and a complete 6-year manufacturer’s warranty.

The cooler’s overall dimensions (WxDxH) are 114 by 92 by 37 mm and 114 by 92 by 23mm without the fan installed. In addition, this cooler weighs a net of 465g. Consequently, the total height of this cooler is 37mm. The heatsink measures 23mm tall, while the fan is 14mm thick. From the perspective of the cooler’s height, this would provide a universal clearance for SSF cases.

You’ll find a pair of openings on one side of the heatsink. Both openings are located at opposite ends. Additionally, both ends are connected with 2x heat pipes. Above all, there are 66 fins on this heatsink. Moreover, the surface area in the middle is greater than that of the rest of the fins. Notably, Noctua’s fin stacking is top-notch. We got two 6mm copper heat pipes inside the U-shaped fin stacking. Each component is firmly attached to the solder.



In addition, four corner plates are on the corners. We can see that the NM-AFB10 brackets for this cooler’s base have already been attached, making the installation process quicker and simpler. A nickel coating protects the copper base, which is 39.5x40mm in size. Additionally, It comes with a Noctua NF-A9x14 PWM fan.

Consequently, there are nine blades in this fan. The frame of these has a stepped inlet design. Noctua’s SS02 bearing and a custom-designed, smooth-commutation PWM IC power this fan. This fan’s suction side blades have flow acceleration channels, which reduce vibrational noise. Modern-era CPUs run far above their basic clock rates, making it simple to exceed the manufacturers’ TDP ratings.

Because it is a complex task to quantify this TDP rating, Noctua has developed an internal rating system for their coolers that provides numerical information about the relative capabilities of each cooler. The larger number indicates more leeway in terms of cooling needs. The NSPR rating for this cooler is 61.

What We Liked

The Noctua NH-L9a impresses with its sleek appearance and powerful cooling capabilities. After putting the Noctua NH-L9a-AM5 cooling system through its paces, we can state that at only 37 mm in height, it is a tiny solution that is well suited to HTPC or other tiny chassis. The cooler’s installation is straightforward. At the same time, it offers 100% RAM and PCIe Clearance.

What We Disliked

A correspondingly higher price accompanies the excellent performance of the Noctua NH-L9a-AM5. While it succeeds in every respect, the somewhat increased price may put off consumers who are on a tight budget.

What Sets The Noctua NH-L9a-AM5 Apart From Its Competitors?

Noctua NH-L9a-AM5 Cooler CINEBENCH R23 Score
Noctua NH-L9a-AM5 Cooler CINEBENCH R23 Score



We ran the Noctua NH-L9a-AM5 Cooler benchmark for 10 minutes on an AMD Ryzen 7 7700X to get a baseline score. The CPU reached temperatures of 95.8°C (Multi-Core) and 74.8°C (Single-Core) and achieved scores of 19772 and 1991, respectively. At its beginning, the frequency was 5.19 GHz, and it dropped to 4.69 GHz.

The perfect blend of great thermal performance (as can be seen above) with easy installation and 100% clearance is what gives the Noctua NH-L9a-AM5 an edge over its competitors.

Verdict

Noctua isn’t settling down with what they’ve got when it comes to low-profile coolers. Noctua had to develop a brand-new design for the new socket AM5 while remaining compact. The manufacturing is high quality and has an excellent finish. Moreover, the cooler has great clearance for RAM and PCIe. Making it a viable choice as the Best Low-Profile CPU Cooler For Ryzen 9 7600X.

Noctua NH-U12A chromax.black

Best Overall CPU Cooler For Ryzen 9 7600x

Noctua NH-U12A Chromax.black
Noctua NH-U12A chromax.black – Image From Our Review

Specifications : Type: Single Tower Air Cooler | Colors: Black, Brown | TDP: 150W | RGB: None | Dimensions: 158 (H) x 125(W) x 58(L)  | Fan: 2x NF-A12x25 | Fan Speed: 450-2000 RPM |  Noise: 22.6 dBA |  Socket Support: Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 & AMD AM4, AM5

Pros

  • Excellent RAM clearance
  • Decent Performance

Cons

  • No RGB

Noctua never fails to impress us when it comes to CPU air coolers. The Noctua NH-U12A chromax.black is no exception to this. The NH-U12A is a mid-range offering from Noctua, which has been recently released with an all-black coating, making it a part of Noctua’s chromax black series.

Noctua’s chromax lineup of CPU coolers seems to be one of their more well-received series of coolers. The black coating on all of the chromax.black series of coolers is a significant improvement over Noctua’s original brown color scheme.

While it can be easy to mistake it for a budget cooler thanks to its slim design, The Noctua NH-U12A is far from cheap. Among Noctua’s wide range of CPU coolers, the NH-U12A chromax.black falls into the mid-range category of air coolers.

Coming in with a single-tower design, the NH-U12A features two of Noctua’s NH-A12 PWM fans equipped with SSO2 bearings. These 120mm fans are capable of spinning at speeds ranging from 450 to 2000 RPM. In addition to that, they come with an airflow of 102,1 m³/h and a maximum noise level of around 22.6 dBA.

Speaking of noise levels, Noctua has included a Low Noise Adapter with the NH-U12A, which reduces its fan speeds in order to reduce the overall noise output. Naturally, the low noise adapter also lowers its maximum airflow to  84,5 m³/h

The Noctua NH-U12A also comes with a seven heat-pipe design, each with an outer diameter of 6mm. It also comes with a total of 50 aluminum fins, which also come with a black coating.

In terms of compatibility, the Noctua NH-U12A supports a wide range of sockets. Since we are looking at the Best Ryzen 5 7600x Coolers, it is obvious that the NH-U12A also supports the newly released AM5 socket; overall, compatibility should not be an issue with the NH-U12A.

Speaking of compatibility, the Noctua NH-U12A features an extremely slim design compared to other coolers in a similar price range. Its slim design allows it to provide great RAM and GPU clearance.

What We Liked

Noctua claims that their 120mm NH-A12 fans are capable of providing the same level of performance as a 140mm cooler in a 120mm form factor. The temperature benchmarks further back up their claims, with the NH-U12A outperforming most air coolers in this price category.

Apart from the performance, Noctua has also done a great job with its design. While the NH-U12A is by no means a cheap cooler, it provides excellent value thanks to its incredible 7 Heatpipe design.

What We Disliked

There is not much to dislike about the Noctua NH-U12A, given that it provides performance on par with some liquid coolers. While Noctua has absolutely nailed the all-black design of the NH-U12A, the simple lack of RGB can be a deal-breaker for some people.

What Sets The Noctua NH-U12A chromax.black Apart From Its Competitors?

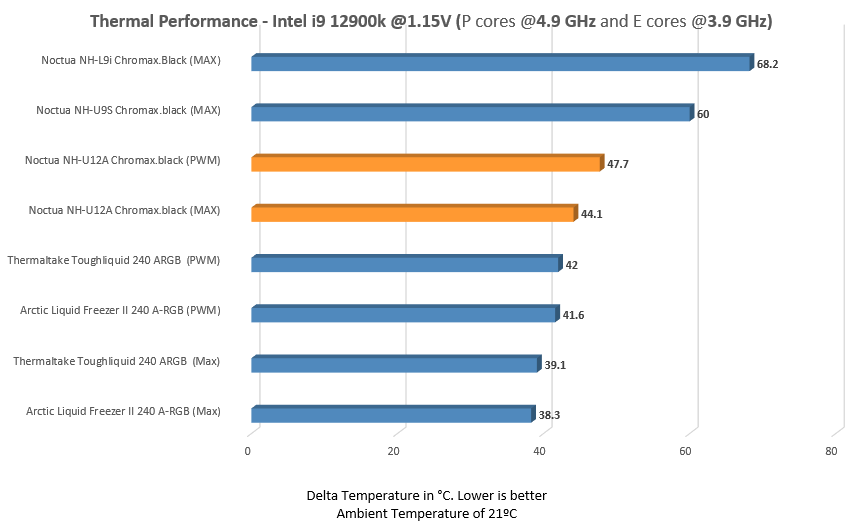

Noctua NH-U12 Benchmarks
How Noctua NH-U12A Compares to other CPU Coolers based on these benchmarks.

The Low Noise Adapter was also a brilliant inclusion by Noctua, allowing users to significantly lower noise levels. RAM clearance is also not an issue with the NH-U12A thanks to its relatively slim design.

Furthermore, thanks to the two NH-A12 fans, it delivers exceptional performance as far as air coolers are concerned. The NH-A12 fans have proved to be one of the better-performing fans Noctua offers.

Verdict

The Noctua NH-U12A is a well-designed cooler equipped with premium components. Being part of the chromax.black lineup of coolers, the Noctua NH-U12A is completely decked out with all-black components, which make the cooler stand out when it comes to visuals.

Apart from its fantastic design and solid build quality., the Noctua NH-U12A chromax.black edition provides a nice balance between price and performance, making it the Best Overall CPU Cooler For Ryzen 5 7600x. You may also read our full review of Noctua NH-U12A here.

Cooler Master MasterLiquid ML360 Mirror ARGB

Best 360mm AIO Cooler For Ryzen 9 7600x

Best 360mm AIO Cooler For Ryzen 9 7600x
Cooler Master MasterLiquid ML360 Mirror ARGB – Image Captured By Our Hands On Review.

Specifications : Type: 360mm AIO Liquid Cooler | Colors: Black| TDP: 280W | RGB: Yes | Dimensions: 394 x 119.6 x 27.2 mm | Fan: 3 x SickleFlow 120mm | Fan Speed: 650-1800 RPM |  Noise: 27 dBA |  Socket Support: LGA1700, LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1

Pros

  • Excellent Performance
  • Incredible Infinity Mirror Design

Cons

  • Slightly expensive for the price
  • Fans have no RGB

While Cooler Master is a brand that requires no introduction whatsoever, their ML360 “Mirror” lineup certainly does. Not to be confused with the MasterLiquid ML360 Illusion lineup of coolers, the ML 360 Mirror is a separate cooler that features slightly different specifications from the other ML360 coolers.

With CoolerMaster’s confusing name scheme out of the way, let’s take a closer look at the MasterLiquid ML 360 Mirror ARGB. Starting with its design, it comes with a standard triple-fan setup and an infinite mirror design on the pump.

While Cooler Master has not featured RGB on the three 120mm fans, the pump’s infinity mirror design, which is loaded with RGB, completely makes up for the lack of RGB on the fans. Furthermore, lighting can be controlled using software such as AURA Sync and RGB fusion.

Speaking of the fans, the three 120mm fans can spin at speeds ranging from 650-1800 RPM.
Moreover, they also have a maximum noise output of 27 dBA; however, the actual noise level depends on the fan speeds.

Additionally, these fans come with a maximum airflow of 62 CFM and an air pressure of 2.5 mm H20. As expected, CoolerMaster has gone with 4-pin PWM fans; however, the absence of any RGB lighting on the fans was a bit disappointing.

With the ML360 Mirror, we also see a 25 percent increase in the surface area of the radiator. Cooler Master has claimed that the higher surface area should help increase its overall cooling performance.

With a lot of coolers moving away from Astek pumps, cooler master has also shifted to an in-house pump design, featuring their brand-new third-generation dual chamber pump design, which is built to provide incredible cooling, all the while operating at silent noise levels.

In terms of socket compatibility, the Cooler Master MasterLiquid ML360 Mirror supports almost every socket released in the past couple of years, including older sockets such as AM3, AM2, and FM1.

What We Liked

Among Cooler Master’s Robust lineup of high-end CPU coolers, the MirrorLiquid Ml360 is the one that stands out the most. Not only is the MasterLiquid Ml360 Mirror capable of cooling the Ryzen 5 7600x, but this level of performance should also be sufficient for cooling even higher-end Ryzen 7000 series processors such as the 7800x..

What We Disliked

Price-to-performance ratio is definitely not on par with some of the other coolers we have seen; however, that does not mean that its performance is not up to the mark. The CoolerMaster MasterLiquid ML360 Mirror is perfectly capable of cooling even the higher-end Ryzen 7000 series processors.

The fans also come with no RGB, which should not be a huge deal considering cooler Master has added a lot of RGB on the pump; however, it is worth mentioning. Apart from those small nitpicks, there is not much to dislike about the CoolerMaster MasterLiquid ML360 Mirror.

What Sets The Cooler Master MasterLiquid ML360 Mirror Apart From Its Competitors?

CoolerMaster has done an incredible job with the MasterLiquid ML360 Mirror’s design, equipping it with an infinity mirror pump that stands out from the rest of the coolers on this list.

Since the CoolerMaster MasterLiquid ML360 Mirror comes with a monstrous triple-fan design and a large radiator, it provides top-notch cooling performance, allowing your processor to reach higher clock speeds when overclocked.

Verdict

As far as performance is concerned, the Cooler Master MasterLiquid ML360 Mirror has a rated TDP of 280W. Its triple-fan setup, coupled with the larger radiator, allows it to cool even the most power-hungry CPUs out there.

With all that taken into consideration, we have crowned the Cooler Master MasterLiquid Ml360 Mirror as the Best 360mm AIO Cooler For The Ryzen 5 7600x.

EK-AIO 240 D-RGB AIO Cooler

Best 240mm AIO Cooler For Ryzen 9 7600x

EK-AIO 240 D-RGB AIO Cooler
EK-AIO 240 D-RGB AIO Cooler – Image Captured By Tech4Gamers/Our Review.

Specifications : Type: 240mm AIO Liquid Cooler | Colors: Black| TDP: 200W| RGB: Yes | Dimensions:   275 x 120 x 27 mm  | Fan: 2 x EK-Vardar S 120ER D-RGB | Fan Speed: 550-2200 RPM |  Noise: 36.4 dBA |  Socket Support: Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 |  AMD AM4, AM5

Pros

  • Exceptional cooling performance
  • Great Design

Cons

  • Higher Noise Output

EKWB or EK water blocks is famous for manufacturing liquid coolers, water cooling kits, and GPU water blocks. Their mid-range air-cooler, the  EK-AIO 240 D-RGB, has been featured multiple times in our articles, and it is making a return on our list for the Ryzen 5 7600x CPU Coolers.

You can also check out our in-depth review on the EK-AIO 240 D-RGB, which covers the product in detail. Temperature benchmarks have also been included in this review.

The EK-AIO lineup of coolers consists of several coolers of different designs and sizes. Their most popular offering, the EK-AIO 240 D-RGB, comes in at a relatively affordable price point. You can also check out EKWB’s official site for additional information about these coolers.

Right off the bat, it becomes clear that EK-AIO 240 D-RGB comes with a rather unique pump design. The pump features a brushed-aluminum finish with EKWB’s logo on the bottom right.

Much like the competition, EK has also moved away from the Asetek pump design, shifting to an in-house design, which seems to have worked out for them..

EKWB has gone with an acrylic finish with the EK-AIO 240 D-RGB’S pump, which makes the RGB less distracting while also giving the block a premium look and feel. The pump also offers varying levels of speeds, ranging from 850 to 2600 RPM.

As the name suggests, the EK-AIO 240 D-RGB comes with a 240mm radiator featuring two of EKWB’s EK-Vardar S 120ER D-RGB fans, which we have seen on multiple products from EK-AIO. Without the fans, the radiator measures in at a thickness of 28mm.

Speaking of the 240mm radiator, you can also check out our article on the Best 240mm Liquid Coolers, to get a better idea of what the current market has to offer.

The EK-Vardar S 120ER fans have a maximum fan speed of 2200 RPM, static air pressure of 2.89 mm H20, and a maximum airflow of 66.04 CFM.

EK also offers 5 years of warranty with the EK-AIO 240 D-RGB, which should be more than enough. On the other hand, the EK-AIO Basic 240 should be a better option if you are not a fan of the RGB lighting featured in this cooler.

What We Liked

The EK-AIO series of AIO coolers from EKWB has continued to prove itself as one of the best-performing coolers in the market. The EK-AIO 240 D-RGB falls into the mid-range category of these coolers, providing a nice balance between its price and features.

It is clear that EKWB has cut corners with the design of the EK AIO 240 DRGB, its clean black design coupled with the RBG fans and the pump. Both the pump and the fans are extremely efficient, with the Dark Vader fans providing excellent airflow.

What We Disliked

The only thing worth pointing out about its negatives is the higher noise levels under full load. On average, the fans can reach a noise output of 36 dBA; however, the amount of noise heavily depends on the fan curves and the total load.

Speaking of fan curves, EKWB does not provide software to set the curves right out of the box , which can also be seen as an inconvenience.

What Sets The EK-AIO 240 D-RGB Apart From Its Competitors?

EK AIO 240 D Benchmarks
Here are the EK AIO 240-D Benchmarks, we conducted these to compare it with other coolers in this segment.

The EK-AIO 240 D-RGB features a stunning pump design, along with RGB fans; EKWB has gone with an all-black design for the radiator, which further complements its looks.

Much like EK-AIO 360, EKWB has gone with their EK-Vardar S 120ER D-RGB fans for the EK-AIO 240 D-RGB; these fans are capable of spinning at a maximum speed of 2200 RPM. As mentioned previously, both of these 120mm fans also come with RGB lighting,

It manages to compete with the likes of the Liquid Freezer II, outperforming the majority of the competition. While it is by no means cheap, it is reasonably priced and definitely worth considering when looking for a new cooler.

Verdict

EKWB has set the bar high with the EK-AIO 240 D-RGB, sweeping the competition when it comes to performance. On top of that, the cooler also comes with a great design and RGB fans, for anyone interested in that. All that, makes the EK-AIO 240 D-RGB the Best 240mm AIO Cooler For Ryzen 5 7600x.

DeepCool AS500 Plus White

Best White CPU Cooler For Ryzen 5 7600x

DeepCool AS500 Plus White
DeepCool AS500 Plus White – Image: From Our DeepCool AS500 Plus Review.

Specifications : Type: Single tower white air cooler | Colors: Black, White| TDP: 200W| RGB: Yes | Dimensions:  142 x 102 x 164 mm | Fan: 2 x TF 140s | Fan Speed: 300-1200 RPM |  Noise: 29.2 dBA |  Socket Support: Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 & AMD AM4, AM5

Pros

  • Dual 140mm Fans
  • Great RAM and GPU Clearance
  • Great RAM Clearance
  • Low Noise Levels

Cons

  • No RGB
  • PC Case compatibility can be an issue

Over the past couple of years, DeepCool has introduced a wide range of products, ranging from PC cases to CPU Coolers. When it comes to air coolers, DeepCool continues to dominate the competition, thanks to their extremely capable lineup of coolers.

Of course, The DeepCool AS500 Plus White is no exception to this, outperforming the majority of the coolers it competes against. As suggested by its name, the DeepCool AS500 Plus is an upgrade from the original AS500 “non plus” variant.

The DeepCool AS500 Plus White features a single tower design, equipped with two 140mm fans. DeepCool is making use of their high-performance TF140S PWM fans, which have maintained a decent reputation within the community.

As for their specifications, the TF140S PWM fans can spin at a maximum speed of 1200 RPM; however, it can be lowered down to 500 RPM, which is useful if you don’t mind sacrificing a bit of performance for lower noise levels.

Speaking of noise levels, the TF140S fans have a maximum noise output of 29.2 dBA, as listed on DeepCool’s official website. Furthermore, DeepCool has equipped these fans with fluid dynamic bearings; they provide a maximum airflow of 70.81 CFM and an air pressure of 1.14mmAq.

As far as RGB lighting is concerned, a subtle strip can be found on the edge of the heatsink cover. While the 140mm fan does block most of the strip, affecting its overall visibility in a case, it still manages to add a lot to its rather simple design.

In terms of RAM and GPU clearance, the DeepCool AS500 Plus White has stacked up quite well against most coolers of this category; however, the same cannot be said for the PC case compatibility since it has a height of 164mm.

The AS500 Plus White utilizes five heat pipes that are soldered onto the base plate, which is a better form of cooling than direct contact heat pipes. Moreover, the heatsink houses a total of 56 aluminum fins.

What We Liked

Its incredible out-of-the-box performance is what impresses us the most. Since it has been paired with dual 140mm fans, it’s capable of delivering best-in-class performance, competing with the likes of Noctua’s NH-D15S.

It also provides a few upgrades over the DeepCool AS500, such as the second 140mm fan. More importantly, the DeepCool AS500 Plus White provides excellent RAM and GPU clearance thanks to its compact design.

What We Disliked

The DeepCool AS500 Plus White is a monstrous dual-fan cooler, there is not much to dislike about it except its height. Since the AS500 Plus White stands at a height of 164mm, PC case compatibility can be an issue. It is important to ensure that it fits inside your case before the purchase.

What Sets The DeepCool AS500 Plus White Apart From Its Competitors?

DeepCool AS500 Benchmarks
Benchmarks for the DeepCool AS500 PLUS Conducted by us – clearly it’s a top-winning cooler.

One thing that immediately stands out about the DeepCool AS500 Plus White is its fantastic all-white design which is a treat to look at. The RGB strip present near the heatsink cover does an excellent job in complementing its design.

DeepCool has also included a separate controller for the AS500 Plus White, allowing you to manually switch between the different modes or change the brightness.

DeepCool’s TF-140S fans have yet again managed to amaze us with their silent yet impressive operation. While they only reach a maximum speed of 1200 RPM, they still deliver great results, all the while maintaining low noise levels.

Related Reads: Best CPU Cooler For Ryzen 9 7900x

Verdict

Its sophisticated and minimalistic design manages to stand out from its competitors; not only that, but it delivers exceptional performance. It goes head-to-head with the best air coolers out there, that too at a reasonable price.

With an MSRP of 70 US dollars, the DeepCool AS500 is definitely an attractive option at this price range. Taking all of that into account, we have deemed the DeepCool AS500 as the Best White CPU Cooler For Ryzen 5 7600x. Our full review of DeepCool AS500 Plus can be read here.

Cooler Master Hyper 212 Black Edition

Best Budget CPU Cooler For Ryzen 5 7600x

Cooler Master Hyper 212 Black Edition
Cooler Master Hyper 212 Black Edition – Comes with neat LED Lighting as well.

Specifications : Type: Single-Tower Air Cooler | Colors: Black, White| TDP: 205W| RGB: Yes | Dimensions: 123 x 77 x 158.8 mm   | Fan: Silencio FP120 | Fan Speed: 800-2000 RPM |  Noise: 26 dBA |  Socket Support: LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, LGA1366, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1

Pros

  • Cheapest Cooler on the list
  • Incredible value

Cons

  • No RGB
  • Performance
  • Only 2 years of warranty

Ever since the release of the Cooler master Hyper 212, Cooler Master has continued to release many iterations of the Hyper 212. Among those iterations also comes the Hyper 212 black edition, which now sports a completely new look compared to the original variant.

Compared to the original Hyper 212, The Cooler Master Hyper 212 Black Edition has received a complete overhaul, with an all-new black coating on all of the components, including the heat pipes and the aluminum fin stack.

Speaking of the heat pipes, the Cooler Master Hyper 212 comes with four of them in direct contact with the baseplate, which is pretty standard for a budget cooler. In addition to that, the heatsink houses a total of 54 aluminum fins.

It comes with a single tower design, featuring a single 120mm cooler. Cooler Master has gone with their Silencio FP120 fan for the Hyper 212, which provides a maximum fan speed of 2000 RPM. It provides a maximum airflow of 42 CFM along with a maximum air pressure of 2.9mm H2O

Unlike the RGB variant of the Hyper 212 black edition, the non-RGB hyper 212 black comes with five fins on the Silencio FP120 fan; however, the performance difference between the two should be minimal.

The Cooler Master Hyper 212 comes with a height of 158mm, which means it should have no issues fitting inside most cases. Its compact design allows it to provide uncompromised RAM clearance; the same can also be said for the GPU clearance.

Cooler Master has continued to provide updates for the. Since it has been around for a long time, the Hyper 212 supports even older sockets such as the AM3, AM2, and FM1 sockets.

What We Liked

While the Hyper 212 has not seen a massive improvement in terms of its performance, its new black design makes it a Good Cooler For Ryzen 5 7600x. The Cooler Master Hyper 212 sits at an extremely attractive price range, designed to cool mid-range processors. Its comparatively smaller form factor means RAM and GPU clearance won’t be a problem.

What We Disliked

The Cooler Master Hyper 212 is an entry-level cooler designed to cool mid-range processors. While it provides adequate levels of performance, overclocking a processor like the 7600x is simply not possible; if you intend on overclocking your processor, then opting for a higher-end air cooler or even an AIO Liquid cooler is recommended.

As far as RGB is concerned, you will not be getting a whole lot of it any of Hyper 212’s variants, in-fact the Hyper 212 Black Edition features no RGB whatsoever; however, there is a separate RGB version.

Cooler Master has only provided 2 years of warranty with the Hyper 212 Black Edition, which is a bit disappointing, especially considering most of the coolers in a similar price range offer up to 5 years of warranty.

What Sets The Cooler Master Hyper 212 Black Apart From Its Competitors?

While the Hyper 212 Black does not go out of its way to stand out from the rest, it simply does not need to. Given its incredible price-to-performance ratio, the Hyper 212 is already a great pick as a budget cooler. Furthermore, The shift to a much cleaner black aesthetic Hyper 212 further increases its value.

Verdict

In conclusion, the Cooler Master Hyper 212 Black Edition offers a great price-to-performance ratio. Its low price and easy installation process make it a perfect cooler for beginners, which is why we have given it the title of the Best Budget Cooler For Ryzen 5 7600x.

AM5 Socket Specifications

The launch of the new Ryzen 7000 series processors also marked the end of the AM4 socket’s lifespan. With AMD shifting over to their new AM5 socket with these new generations of processors, it is likely that we will not be seeing any backward compatibility with the 7000 series of processors.

Much like the AM4 socket, the AM5 socket is also expected to have a lifespan of 5 years. The shift to AM5 will bring a ton of new features to the table, including support for PCIe Gen 5 Lanes, DDR5 memory, and improved connectivity.

Starting with the memory, AMD has completely removed support for DDR4 memory with these newer AM5 sockets, restricting users to DDR5. While DDR5 is more expensive than DDR4, it also comes with higher clock speeds, resulting in an overall performance uplift.

While Intel made the switch to Land-Grid-Array technology years ago, AMD has just now shifted to the LGA interface. With the older PGA socket’s fragile pins, the shift to the LGA interface only makes sense in the long run.

While the transition from the Pin Grade Array (PGA) to LGA sockets will not necessarily affect performance, AMD has stated that it will improve the overall signal integrity. In addition to that, we also see a significant increase in the number of pins compared to the AM4 socket, with the AM5 socket now coming with 1718 pins.

With AM5 now featuring a lot more pins than the AM4 socket, they have also increased the TDP to 170W. Furthermore, the AM5 socket also supports 14 “SuperSpeed” USB Connections which provide transmission speeds up to a whopping 20GBps.

PCIe Gen 5 connectivity is part of the AM5 socket’s key features, almost doubling the transmission speeds provided by the previous generation’s PCIe Gen 4.0. A total of 24 PCIe Gen 5 Lanes will be provided with the AM5 socket.

As far as the chipsets are concerned, AMD has announced four different chipsets for the AM5 socket. These new chipsets include the X670E, X670, B650E, and the B650, all four of these will be available at different price points.

While the naming conventions have remained the same for the most part, they have also introduced the “extreme” lineup of chipsets, which deliver top-notch performance at their respective price points.

Do You Need A New CPU Cooler For AMD Ryzen 5 7600x?

While AMD has stated that previous generation coolers will also work on the new AM5 platform, you might want to upgrade your CPU cooler, considering the massive performance and TDP increase we have seen with these newer processors. However, if you already own an adequate cooling solution that is capable of cooling the Ryzen 5 7600x, then you should not have to worry about compatibility with the AM5 socket.

CPU Coolers Compatible WIth AMD AM5 Socket

With the launch of the new AM5 socket, many brands have already announced the list of coolers compatible with the AM5 socket. Here are some of the vendors we recommend if you are looking for a CPU Cooler for any one of the Ryzen 7000 series of processors.

How We Selected CPU Coolers For The Ryzen 5 7600x

Budget

Before anything, it is important to take your budget into consideration. Different types of CPU Coolers are priced at various price points, with AIO Liquid coolers being priced a lot higher than traditional air coolers. AIO Liquid Coolers also perform significantly better than air coolers, which justifies their higher price.

Having said that, budget offerings from renowned brands such as Cooler Master and Noctua have continued to improve over the years. The level of cooling performance you might require heavily depends on the workload. If you are someone interested in overclocking your processor to its very limit, then investing in a higher-end cooler is definitely worth it.

Performance

To some people, performance can be the most important parameter when looking for a brand-new CPU cooler. Given the huge increase in TDP of these newer Ryzen 7000 series of processors, it comes as no surprise that they generate a lot of heat which means a great-performing cooler is required to cool them.

Different coolers offer varying levels of performance. As mentioned previously, AIO coolers have maintained a record of providing better cooling performance, with 360mm radiators providing far better performance than 240 or 120mm coolers.

As far as conventional air coolers are concerned, a few factors affect their overall performance, with their heat pipes and fans being the most important ones.

Furthermore, anyone interested in reaching higher clock speeds through overclocking will need an even beefier cooling solution for their CPU. A high-end liquid cooler is recommended if you wish to overclock your processor to its limits.

TDP Rating

TDP or Thermal Design Power Rating is a common way of determining the level of performance a CPU Cooler is able to provide. A CPU Cooler with a higher TDP rating is able to cooler higher-end processors.

Over the years, TDP rating has grown to be a rather inaccurate measure of a cooler’s performance. While there have been many alternatives to the TDP rating of a cooler, such as Noctua’s NSPR rating, the TDP rating is still used more commonly to give buyers an idea of how a processor should perform.

Noise Levels

Noise levels are particularly important for anyone working in quieter environments. Naturally, Coolers operating at higher speeds tend to produce more noise, which can be a huge problem for some people.

Low noise levels can be achieved by simply lowering the fan speeds; however, you will lose a bit of performance in doing so. There are a few coolers that stand out for their lower noise levels even while operating at higher speeds.

It is also important to note that companies such as Noctua also provide low noise adapters with some of their coolers..

Aesthetics

While aesthetics might be the least of worries for people who focus on a cooler’s raw performance, they can be equally as important as performance to others. A visually appealing CPU Cooler with a great design can be used to enhance your system’s look, making it stand out from the crowd.

It is also just as important to ensure that you don’t overspend on a cooler for its design alone. Since aesthetics have no way of affecting performance, it is important for people on a strict budget to opt for a better-performing cooler, even if it means sacrificing the aesthetics.

Why Trust Us

Founded by a group of extremely talented individuals, Tech4Gamers has been providing tech content for the masses for an incredibly long period of time. Within that period, Tech4Gamers has maintained a decent reputation within the industry. After being recognized by brands such as Gigabyte, ASUS, and DeepCool, Tech4Gamers has solidified their standing in the industry as a source for authentic tech news and reviews. The CPU Coolers are picked after the extensive hands-on experience, which is evident from the individual reviews. We don’t rate a product unless we have tested, compared, and seen it for ourselves.

Frequently Asked Questions

Should I get a CPU Cooler For Ryzen 5 7600x?

Since the Ryzen 7000 series of processors do not come with stock coolers, it is recommended to purchase a capable aftermarket cooler if you intend on purchasing the 7600x.

Does Ryzen 5 7600x Overheat?

Being the weakest processor out of the 7000 series of processors, the Ryzen 5 7600x is less likely to overheat when compared to the rest of the lineup. However, you will have to pair it with a decent aftermarket cooler in order to maintain lower temperatures.

Does Ryzen 5 7600x Come with a stock cooler?

No, none of the Ryzen 7000 series of processors come with a stock cooler. Of course, the Ryzen 5 7600x is no exception to this.

What type of CPU cooler should I get for Ryzen 5 7600x

Taking the high TDP of the new 7000 series into consideration, you will need to pair the 7600x with a powerful cooler that provides adequate levels of cooling performance in order to prevent issues such as overheating or thermal throttling.

Related Processors Guide: Best CPU Cooler For Ryzen 9 7950x


Was our article helpful? 👨‍💻

Thank you! Please share your positive feedback. 🔋

How could we improve this post? Please Help us. 😔

Related articles

5 BEST GPU For Ryzen 5 7600X In 2023

In this article. I will help you choose the best GPU for Ryzen 5 7600X. I will also discuss the pros and cons of potential options.

Ryzen 5 7600x vs Ryzen 5 5600x [Gaming & Productivity]

To help you make the right decision, we have decided to do a Ryzen 5 7600x vs Ryzen 5 5600x comparison to see which one is better.

Ryzen 5 7600X vs i5-12600K [Full Comparison 2023]

In this guide, we will cover all the topics related to Ryzen 5 7600X vs i5-12600K, including their gaming benchmarks.

Ryzen 5 7600X Vs Core i5-13400 [Benchmarks]

In our Ryzen 5 7600X vs Core i5-13400 guide, we are going to compare both processors in detail and see how they perform.

Best RAM For Ryzen 5 7600X In 2023

In this guide, we will walk you through the 6 Best RAM For Ryzen 5 7600X based on their performance, input voltage, and other features.

Similar Guides

Hayyan Serwer
Hayyan Serwer
Hayyan Serwer is a tech enthusiast, with a love for PC building and article writing. Hayyan specializes in writing about CPU coolers and RAM kits. Hayyan has been familiar with the tech industry for over half a decade now, and has now stepped into providing quality reviews for the latest and greatest tech.

48 COMMENTS

  1. You actually make it appear so easy along with your
    presentation but I find this matter to be really one thing
    that I believe I’d by no means understand. It sort of feels too
    complex and very vast for me. I’m looking ahead to your next publish, I’ll
    try to get the dangle of it!

  2. Wow that was odd. I just wrote an really long comment
    but after I clicked submit my comment didn’t appear. Grrrr…

    well I’m not writing all that over again. Anyways, just
    wanted to say great blog!

  3. Hi I am so grateful I found your blog page, I really found you by mistake, while I was searching on Digg for something else, Anyways
    I am here now and would just like to say kudos for a incredible post and a all round enjoyable blog (I also love the theme/design), I don’t have time to look over it all at the minute but I have book-marked it
    and also added your RSS feeds, so when I have time I will be back to read a great deal more,
    Please do keep up the excellent job.

  4. Do you mind if I quote a couple of your posts as long as I
    provide credit and sources back to your website? My blog site is in the exact same niche as yours and my
    users would certainly benefit from a lot of the information you present here.
    Please let me know if this okay with you. Many thanks!

  5. Great beat ! I would like to apprentice while you amend your web
    site, how could i subscribe for a blog website?
    The account helped me a acceptable deal. I had been a little bit acquainted of this your broadcast offered bright clear idea

  6. Have you ever considered about adding a little bit more than just your articles?
    I mean, what you say is important and everything.
    However imagine if you added some great graphics or videos to give your posts more, “pop”!

    Your content is excellent but with images and
    video clips, this blog could certainly be one of the very
    best in its field. Superb blog!

  7. I’ll rikght away seize yourr rss feed aas I can’t fiind your email subscription hyperlink orr newsletter service.

    Do you have any? Pleasde permit mme understand iin order thaat I couldd subscribe.

    Thanks.

  8. Hello I am so glad I found your webpage, I really found you
    by error, while I was looking on Yahoo for something else,
    Nonetheless I am here now and would just like to say thanks for a remarkable post and
    a all round interesting blog (I also love the theme/design),
    I don’t have time to read it all at the minute but I have saved it
    and also added in your RSS feeds, so when I have time I will
    be back to read a lot more, Please do keep up the great job.

LEAVE A REPLY

Please enter your comment!
Please enter your name here
