The Intel Alder Lake CPUs have arrived and have come second thoughts with them. Is it necessary for me to upgrade? Shouldn’t I be able to? Whatever you choose, the new Alder Lake 12th Generation CPUs come with the LGA 1700 Socket, which means you’ll need either a new CPU Cooler or upgrade bracket to match that heat, which is why we at Tech4Gamers have put together a list of the Best LGA 1700 CPU Coolers in 2022 to help you make your selection even more effortless.
Last update on 2023-02-07
Intel LGA 1700 Socket Specifications
Before we go on board, there are a few things we need to know, starting with the new Intel LGA 1700 Socket.
|Specification||Intel socket LGA 1700|
|IHS to MB Height (Z-Stack, validated range)||6.529 – 7,532 mm socket|
|Socket Seating Plane Height||2.7 mm|
|Thermal Solution Hole Pattern||78 x 78 mm|
|Maximum Thermal Solution Center of Gravity Height from IHS||25.4 mm|
|Static Total Compressive Minimum||534N (120 lbf), Beginning of Life 356 N (80 lbf)|
|End of life maximum||1068 N (240 lbf)|
|Socket Loading||80-240 lbf|
|Maximum Thermal Solution Mass||950 gram|
|Dynamic Compressive Maximum||489.5 N (110 lbf)|
What to Look For in a CPU Cooler?
Before deciding which Alder Lake CPU to buy, consider that cooling will be your priority. To get the most out of your 12th Generation CPU, some of you may even consider overclocking, which would result in extremely high temperatures, necessitating the purchase of a high-end CPU cooler. With so many alternatives on the market, choosing the Best LGA 1700 CPU Cooler will be difficult. That is why we have included some Shopping Tips to consider while purchasing CPU Cooler For LGA 1700.
Always check if the Cooler you wish to buy supports your CPU socket. Because the newest Alder Lake CPUs use the LGA Socket 1700, coolers designed for the 11th Generation CPUs with LGA Socket 1200 will not fit due to the change in size owing to the number of pins they require various sockets. As a result, several CPU cooler manufacturers provide different bracket kits with their coolers to make them compatible with multiple sockets.
In addition to ensuring that your CPU cooler is compatible with your socket, ensure that it is compatible with your case. Coolers exist in various forms, sizes, and cooling methods, such as air cooling and AIO liquid cooling with varying radiator sizes. When it comes to Air Cooling, check the CPU clearance height since many Air Coolers are large and bulky. Therefore, when you buy an Air Cooler, make sure you check the Cooler’s height against the size of your case.
When it comes to Liquid Cooling, also known as AIO coolers, you should examine the Radiator size. AIO coolers are available in various sizes, ranging from 120mm radiators to 420mm radiators. Before buying an AIO cooler, make sure you have enough and the appropriate space in your PC case.
Many manufacturers focus on making their CPU coolers as quiet as possible. If you want a more silent operation, a CPU cooler with the lowest dBA with larger fans is the way to go. Compared to CPU Coolers with smaller fans, Wider fans are designed to spin slowly because they cover a larger surface area. You may also acquire CPU coolers with rubber pads to further reduce rattling noises.
Heat is dissipated via the heatsink. The best Cooler is determined by the number of heat pipes and their design; you may always use a cooler manufactured with pure copper or aluminum pipes to get the maximum heat dissipation. The Heatbase is the flat surface on the bottom of your Cooler.
Many CPU cooler manufacturers use different techniques to disperse heat; some use flat contact, while others use direct contact. You may choose an option depending on your needs, but the most important thing is to keep your CPU cool.
Many high-end AIO coolers come with proprietary software from the vendor. AI control has become the new standard, and with AI fan management, lowering CPU temperatures has never been easier. You may also use the manufacturer’s software to make custom temperature graphs and RGB patterns.
Finally, aesthetics have a significant role. Manufacturers go to great lengths to make their CPU coolers appealing. The Noctua coolers are beautiful, but the Asus and NZXT AIO coolers with displays on the AIO pump are insane. In the end, it comes down to personal preference; some people want RGB coolers, while others prefer simple yet functional designs.
Best LGA 1700 CPU Coolers
With everything in mind, we can now get on board to check out the Best LGA 1700 CPU Coolers in 2022. These CPU Coolers For LGA 1700 were picked after a set of criteria, that can be viewed below. Besides, all were properly tested, analyzed, compared, and most importantly compatibility was put into perspective. Apart from these, you can expect all of them to be in stock without any hassle.

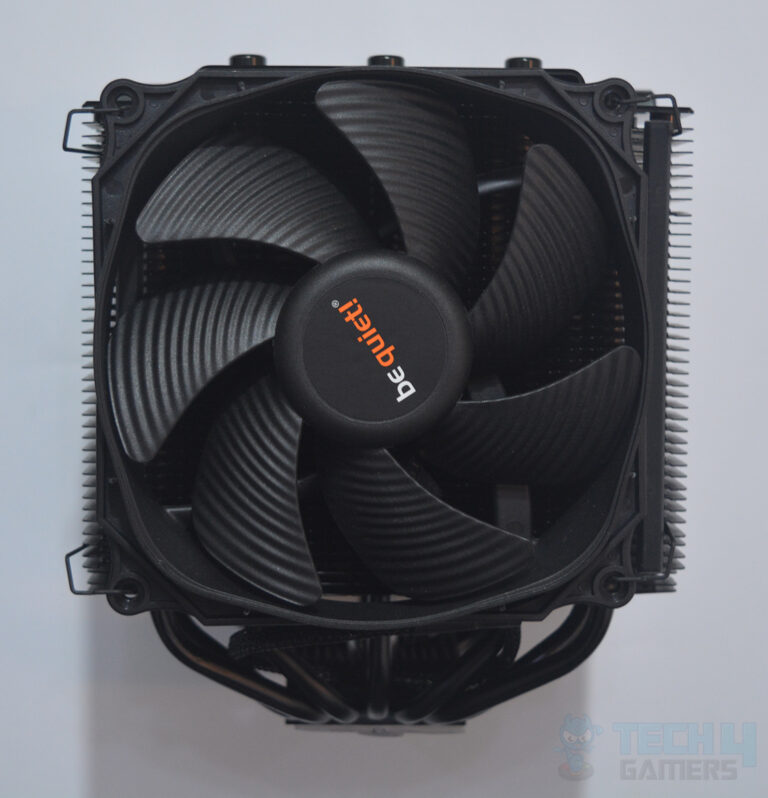

Dark Rock Pro 4
Best Air Cooler for LGA 1700
Specifications : Type: Dual-Tower Air Cooler | TDP: 250W | Heat Pipes: 7x 6mm | Lighting: None | Dimensions: 146 mm x 136 mm x 163 mm
- High Build Quality
- Low Noise Levels
- Better Mounting Mechanism
- Unsturdy over DIMM slots
The BeQuiet Dark Rock Pro 4 is a massive air cooler. The Dark Rock Pro 4 is excellent for all the classics out there, with a Dual-Tower design and all-black aesthetics. When it comes to air coolers, BeQuiet is recognized as a strong contender, and they have certainly delivered with the Dark Rock Pro 4.
Due to its highly sophisticated design and two PWM fans, the BeQuiet Dark Rock Pro 4 air cooler can take on any 240mm AIO cooler. The Dark Rock Pro 4’s two PWM fans have faultless bearings and tuned fan blades for maximum heat dissipation. The Dark Rock Pro 4 come in different sizes: a 120mm and a 135mm Silent Wings 3 fan.
With a TDP of 250W, it’s an excellent option for gamers and editors who want to get the most out of their processors. With its sophisticated design, the Dark Rock Pro 4 assists users in achieving low temperatures.
The Dark Pro 4 has 7x 6mm pure copper heat pipes, ensuring maximum heat dissipation and, when combined with the 1500rpm twin PWM fans, users can forget about high temperatures. We were also confused whether this picking Dark Pro 4 was good idea in CPU Cooler For i7-12700k. You can read more on that in our i7 12700k Cooler Guide.
What do we like about the Dark Rock Pro 4?
The dual-tower design accommodates a wide range of RAM types while providing room for a third fan. In addition to the twin PWM fans, consumers may add a third fan to increase cooling. The Dark Rock Pro 4 is user-friendly, boasting one of the simplest installation methods owing to BeQuiet.
In addition to the all-black appearance, BeQuiet has included all-black mounting brackets and screws to complete the design.
With the Dark Rock Pro 4, reviewers have become lovers of BeQuiet’s build quality. The Dark Rock Pro 4 is one of the best due to its better mounting mechanism and lower noise levels. When it comes to noise levels, owing to its Silent Wings 3 fans and innovative architecture, the Dark Rock Pro 4 is exceptionally quiet, even when running at full load.
What do we dislike about the Dark Rock Pro 4?
The sturdiness of the Dark Rock Pro 4 has been questioned repeatedly, especially over the DIMM slots. The Dark Rock Pro 4 is a bulky air cooler from BeQuiet, making it less popular among many users. The Price tag on the Dark Rock Pro 4 is also debatable, making it out of reach for many budget users, including those searching CPU Cooler For LGA 1700.
Overall, the Dark Rock Pro 4 is one of the most beautiful air coolers offered by BeQuiet. With its top-tier build quality and impressive noise levels, we confirm the Dark Rock Pro 4 as the Best Air Cooler for LGA 1700.
NZXT Kraken Z73 RGB
Best RGB CPU Cooler For LGA 1700
Specifications : Type: Triple-fan AIO | Power: 12V DC, 0.3A | Radiator Size: 360mm | Lighting: RGB | Dimensions: 121 mm x 394mm x 27 mm
- 2.36″ LCD
- Easy Installation
- Impressive Cooling
- Noise at +90% Load
The NZXT Kraken Z73 RGB is NZXT’s response to all high-end coolers on the market. Featuring 3x fans configuration on 360mm radiator coupled with new 7th generation AIO pump, the Kraken Z73 is already causing a stir.
If you enjoy brightly colored systems that scream RGB, the NZXT Kraken Z73 RGB is for you. Three 120mm RGB fans are included on the NZXT Kraken Z73 RGB, ensuring that your temperatures remain low and your life remains colorful. A 2.36″ LCD on the AIO pump header is built-in with the NZXT Kraken Z73 RGB, allowing you to see system temperatures simply by glancing at your AIO pump header.
In addition to displaying temperatures, the LCD screen can also display custom logos and graphics. Keep in mind, that Kraken X53, which is the older version, was also included in CPU Cooler For i5-12600k.
The NZXT Kraken Z73 RGB CPU Cooler For LGA 1700 isn’t only about looks and aesthetics; it’s also about performance, so don’t be shocked if it dethrones the competitors. The latest 7th generation AIO pump is more appealing and has better flow and durability. The base plate of the Kraken Z73 RGB is built of pure copper and includes pre-applied thermal paste for a stress-free installation.
The NZXT Kraken Z73 RGB communicates with your system through a USB 2.0 header, as well as various power interfaces. The three included AER RGB2 fans have a maximum rpm of roughly 1500, making the NZXT Kraken Z73 RGB tough to match when it comes to cooling.
What do we like about the NZXT Kraken Z73 RGB?
The NZXT Kraken Z73 RGB is AI-controlled via the NZXT CAM software, resulting in reduced temperatures with no human intervention. Users may also create custom graphs and operate the pump header LCD using the NZXT CAM program. The nylon tubing on the NZXT Kraken Z73 RGB can easily be rotated using the 90-degree swivel fittings, making the installation less untidy. Rubber grommets are also pre-installed on the cooler to decrease vibrations.
What do we dislike about the NZXT Kraken Z73 RGB?
The NZXT Kraken Z73 RGB is a bit expensive option, making customers wonder if they should choose custom water cooling or an AIO cooler. When operating at +90% load, the NZXT Kraken Z73 RGB noise levels may be relatively high, which can be quite bothersome for specific users.
The NZXT Kraken Z73 RGB, which comes in two colors, is the perfect pick for those who value appearances and aesthetics. With all of its brilliance and performance, the NZXT Kraken Z73 RGB is our pick for the Best RGB LGA 1700 CPU Cooler.
DeepCool AS500 Plus
Best LGA 1700 CPU Cooler 2022
Type: Single-Tower Air Cooler | TDP: 250W | Heat Pipes: 5x 6mm | Lighting: RGB | Dimensions: 142 mm x 102 mm x 164 mm
- Low Noise
- Improved Cooling
- Easy Installation
- Cooler Height may cause issues in some Cases
DeepCool’s AS500 was a big success, so they’ve created the DeepCool AS500 Plus to carry on the tradition. The DeepCool AS500 Plus now has two TF140S fans for a pull-push configuration, while the heatsink has been limited to a minimum of 48mm to ensure RAM compatibility.
Read Our DeepCool AS500 Plus Review.
The new DeppCool AS500 Plus is available in two colors: full-on pearl white and full-on black. The latter additionally has built-in RGB to keep the aesthetics on point. For maximum cooling, the DeepCool AS500 Plus is a single tower with a 5x 6mm pipe configuration; alongside the push-pull arrangement of the two TF140S fans, your CPU is kept cool at all times.
Compared to comparable single tower air coolers for LGA 1700, the DeepCool AS500 Plus shines in terms of performance and cooling capabilities. DeepCool has employed its quiet TF140S fans to keep noise levels as low as feasible even when the system is under full load. We might have picked this in our i9-12900k CPU Coolers, but It was not available by then. Thus, we went for the DeepCool Assassin III.
What do we like about the DeepCool AS500 Plus?
The DeepCool AS500 Plus’s build quality and sturdiness are unquestionable, and the use of high-grade copper and a single tower make it one of the best. The DeepCool AS500 Plus demonstrates the manufacturer’s devotion to its goods and customers, as the new AS500 Plus exceeds expectations. The fans are also pretty great, with speeds up to 1200rpm, noise levels are kept low, and performance is kept high.
What do we dislike about the DeepCool AS500 Plus?
RAM compatibility is assured as a single tower air cooler; however, the product height causes many consumers to doubt their case size. Many mid-tower cases would refuse to fit in the immensely tall DeepCool AS500 Plus, which stands roughly 164mm tall, so make sure to check if your case supports a max CPU height clearance of 165mm.
For those who want to get the most out of their air coolers, the DeepCool AS500 Plus is the best choice. The DeepCool AS500 Plus is the Best LGA 1700 CPU Cooler in 2022 because of its exceptional performance, attractive looks, great price, and built-in RGB.
ROG RYUJIN II 240
Best 240mm AIO LGA 1700 CPU Cooler
Type: Dual-fan AIO | Power: 12V DC, 0.3A | Radiator Size: 240mm | Lighting: 3.5″ full Color LCD | Dimensions: 121 mm x 272 mm x 27 mm
- 3.5″ Color LCD
- Great Cooling
- 2x Noctua Fans
- Built-In Pump Fan
- Loud Pump Noise
Asus has gone insane by adding a 3.5″ LCD on top of the pump header on the ROG RYUJIN II 240. The ROG RYUJIN II 240 from Asus is an incredible player in cooling capabilities and also one of the Best CPU Cooler for 12th Gen, thanks to the 7th generation Asetek pump and Noctua industrial PPC radiator fans. The Asus ROG RYUJIN II 240 has a broad range of compatibility choices, including LGA 1700 and AMD AM4 sockets.
With a full color 3.5″ LCD atop the 7th generation Asetek pump, the Asus RYUJIN II 240 delivers aesthetics like no other. The ROG RYUJIN II 240 can show temperatures, system utilization, and personalized logos and GIFs. The remainder of the radiator and fans are completely black and do not have built-in RGB.
Read Our In-depth ASUS Rog Ruijin 360 Review.
Asus included Noctua’s Industrial-grade 2000PWM fans with the 240mm radiator, delivering excellent airflow and low fan noise of 29.7dB. (A). The 7th generation Aestek pump is a piece of art, with Asus including a 60mm fan inside the pump to guarantee adequate airflow to the CPU socket and surrounding components at 4800 rpm.
What do we like about the ROG RYUJIN II 240?
Asus includes 380mm sleeved rubber tubing to guarantee that customers can easily install their radiator from the front or top. The AIO fan controller from Asus makes keeping temperatures low; with 4x PWM fan headers and even 4x ARGB headers, looks and performance are not compromised. Asus has completed the installation of the ROG RYUJIN II 240 quite simply, using the Intel brackets; even inexperienced users can quickly install the ROG RYUJIN II 240.
What do we dislike about the ROG RYUJIN 240?
Many consumers may find the Asus ROG RYUJIN II 240 expensive. At higher load levels, the 7th generation Aestek pump and the 60mm fan are said to create a lot of noise.
The ROG RYUJIN II 240 from Asus is the perfect choice for consumers who want insane aesthetics and performance while breaking the bank. Users can use the 3.5″ display on the pump header to display almost anything alongside Temps and Usages making the ROG RYUJIN II 240 the Best 240mm AIO LGA 1700 CPU Cooler.
Arctic Liquid Freezer II 360 A-RGB
Best 360mm AIO LGA 1700 CPU Cooler
Type: Triple-fan AIO | Power: 5V DC, 0.4A | Radiator Size: 360mm | Lighting: RGB | Dimensions: 398 mm x 38 mm x 120 mm
- Low Noise Levels
- Better Build and Performance
- Compact Coldplate
The moniker Arctic Liquid Freezer II comes to mind regarding zero clearance difficulties. Thanks to its strange yet unique pump design, the Arctic Liquid Freezer II 360 A-RGB offers no harm to RAM and components nearby. The Arctic Liquid Freezer II 360 A-RGB has been a popular favorite among low-mid-end AIO coolers thanks to its attractive appearance and excellent performance capabilities.
The Arctic Liquid Freezer II 360 A-RGB cools the CPU like no other, with a triple fan design 360mm radiator and 3x ARCTIC P12 PWM A-RGB 120mm fans. The Arctic Liquid Freezer II 360 A-RGB has a better build quality than its competitors. Thanks to its 1800rpm P12 ARCTIC fans, it’s also recognized as the least chatty or the AIO cooler with exceptionally low noise levels within the group.
In terms of appearance, the Arctic Liquid Freezer II 360 A-RGB features a one-of-a-kind pump design. ARCTIC took this effort to guarantee that system components adjacent to it have no clearance issues, and the appearance is futuristic but appealing.
Three user-controllable RGB fans accompany the full-black 3600mm radiator. The Arctic Liquid Freezer II 360 A-RGB cable management system is included to keep your system tidy.
What do we like about the Arctic Liquid Freezer II 360 A-RGB?
The Arctic Liquid Freezer II 360 A-RGB’s capabilities are more than amazing; the AIO is capable of cooling any high-end CPU at full load. The Arctic Liquid Freezer II 360 A-RGB also includes 450mm long EPDM braided tubing for simple and clean installation. It was also for these reasons, that we picked it as our primary choice for i9-12900k Liquid Cooler.
What do we dislike about the Arctic Liquid Freezer II 360 A-RGB?
The Arctic Liquid Freezer II 360 A-RGB comes with a small copper coldplate, which may cause difficulties with some CPUs. The pump design may also be questioned by some, while others may appreciate the effort.
The Arctic Liquid Freezer is a jewel for your 12th Gen processor, since it uses a top class radiator with high fin density and smooth VRM fans. We chose the Arctic Liquid Freezer II 360 A-RGB as the Best 360mm AIO LGA 1700 CPU Cooler, because of its amazing cooling capabilities and innovative pump design.
Cooler Master Hyper 212 Black Edition
Best Budget LGA 1700 CPU Cooler
Type: Single-Tower Air Cooler | Heat Pipes: 4 | Lighting: No | Dimensions: 123 mm x 77 mm x 158.8 mm
- Easy Installation
- Improved Cooling
- No RGB
Cooler Master’s Hyper 212 Black Edition is a low-cost CPU air cooler designed for Intel’s LGA 1700 socket. The Cooler Master Hyper 212 Black Edition has a sleek gunmetal finish and an all-black appearance, making it ideal for use as in a sleeper system.
Despite having a single tower design and just a 1x Silencio FP120 5-blade fan, the Hyper 212 Black Edition’s cooling capabilities continue to impress us. The direct-contact quad-Heatpipe architecture of the Cooler Master Hyper 212 Black Edition ensures maximum heat dissipation. The all-black aesthetics and heatsink alongside the brushed top and Cooler Master logo complete the appearance while maintaining excellent performance.
The Cooler Master Hyper 212 Black Edition’s installation is similarly quite straightforward; the Cooler is screwed into position, and the fan is then clicked into place to complete the process. The Cooler Master Hyper 212 Black Edition communicates with your system through a 4-pin PWM fan header.
What do we like about the Cooler Master Hyper 212 Black Edition?
The Cooler Master Hyper 212 Black Edition has long been a popular choice among budget consumers, thanks to its high-performance capabilities, even with overclocked CPUs. RAM clearance is likewise unaffected by the all-black and single-tower design.
What do we dislike about the Cooler Master Hyper 212 Black Edition?
The Hyper 212 Black Edition may underperform in specific tasks when compared to other Cooler Master air coolers, but the price tag more than makes up for it.
The Cooler Master Hyper 212 Black Edition is the best choice for a budget Overclocker or gamer. With an amazing price tag, we recommend the Cooler Master Hyper 212 Black Edition as the Best Budget LGA 1700 CPU Cooler.
What’s New in LGA 1700 Socket?
The LGA 1700 is significantly taller than the preceding Rocket Lake CPUs with LGA Socket 1200, indicating that Intel has improved their Socket game. In the Alder Lake CPUs, Intel has added an extra 2.5mm to create a way for more pins. The LGA 1700 Socket supports CPUs with 1700-1800 pins, implying that the LGA 1700 Socket would be used to build both the newest Alder Lake and the forthcoming Raptor Lake CPUs.
Keeping in mind that this is one of the most significant adjustments Intel has made in recent years, all because Intel has moved on to Hybrid cores architecture, which means that both E-Cores (Efficient Cores) and P-Cores (Performance Cores) are used in the process.
Many customers are concerned about these changes because upgrading to the new Alder Lake CPUs is not cheap, and now with the new Socket design, they might have to spend a few more bucks. The LGA 1700 vs LGA 1200 Comparison can be illustrated below, as both were released for different Intel Generations.
|Intel LGA 1200 vs LGA 1200|
|LGA Socket||LGA 1200||LGA 1700|
|Thermal Solution Hole Pattern||75 x 75 mm||78 x 78 mm|
|Z Stack (HIS to MB Height)||7.312 – 8.249 mm||6.529 – 7.532 mm|
|Z490, H470, B460, Q470, H410, Z590, H570, B560, Q570 and H510||Z690, H670, B660, and H610|
|Supported Processors||Intel 10th and 11th Generation||Intel 12th Generation|
Intel LGA 1700 Compatibility & Socket Upgrade Kits
Did I tell you about our saviors, though? Many Manufacturers making the Best CPU coolers for 12th Gen have come out with “Upgrade Kits,” which allow consumers to utilize their current LGA 1200 coolers with the new LGA 1700 socket. With the help of new brackets from the manufacturer, users will not need to punish their wallets.
Many manufacturers, such as Corsair, Noctua, Cooler Master, and others, have developed “Free” upgrade kits for their customers. Although some manufacturers may charge a little, users will gladly pay since it is still a tiny amount compared to the cost of a new CPU cooler. Not that we’re surprised, but most upgrade kits are now only available for high-end coolers, and we expect this to continue.
We’ve put together a list of manufacturers that provide upgrade kits for the new LGA 1700 socket, as well as some of the coolers that have upgrade kits available.
Corsair has been generous in supplying an update kit to its customers. The new Corsair LGA 1700 Retrofit Kit is currently available for 3 dollars on the official Corsair site. Users with the following coolers lineup may update the latest LGA 1700 socket using the Corsair Retrofit Kit.
- PRO XT
- Elite Capellix
- ELITE LCD Series AIO Coolers
The Kit is a pack of 4x standoffs that will adapt the previous socket to use with the new LGA 1700.
Compared to Corsair, Noctua has been more than generous in supplying consumers with free upgrade kits. Noctua’s new NM-i17xx-MP83 and NM-i17xx-MP78 mounting kits will allow consumers to convert current coolers with 83mm and 78mm mounting pitches to match the new LGA 1700 socket. The new SecuFirm2 sets are to provide optimal pressure and, at the same time, to be easy to install.
Noctua has even gone so far as to provide all-black upgrade kits for their chromax. Black coolers. All you need to do is contact Noctua technical support and provide proof of purchase of the CPU Cooler and the new processor/motherboard.
After verifying the request, the manufacturer will send you a new upgrade kit for free. Below you can find the list of Noctua CPU Coolers compatible with LGA 1700 socket, along with which mounting kit you need:
|Noctua CPU Cooler||Mounting upgrade kit for already owned Noctua Coolers without included LGA1700 mounting|
|NH-D15 chromax.black||NM-i17xx-MP83 chromax.black|
|NH-D15S chromax.black||NM-i17xx-MP83 chromax.black|
|NH-U12A chromax.black||no upgrade kit required|
|NH-U12S chromax.black||NM-i17xx-MP78 chromax.black|
|NH-U9S chromax.black||NM-i17xx-MP78 chromax.black|
Cooler Master is another company that has announced upgrade kits for their coolers. The new LGA 1700 mounting kit is available for almost all Cooler Master coolers. Cooler Master has also stated that existing Cooler Master customers would receive complimentary upgrade kits, which you can find below:
- 603005440-GP/603006050-GP- Hyper 212 EVO V2, MA612 Stealth Series
- 603005420-GP/603006040-GP- Hyper 212 Black Editon, Hyper 212 Black Editon RGB
- 603005870-GP/603006060-GP- All ML Liquid Cooler Series
- 603005450-GP/603006030-GP- MA624 Stealth Series
The name NZXT always comes to mind for massive CPU coolers. NZXT, a well-known name in the cooling sector, has announced an upgrade kit for the new LGA 1700 socket. Though keep in mind that, NZXT Kraken units produced after 11/25/21 will include the new LGA 1700 bracket, and consumers who already possess a Kraken AIO cooler will be able to take advantage of NZXT’s free upgrade kits.
Arctic has also prepared a new mounting kit that allows you to mount the Freezer i13 X (CO), Freezer 34, Freezer 50 Air coolers, and Liquid Freezer II AIO lineup on the LGA 1700 socket. In this way, the current coolers remain compatible with the new Intel processors.
The LGA 1700 socket upgrade kit will be available at the manufacturer’s store for 6 euros. Customers who have already purchased Arctic CPU Cooler can get it free after contacting technical support (you need to provide proof of purchase). The manufacturer declares that in the future, most of the current cooling units will be factory-equipped with a mounting kit for LGA 1700.
Apart from LGA Socket compatibility, there are some known compatibility issues with some motherboards too, as part of motherboards interferes with the PCB cover of the pump. Though, this can be fixed by removing the PCB cover. Only two screws have to be loosened and the cover can be easily removed. The function and safety of the Liquid Freezer II is not affected. Below is a list of motherboard which have been confirmed to have this problem.
- ASRock Z690 Taichi
- ASUS Prime Z690-A
- ASUS ProArt Z690-Creator WIFI
- ASUS ROG Maximus Z690 Extreme Glacial
- ASUS ROG Maximus Z690 Formula
- ASUS ROG Maximus Z690 Hero
- ASUS ROG Strix Z690-A Gaming WIFI D4
- ASUS ROG Strix Z690-E Gaming WIFI
- ASUS ROG Strix Z690-F Gaming WIFI
- ASUS ROG Strix Z690-G Gaming WIFI
- ASUS ROG Strix Z690-I Gaming WIFI
- Biostar Z690GTA
- MSI MPG Z690 carbon EK X
User affected with this motherboard compatibility issue are eligible to receive a cover free of charge upon request from ARCTIC on official website.
Here are some other LGA 1700 CPU Coolers that were close to making the list, but didn’t. These Coolers despite not making to the list are worthy, and here is everything you need to know about them.
Corsair H100i RGB PLATINUM
Corsair is a well-known and respected brand in the computer components industry which is why the Corsair H100i can hold its own against the rest of the CPU coolers on this list. This 240 mm AIO is easily compatible with most PC cases and comes with the typical RGB capability and software integration that Corsair is popularly known for.
While the Corsair H100i is quite a solid pick, it does not provide as much cooling as other coolers for the LGA 1700 as it can get quite noisy when reaching 100% speeds, partly since Corsair prefers aesthetics and looks, often leaving the functionality side lagging. Despite this, it successfully brings proper airflow, ideal for thermal regulation. It also has tidy cable management because it has a similar installation as most coolers and only requires and focuses on the USB & RGB cables.
However, a significant downside is that the RGB connectors are not compatible with most traditional 4-pin male or female adapters. The main feature this cooler brings to the table is its jaw-dropping software allowing the user to manage the color palette and pattern of the RGB lighting, pump management, and fan curves, providing you with a lot of customizability. Corsair H100i is, in all regards, a good component if you are looking for a good-looking and customizable CPU cooler for your LGA 1700 socket; however, its lackluster cooling does drag it down quite a bit.
Thermaltake TH120 ARGB
Thermaltake doesn’t forget to portray itself as a reputable brand trying its best to create new, impressive and innovative products for its customer base. They gave a glimpse of their longing for perfection in the Thermaltake TH120 ARGB, which provides many excellent features that make it compatible with the LGA 1700 and rival the other coolers for the CPU Socket.
TH120 ARGB All-In-One liquid cooler has a 120mm static pressure fan and a high-performance radiator that delivers impressive cooling performance. The water circulation is maintained by a high-quality water pump and attached to a low evaporation tube, leading to a significant decrease in coolant loss and reducing the number of refills needed.
Thermaltake TH120 ARGB is complemented by a huge range of RGB colors that can be controlled using a controller, allowing the users to switch LED modes and colors and allowing a wide range of user customizability. These features are jam-packed into a small compact cooler that is extremely easy to install and requires little to no maintenance.
However, Thermaltake TH120 ARGB’s only drawback is reports of it dying out after 5 to 6 months of usage. While this is not the case with every unit, it has been a common complaint against the model and could be detrimental to the health of your LGA 1700 CPU cooler setup. TH120 ARGB is the CPU cooler you want if you are willing to spend a decent amount on the cooling and aesthetic of your PC build, offering both decent performance and gorgeous RGB for the price range and the compact build.
Corsair Hydro Series H60 V2
The Hydro Series has always been the best-selling series of CPU coolers put out by Corsair, which is why expectations were high for the Corsair Hydro Series H60 V2, and thankfully, it did not disappoint. The 120 mm CPU cooler, being extremely compact and slim, can easily fit onto any fan mount of the same size, reducing the chance of any compatibility issues. This is further reduced because this cooler is compatible with a myriad of CPU chips from both AMD and Intel, making it a good choice for your LGA 1700 socket if you do not want to deal with compatibility problems.
You can expect an easy-to-install and maintenance-free cooler capable of providing years of high-performance cooling to your PC due to the great build quality, modular mounting bracket, and wide array of features. The nature of this All-In-One liquid cooling cooler makes it much more desirable than other fan-based CPU coolers as it is significantly less annoying with the delivery of low noise cooling and ample airflow when required. Capable of going triple its base speed, this cooler can provide you with precise speed adjustments.
Forgoing the RGB nature most CPU coolers gravitate towards nowadays, Corsair Hydro Series H60 V2 decides to go for a much more simplistic approach by having a white LED pump head specially designed to allow for quieter and much more efficient cooling. With hardly any noise, great cooling, and stylish looks, Corsair Hydro Series H60 V2 is undoubtedly an improvement from past models and worth checking out if you are looking for coolers for your LGA 1700 as it provides out of the box support for the CPU socket.
Noctua NH-U12S Redux
Excellence, quality, and silence are some of the many traits you can expect from the Noctua NH-U12S Redux, which seems to be a universally loved CPU Cooler worldwide. Noctua’s premium cooling components are known for their exceptional performance and high quality. While it won’t top the charts, the Noctua NH-U12S CPU cooler does its best to provide high-level and competitive cooling that will prevent overheating, even at max loads, and also comes in a Redux version which should be more than suitable for your LGA 1700.
Undoubtedly, Noctua NH-U12S Redux completely excels in the sound department; the fan is practically impossible to hear at lower speeds, whereas the cooler can remain extremely quiet even with a second fan installed. Unfortunately, the cooler itself does not come with a second fan which is a huge drawback; many competitor coolers for the LGA 1700 offer similar cooling capabilities and a second fan for much lower prices. Another aspect that people may not like is that this CPU cooler does not have RGB capabilities. The unavailability of RGB could potentially reduce or ruin your PC’s aesthetic considering the cooler’s Marmite style, which you will either love or hate.
All of this should not dissuade you from buying the product. If you want a cooler that provides unparalleled silence and great cooling, then Noctua NH-U12S Redux is the CPU cooler. While there are no doubt better options for cooling and price, very few can compete with the silence and quality this CPU cooler is capable of providing.
How We Chose Best LGA 1700 CPU Cooler
It has always been our utmost priority to bring the best Coolers for our readers, helping them make a clear-cut decision without any ambiguity. We ensure the standards by maintaining some guidelines, just like for the Best LGA 1700 CPU Coolers. Tech4Gamers brought you the CPU coolers For LGA 1700 following these protocols.
Each Cooler’s Individual Assessment
First of all, we prepare a list of all the LGA 1700 CPU Coolers out there according to each vendor. Four chipsets, including B660 Motherboards, Z690, H670 and H610, support the LGA 1700 socket to ensure that the chosen products follow all compatibility criteria. It’s also considered if each product is compatible with different form factors, and factors like clearance and fitness are also examined.
On a thorough observation, we list down the features for each cooler like the Radiator size, noise intensity, Software support, RGB, and others. After writing down the characteristics, we start filtering them based on User Experience and overall quality.
Comparison with other CPU Coolers
On narrowing down our list based on UX and quality, we start comparing the on-paper specs of each cooler with other CPU coolers. Each Cooler is compared under strict measures of following numerous standards such as compatibility, adjustment with form factors, type of Cooler, number of heatsinks, cooling infrastructure, and software support among many. This deep analysis of each cooler compared to others helps us jot down the Pros and Cons for each of the cooler.
After laying down the Pros and Cons, we have an evident analysis of each CPU Cooler, and we can make judgements on each one according to their design and how they will be performing in real-life scenarios. We can also assess them if they fall in the budget category or provide great features at a higher price point. To make things more straightforward for our readers, we categorize each cooler gauging them on their traits along with Pros and Cons.
These are classed as Best Air Cooler, Best 240mm AIO LGA 1700 CPU Cooler, Best Budget LGA 1700 CPU Cooler, and others. A lot of hard work is done by us to reach this state, but we have found that it benefits our readers a lot to cover it up. But wait! We haven’t finished yet.
Our CPU coolers have now entered the Testing Phase from a practical standpoint. Our testers start testing each CPU Cooler on a gaming build. A set of specs is finalized containing multiple motherboards of different chipsets. Then each CPU cooler is tested on each motherboard, and its performance is noted respectively. Performance is measured on light workloads like using small applications, watching a movie, playing games, and extreme workloads such as overclocking on the Z690 motherboard, Rendering, Adobe Premiere Pro, testing out multiple games on Medium to Ultra settings. These applications show mixed results for each CPU cooler and give us the final performance insight. This way, we narrow down the list, finally providing you with the Best LGA 1700 CPU Coolers out there.
Why Trust Tech4Gamers?
With over a decade of experience in the tech area, Tech4Gamers has grown into a powerful team of experts who give its readers the best through their research, reviewing, and writing talents. MSI, Deepcool, Asus, Gigabyte, Intel, AMD, and a slew of other companies have named us a Trusted Source for Hardware and Technology.
Based on our comprehensive study and analysis, we at Tech4Gamers have always sought what is best for ourselves and our consumers. Consequently, we’re putting up a site with the help of skilled writers and reviewers where customers can put their faith in us when it comes to designing their ideal gaming PCs.
Frequently Asked Questions
LGA 1700 is a CPU socket that replaces LGA 1200. It features 1700 pins that make contact with the processor pads. It contains 500 more pins than its predecessor; the LGA 1700 socket is 7.5mm longer than the LGA 1200 socket.
LGA 1700 upgrade brackets are available depending on the Cooler you presently own. Go to your Cooler’s manufacturer’s website to see if LGA 1700 brackets are available for your Cooler. Otherwise, if your Cooler does not support upgrade kits, you will need to purchase a new cooler for your 12 generation Intel processor.
