RTX 4060 Ti Vs RX 6700 XT [Gaming Benchmarks 2023]

Welcome to an exploration of the dynamic showdown between the 16 GB RTX 4060 Ti vs RX 6700 XT. In this article, we’ll delve into an in-depth analysis of their architectural differences, specifications, and, most thrillingly, gaming benchmarks. By pitting these two graphics cards against each other, we aim to provide you with valuable insights to help you make an informed choice for your gaming rig.

Key Takeaways

• At its core, the RTX 4060 Ti employs the Ada Lovelace architecture, while the RX 6700 XT relies on the RDNA 2.0 architecture, laying the groundwork for their distinctive performances.
• When assessing gaming capabilities, the RX 6700 XT edges forward, boasting a marginal 0.6% increase in FPS performance compared to the RTX 4060 Ti.
• In the realm of power efficiency, the RTX 4060 Ti takes the lead with its significantly lower power consumption, showcasing a remarkable 23.6% advantage over the RX 6700 XT.
• Delving into thermal management, the RTX 4060 Ti maintains its position as a frontrunner, securing an 11% advantage in maintaining lower average temperatures when compared to the RX 6700 XT.

Comparison Table

Architectural Differences

1. Process Node: Starting off, the RTX 4060 Ti employs a 5nm process node, contrasting with the RX 6700 XT’s utilization of a 7nm process node.
2. Clock Speed: Moreover, the RTX 4060 Ti boasts a Base Clock of 2310 MHz and a Boost Clock of 2535 MHz, while the RX 6700 XT offers a Base Clock of 2321 MHz and a Boost Clock of 2581 MHz.
3. VRAM: Additionally, armed with 16GB GDDR6 VRAM, the RTX 4060 Ti surpasses the RX 6700 XT, which carries 12GB of GDDR6 VRAM.
4. TDP: Furthermore, the RTX 4060 Ti carries a power-efficient 165W TDP, diverging from the RX 6700 XT’s higher 230W TDP.
5. Supported Technologies: Finally, distinguishing itself, the RTX 4060 Ti introduces DLSS technology, while the RX 6700 XT integrates FSR technology into its arsenal.

Also Read: RTX 4060 Ti Vs RTX 2080 Ti

RTX 4060 Ti (16GB) Vs RX 6750 XT: Gaming Benchmarks

Get ready to delve into the exciting domain of gaming benchmarks as we dissect the head-to-head performance of the RTX 4060 Ti and RX 6700 XT. We’ve patiently tested these cards across various games to provide insights into their FPS, power consumption, thermal management, and 1% low performance.

Testing Rig

Here are the specs of the testing rig:

• CPU: AMD Ryzen 7800X3D
• Motherboard: Aorus B650 Elite AX
• Memory: G.Skill Trident Z5 NEO RGB Series 32GB DDR5 6000
• Power Supply: Seasonic PX-850 Platinum
• CPU Cooler: NZXT Kraken X73 RGB
• Storage Drive: Crucial P3 Plus 4TB
• Operating System: Windows 10 Pro

Note: Performance benchmarks serve as valuable tools for evaluating the capabilities of graphics cards, offering insights into their gaming potential. However, external factors can significantly influence the outcomes and should be taken into consideration when interpreting the results.

Similar Comparison: RTX 4060 Ti Vs RX 6750 XT

Let’s waste no time and dive straight into the TX 4060 Ti vs RX 6700 XT benchmarks.

The Last Of Us Part I

• When assessing average FPS, the RX 6700 XT demonstrates solid performance with 78 FPS, edging out the RTX 4060 Ti’s 75 FPS, showcasing a variance of 3.9%.
• The RTX 4060 Ti’s thermal performance shines, maintaining an impressive average temperature of 58°C, showing a substantial 14.4% difference from the RX 6700 XT’s average temperature of 67°C.
• Examining power efficiency, the RTX 4060 Ti demonstrates efficient energy usage at 141W, revealing a substantial 30.6% variance from the RX 6700 XT’s consumption of 192W.
• In the realm of 1% low performance, the RX 6700 XT firmly establishes its lead with an impressive performance of 60 FPS, surpassing the RTX 4060 Ti’s 63 FPS by 4.8%.

Similar Read: RTX 4060 Ti Vs RX 6600

Diablo IV

• In the realm of average FPS, the RX 6700 XT exhibits robust performance with 171 FPS, only slightly surpassing the RTX 4060 Ti’s 170 FPS, resulting in a minor 0.5% difference.
• In the domain of thermal management, the RTX 4060 Ti demonstrates excellence, maintaining an average temperature of 60°C, resulting in a modest 4.8% variance from the RX 6700 XT’s average temperature of 63°C.
• When delving into power consumption, the RTX 4060 Ti operates at 152W, showcasing a significant 20.1% difference from the RX 6700 XT’s consumption of 186W.
• When considering 1% low performance, the RX 6700 XT maintains its dominance, achieving a performance of 132 FPS, outperforming the RTX 4060 Ti’s 146 FPS by 10%.

Hogwarts Legacy

• The RX 6700 XT showcases its gaming prowess with a commendable 91 FPS in average FPS, outperforming the RTX 4060 Ti’s 85 FPS by a noticeable 6.8% margin.
• The RTX 4060 Ti distinguishes itself in thermal efficiency, with an average temperature of 54°C, reflecting a significant 20% difference from the RX 6700 XT’s average temperature of 66°C.
• The RTX 4060 Ti excels in power efficiency, operating at a mere 138W, reflecting a notable 28.5% difference from the RX 6700 XT’s consumption of 184W.
• Focusing on 1% low performance, the RX 6700 XT showcases its strength with a performance of 45 FPS, falling behind the RTX 4060 Ti’s 46 FPS by a marginal 2.1%.

Also Read: RTX 4060 Ti Vs RTX 3060

Star Wars Jedi Survivor

• Studying average FPS evaluations reveal the RX 6700 XT’s competitive edge with 80 FPS, while the RTX 4060 Ti delivers 84 FPS, reflecting a performance difference of 4.8%.
• Thermal performance is a strong suit of the RTX 4060 Ti, maintaining an average temperature of 63°C, showcasing a modest 4.6% variance from the RX 6700 XT’s average temperature of 66°C.
• Power efficiency is a standout trait of the RTX 4060 Ti, drawing only 161W, marking an 18.5% difference from the RX 6700 XT’s consumption of 194W.
• The RX 6700 XT continues its lead in 1% low performance, attaining a performance of 57 FPS, outmatching the RTX 4060 Ti’s 62 FPS by 8.4%.

Resident Evil 4 Remake

• In terms of average FPS, the RX 6700 XT presents a formidable 120 FPS, barely falling behind the RTX 4060 Ti’s performance at 121 FPS, showcasing a minor 0.8% difference.
• The RTX 4060 Ti showcases its thermal prowess with an average temperature of 60°C, marking a 12.5% difference from the RX 6700 XT’s average temperature of 68°C.
• The RTX 4060 Ti stands out with its power efficiency, consuming only 161W, showcasing an 18% difference from the RX 6700 XT’s consumption of 193W.
• In terms of 1% low performance, the RX 6700 XT lags behind with a performance of 85 FPS, slightly getting overshadowed by the RTX 4060 Ti’s 87 FPS by 2.3%.

Similar Read: RTX 4060 Ti Vs RTX 3080

God Of War

• The RX 6700 XT boasts impressive average FPS performance at 97 FPS, slightly outmatching the RTX 4060 Ti’s 92 FPS, revealing a 5.2% variance.
• In terms of thermal efficiency, the RTX 4060 Ti impresses with an average temperature of 58°C, showing a notable 11.3% difference from the RX 6700 XT’s average temperature of 65°C.
• When it comes to power consumption, the RTX 4060 Ti operates at 151W, demonstrating a 24.9% difference from the RX 6700 XT’s consumption of 194W.
• The RX 6700 XT maintains its advantage in 1% low performance, achieving a performance of 74 FPS, showcasing a lead of 15% over the RTX 4060 Ti’s 86 FPS.

Also Read: RX 6700 XT Vs RTX 3070

Battlefield 2042

• Analyzing average FPS, the RX 6700 XT takes the lead with 128 FPS, while the RTX 4060 Ti follows closely with 120 FPS, resulting in a 6.4% performance difference.
• Maintaining a competitive edge in thermal management, the RTX 4060 Ti achieves an average temperature of 59°C, showcasing an 8.1% difference from the RX 6700 XT’s average temperature of 64°C.
• Power efficiency takes center stage with the RTX 4060 Ti, drawing a modest 137W, resulting in a 23.7% difference from the RX 6700 XT’s consumption of 174W.
• Looking at 1% low performance, the RX 6700 XT remains strong with a performance of 86 FPS, slightly falling behind the RTX 4060 Ti’s 87 FPS by 1.1%.

Similar Comparison: RTX 4060 Ti Vs RTX 3070

Call Of Duty Modern Warfare 2

• When it comes to average FPS comparison, depict the RX 6700 XT’s strength with 114 FPS, slightly surpassing the RTX 4060 Ti’s 112 FPS, indicating a modest 1.7% performance difference.
• The RTX 4060 Ti excels in thermal performance, maintaining an average temperature of 55°C, resulting in a significant 21.1% variance from the RX 6700 XT’s average temperature of 68°C.
• The RTX 4060 Ti’s power optimization is evident, consuming 134W, marking a substantial 28.7% difference from the RX 6700 XT’s consumption of 179W.
• When it comes to 1% low performance, the RX 6700 XT demonstrates its prowess with a performance of 83 FPS, maintaining a lead of 2.3% over the RTX 4060 Ti’s 85 FPS.

Red Dead Redemption 2

• The RX 6700 XT showcases its gaming prowess with 95 FPS in average FPS performance, while the RTX 4060 Ti delivers 99 FPS, reflecting a difference of 4.1%.
• Thermal efficiency is a standout feature of the RTX 4060 Ti, with an average temperature of 58°C, reflecting an 11.3% difference from the RX 6700 XT’s average temperature of 65°C.
• In terms of power efficiency, the RTX 4060 Ti operates at 149W, showcasing a 24.7% difference from the RX 6700 XT’s consumption of 191W.
• The RX 6700 XT’s advantage stops in 1% low performance, achieving a performance of 75 FPS, being outpaced by the RTX 4060 Ti’s 77 FPS by 2.6%.

Also Read: RTX 4060 Ti vs RTX 3070 Ti

A Plague Tale Requiem

• When evaluating average FPS, the RX 6700 XT excels with 80 FPS, while the RTX 4060 Ti trails with 79 FPS, showcasing a slight 1.2% variance.
• The RTX 4060 Ti’s thermal proficiency is evident with an average temperature of 62°C, showcasing a minor 3.1% difference from the RX 6700 XT’s average temperature of 64°C.
• Power management is a strength of the RTX 4060 Ti, consuming 159W, demonstrating a 19.3% difference from the RX 6700 XT’s consumption of 193W.
• In the domain of 1% low performance, the RTX 4060 Ti showcases its strength with a performance of 65 FPS, slightly surpassing the RX 6700 XT’s 63 FPS by 3.1%.

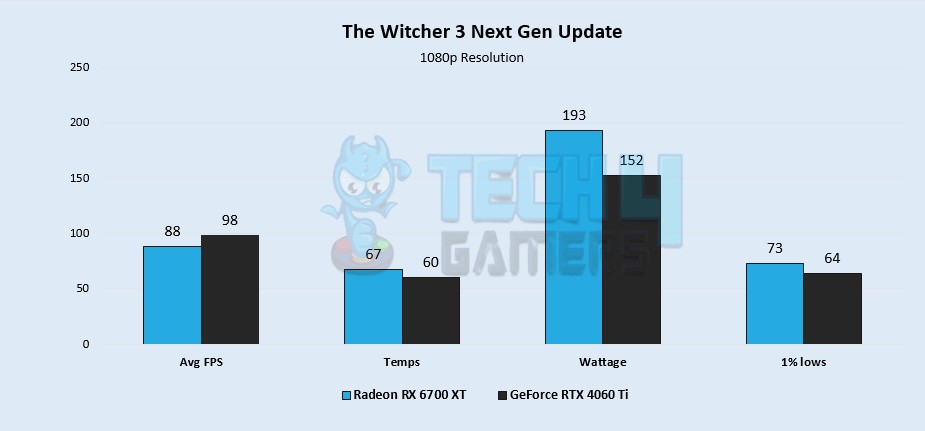

The Witcher 3 Next Gen Update

• Going over FPS analysis highlights the RX 6700 XT’s strong performance at 88 FPS, while the RTX 4060 Ti delivers 98 FPS, underscoring a significant 10.7% performance difference.
• The RTX 4060 Ti displays commendable thermal performance, maintaining an average temperature of 60°C, demonstrating an 11% difference from the RX 6700 XT’s average temperature of 67°C.
• The RTX 4060 Ti showcases efficient power usage, operating at 152W, showcasing a notable 23.7% difference from the RX 6700 XT’s consumption of 193W.
• Focusing on 1% low performance, the RX 6700 XT maintains its dominance with a performance of 64 FPS, outperforming the RTX 4060 Ti’s 73 FPS by a substantial 13.1%.

Must Read: RX 6700 XT Vs RTX 3070 Ti

Overall Gaming Performance

As we delve into the gaming benchmarks, let’s kick things off by examining the average FPS performance of the RTX 4060 Ti and RX 6700 XT. This important metric offers a glimpse into their gaming prowess across various titles. This will allow us to uncover which GPU excels in specific gaming scenarios, ultimately guiding you toward the right choice for your gaming rig.

• In the realm of gaming performance, the RX 6700 XT showcases a slight edge in both average FPS and 1% lows, engaging in fierce competition with the RTX 4060 Ti.
• With its average FPS of 103.8, the RX 6700 XT outpaces the RTX 4060 Ti’s average FPS of 103.1, showcasing a marginal difference.
• The RX 6700 XT emerges as the frontrunner with a narrow 0.6% lead over the RTX 4060 Ti in terms of FPS, highlighting its competitive gaming capabilities.

Another Comparison: RTX 4070 Vs RX 6700 XT

Average Power Consumption

Efficiency is key in gaming GPUs, and that’s where the average power consumption comes into play. We’ll show how effectively these cards balance performance and energy consumption by comparing the power draw of the RTX 4060 Ti vs RX 6700 XT. As we delve into the power consumption benchmarks, you’ll gain insights into which GPU delivers impressive gaming performance without putting excessive strain on your power supply.

• The RTX 4060 Ti confidently asserts its supremacy over the RX 6700 XT, showcasing a remarkable prowess in gaming performance and efficiency.
• In terms of power consumption, the RX 6700 XT draws 148.6W, while the RTX 4060 Ti operates at 188.4W, demonstrating a fine balance between power and performance.
• With a substantial 23.6% power efficiency advantage, the RTX 4060 Ti stands out as a leader in outperforming the RX 6700 XT, offering a blend of high-performance capabilities and energy-conscious design.

Similar Read: RX 6700 XT Vs RX 6750 XT

Average Thermal Statistics

Thermal management is a crucial aspect of any gaming setup, ensuring your components stay within optimal temperature ranges. In our analysis of the average thermal statistics of the RTX 4060 Ti vs RX 6700 XT comparison, we’ll explore how well these GPUs handle the heat during intensive gaming sessions.

These statistics will not only provide an indication of cooling efficiency but also help you make informed decisions about your system’s cooling solutions.

• Beginning with thermal management, the RTX 4060 Ti triumphs over the RX 6700 XT, showcasing superior temperature control for optimal performance.
• Furthermore, maintaining an impressive average temperature of 58.8°C, the RTX 4060 Ti outperforms the RX 6700 XT’s average temperature of 65.7°C, ensuring stable and efficient gaming sessions.
• The RTX 4060 Ti sets a notable benchmark by displaying an 11% improvement in thermal efficiency, highlighting its ability to maintain lower temperatures during demanding tasks and pushing the boundaries of performance.

Also Read: AMD RX 6700 XT Vs Nvidia RTX 3060

Pricing And Availability

When it comes to the financial aspect of choosing a graphics card, pricing plays a pivotal role in the decision-making process. The Radeon RX 6700 XT is notably positioned at a price point of approximately 340 USD on platforms like Newegg, making it an appealing option for budget-conscious gamers seeking competitive performance.

On the other hand, the RTX 4060 Ti arrives with an MSRP of 499 USD, positioning itself in a slightly higher price bracket. This significant price difference of 37.9% between the two cards prompts a closer examination of their performance, features, and value proposition to determine whether the investment aligns with your gaming preferences and budget.

With fluctuations in stock and demand, securing the GPU of your choice can be a challenge. It’s essential to consider not only the initial price but also the feasibility of obtaining the card at that price. Availability issues may also impact pricing dynamics, influencing your final decision.

Another Comparison: RX 6700 XT Vs RTX 3060 Ti

RX 6700 XT Vs RTX 4060 Ti (16GB): Which One To Buy?

• Positioned as the more budget-friendly option, the RX 6700 XT presents a significant 37.9% cost advantage over the RTX 4060 Ti, all while offering a slight 0.6% edge in FPS performance.
• The RTX 4060 Ti showcases its supremacy by boasting a substantial 23.6% power efficiency advantage over the RX 6700 XT, making it an energy-efficient choice. The RTX 4060 Ti also maintains an impressive 11% lead in temperature control.
• While the RX 6700 XT stands out with its impressive FPS performance and cost-effectiveness, the RTX 4060 Ti takes the lead in thermal control and power efficiency, offering a comprehensive blend of features for gaming enthusiasts.

Also Read: Radeon RX 6700 XT Vs GeForce RTX 3080

Pros And Cons
