- Factory settings push extra voltage for tiny performance gains, often causing unnecessary power draw and overheating.
- Reducing the power target by 15% significantly reduces overall wattage while losing less than 3% in real-world framerates.
- Capping the peak voltage keeps stock boost clocks stable while drastically reducing total power draw.
- Ensuring 12V-2×6 connectors click properly into place and that there are no twists in cables ensures less thermal strain.
The arrival of flagship graphics cards always brings massive performance leaps. Recent generations, however, have pushed system power demands into unprecedented territory. Pushing high frame rates at 4K with full path tracing requires immense wattage, and managing that power draw is as important as raw shading power. High power consumption generates extreme heat and places a heavy load on power supply connectors. This leads to widespread concern among PC gamers regarding cable durability and thermal management.
Taming a top-tier flagship does not mean sacrificing its performance potential. With targeted power limits, intelligent undervolting, and proper cable installation, power draw and operational temperatures can be minimized.
Understanding The Issue
Modern high-end graphics cards like the RTX 5090 operate at extremely aggressive boost algorithms straight out of the box. These GPUs automatically push voltage and clock frequencies as far as the thermal headroom allows. They often chase the final three to five percent of performance at the expense of exponential power increases.
When a GPU draws high wattage over prolonged gaming sessions, many issues arise. Extreme transient power spikes may occur, forcing power supplies to work harder. It may also cause high thermal output, leading to fans running at maximum speed. Increased electrical resistance at connections may also occur if cables are not fitted properly or are bent excessively. Addressing these factors requires managing how much power the GPU requests at peak gaming workloads.
The Power Limit Solution
The easiest and most effective way to curb excessive energy consumption is by adjusting the GPU’s power limit using software like MSI Afterburner. Out-of-the-box flagships run far along the diminishing returns curve. Pushing a graphics card to its maximum power limit yields minor frame rate increases while dramatically increasing power draw and thermals.
By dropping the power target to eighty or eighty-five percent of its stock limit, the total power consumption can be reduced significantly. As modern boost algorithms are highly efficient, reducing the power cap by 15% typically results in less than a 3% drop in real-world gaming frame rates. In this case, the GPU operates much closer to its architectural sweet spot, which results in cooler overall operation and less stress on power delivery components.
Undervolting Helps

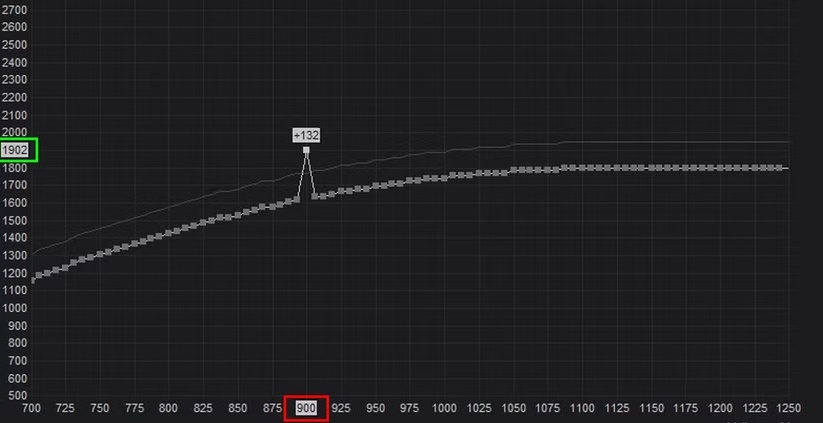

While lowering the power limit sets a hard ceiling on overall wattage, undervolting optimizes the relationship between clock speed and voltage across the entire frequency curve. Stock Voltage/Frequency curves are conservatively tuned during manufacturing to ensure that all GPU’s remain stable and consistent performance can be delivered. This means that the GPU receives more voltage than it needs to maintain high boost clocks.
Through systematic testing, you can lock the GPU to its target boost clock while limiting the extra voltage provided. Successful undervolting resolves many issues, such as dropping board power from tens to around a hundred watts, keeping thermals to a minimum, and allowing fans to run quieter. It also helps maintain near-stock or identical gaming performance while drawing less power.
Running the card at a lower, stable voltage prevents unnecessary power consumption. Extra power to the chip may damage internal components and reduce its overall lifespan for a performance boost many don’t even notice. In using lower voltage, heavy path-traced games can run more efficiently, while keeping connector temperatures well within safe margins.
Cable Safety and Proper Installation
Software tuning handles electrical workloads, but physical installation and hardware maintenance and care are also equally important. This remains highly true when dealing with modern high-wattage 12V-2×6 or 12VHPWR power connectors. Modern power cables are designed to handle high current but demand proper care and precise handling during system assembly.

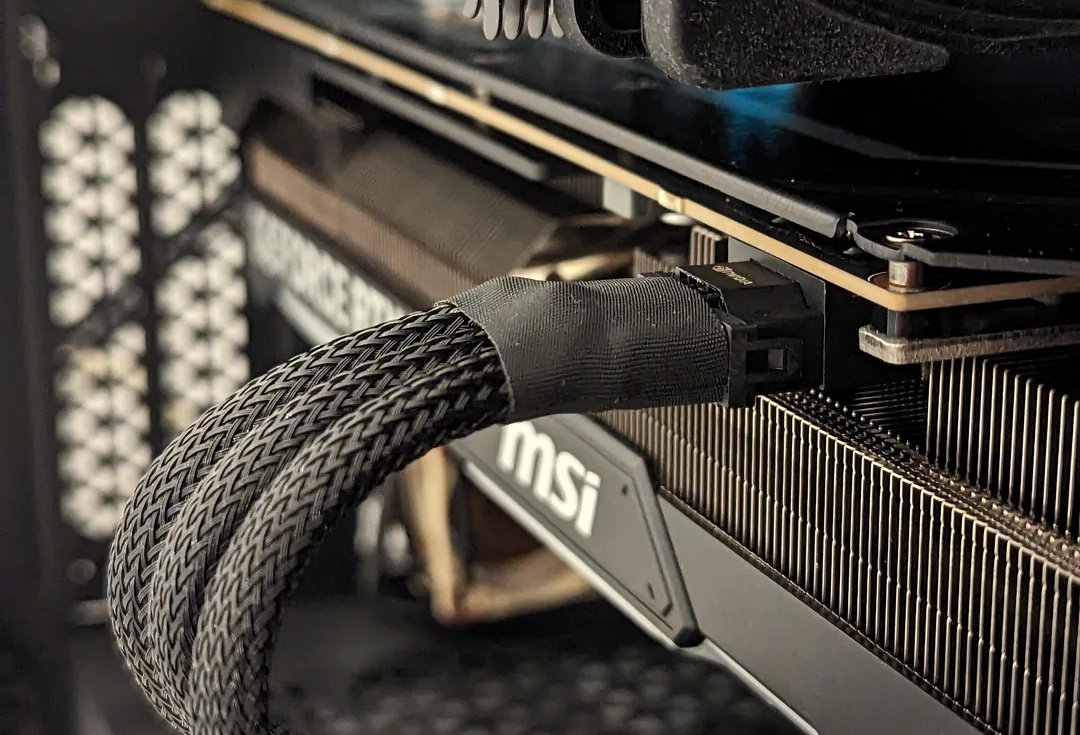

Thus, keeping these cables well managed is mandatory to keep issues away. Ensuring the power connector is properly seated until the latch clicks into place ensures no sparks or power issues occur later. Usually, new PC builders cram all the wires into the chassis without checking for any bends. Ensuring that the cable doesn’t bend close to the connector and runs atleast 35-40mm after it is mandatory.
Additionally, players and enthusiasts should avoid using third-party cables that don’t match the voltage requirements. Proper installation combined with undervolting allows the overall system to run cooler and be much more efficient.
Final Thoughts
Taming a flagship graphics card is not about choking its potential but rather about refining its operation. Stock settings prioritize benchmark victories over real-world performance, but with a few tweaks, you can transform a high-power GPU into a refined and manageable centerpiece. By taking the appropriate steps, the result is a system that delivers top-tier 4K performance while running cooler, quieter, and safer for years to come.
