RX 6650 XT Vs RTX 3060 Ti [Gaming Benchmarks 2023]

Consumers have shifted their attention to the latest generation of cards from AMD and Nvidia, but it is important to remember the great offerings from the previous generation. In the RX 6650 XT vs RTX 3060 Ti comparison, we will delve into the differences between these two cards, ultimately concluding which card suits your gaming needs.

Key Takeaways

• The RTX 3060 Ti had about 6% better performance than the RX 6650 XT in our gaming tests.
• The RX 6650 XT consumed about 28% more power than the RTX 3060 Ti.
• There is about a 17% difference in price between these two cards, with the RX 6650 XT being cheaper.

RX 6650 XT Vs RTX 3060 Ti

Comparison Table

Architectural Differences

• Processing Size: The NVIDIA RTX 3060 Ti is based on the GA104 GPU, manufactured using an 8nm process size. In contrast, the Radeon RX 6650 XT utilizes the Navi 23 GPU, fabricated on a 7nm process size. The smaller process size generally indicates better power efficiency and potential for higher performance.
• Bus Width: The RTX 3060 Ti has a wider bus width of 256-bit, allowing for faster data transfer between the GPU and VRAM. On the other hand, the Radeon RX 6650 XT has a narrower bus width of 128-bit, which may impact its memory bandwidth and overall performance.
• VRAM: Both the RTX 3060 Ti and Radeon RX 6650 XT feature 8GB of GDDR6 VRAM.
• TDP: The TDP (Thermal Design Power) of the RTX 3060 Ti is around 200W. In comparison, the Radeon RX 6650 XT has a lower TDP of 176W.
• Clock Speeds: The RTX 3060 Ti has a base clock of 1410MHz, with a boost clock going up to 1665MHz. The Radeon RX 6650 XT, on the other hand, has a higher base clock of 2055MHz and a higher boost clock of 2635MHz.
• Other Features: Both the RTX 3060 Ti and the RX 6650 XT support AI and ray tracing capabilities, though the implementation of both is better on the RTX 3060 Ti.

Also Read: RX 6650 XT Vs RTX 3060

RTX 3060 Ti Vs RX 6650 XT: Gaming Benchmarks

After examining the architectural distinctions between the two cards, in this section of the RX 6650 XT vs RTX 3060 Ti comparison, we will assess the real-world gaming performance of each of these cards. These tests were conducted in a controlled environment using a designated test bench, and the specifications of the test bench are outlined below:

• OS – Windows 10 Pro
• CPU – Core i9-12900K
• MOBO – MSI MPG Z690 Force 32Gb
• RAM – DDR5 5200Mhz
• CPU Cooler – be quiet! Dark Rock Pro 4
• SSD – 2xSAMSUNG 970 EVO M.2 2280 1TB
• PSU – CORSAIR RM850i 850W

These tests were done utilizing the 1080p resolution.

Forza Horizon 5

• In the first game of our testing, the RX 6650 XT achieved an average of 97 FPS, while the RTX 3060 Ti performed slightly better with an average of 106 FPS.
• During demanding gameplay moments, the RX 6650 XT had 1% lows of 74 FPS, whereas the RTX 3060 Ti performed slightly better with 1% lows of 81 FPS.
• Coming to power consumption, the RX 6650 XT took 142 watts from the wall. The RTX 3060 Ti drew significantly more power at about 191 watts.
• These GPUs were neck and neck in terms of temperatures as well, with the RX 6650 XT operating at an average temperature of 61°C and the RTX 3060 Ti at 60°C.

Also Read: RX 7600 Vs RTX 3060 Ti

Hitman 3

• In Hitman 3, these cards maintained the same performance pattern as we saw in the previous game. The RX 6650 XT delivered an average of 146 FPS, while the RTX 3060 Ti performed slightly better with an average FPS of 151.
• The RX 6650 XT had 1% lows of 118 FPS, whereas the RTX 3060 Ti performed slightly better with 1% lows of 123 FPS. The difference in performance for this metric is almost negligible.
• Coming to power consumption, the RX 6650 XT drew 145 watts, while the RTX 3060 Ti surpassed this with a power consumption of 192 watts.
• Turning our attention to temperature, the RX 6650 XT operated on average around 66°C, while the RTX 3060 Ti stayed cooler with a temperature around 59°C.

Similar Comparisons: ARC A770 vs RTX 3060 Ti

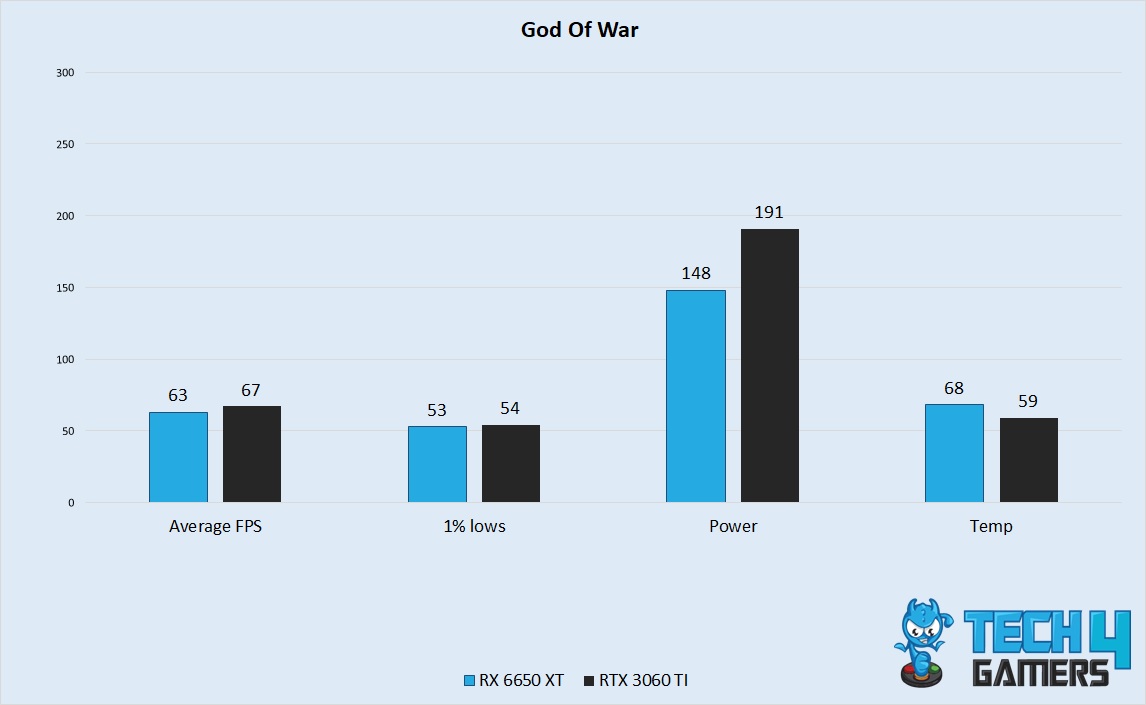

God Of War

• In God of War, the RX 6650 XT achieved an average of 63 FPS, while the RTX 3060 Ti performed slightly better with an average of 67 FPS.
• During demanding gameplay moments, the RX 6650 XT had 1% lows of 53 FPS, whereas the RTX 3060 Ti had slightly better 1% lows of 54 FPS.
• The RX 6650 XT had a power consumption of 148 watts in this title, whereas the RTX 3060 Ti had a higher power target of 191 watts.
• When it comes to temperature, the RX 6650 XT operated at an average temperature of 68°C, while the RTX 3060 Ti stayed relatively cool at a temperature of 59°C.

Also Read: RTX 3060 Ti Vs RTX 3070

Dying Light 2

• In Dying Light 2, the RX 6650 XT delivered an average of 76 FPS, while the RTX 3060 Ti showcased significantly better performance with an average of 81 FPS.
• The RX 6650 XT had 1% lows of 67 FPS, whereas the RTX 3060 Ti had slightly higher 1% lows of 71 FPS in Dying Light 2.
• Coming to power consumption, the RX 6650 XT consumed 145 watts, while the RTX 3060 Ti utilized significantly more power at 193 watts.
• Turning our attention to temperature, the RX 6650 XT operated at an average temperature of 63°C, while the RTX 3060 Ti maintained a lower temperature of 58°C.

Also Read: RTX 3060 Vs 3060 Ti

Horizon Zero Dawn

• In Horizon Zero Dawn, the RX 6650 XT achieved an average of 90 FPS, while the RTX 3060 Ti had a slightly lower average of 81 FPS.
• During demanding gameplay moments, the RX 6650 XT maintained 1% lows of 66 FPS, whereas the RTX 3060 Ti exhibited slightly higher 1% lows of 68 FPS.
• Coming to the topic of power consumption, the RX 6650 XT drew 152 watts, while the RTX 3060 Ti utilized more power at 192 watts.
• Regarding temperature, the RX 6650 XT operated at an average temperature of 61°C, while the RTX 3060 Ti maintained a similar temperature of 60°C.

Also Read: RX 6750 XT Vs RTX 3060 Ti

Cyberpunk 2077

• In Cyberpunk 2077, the RTX 3060 Ti outperformed the RX 6650 XT in terms of average FPS. The RTX 3060 Ti achieved an average of 71 FPS, while the RX 6650 XT had a slightly lower average of 62 FPS.
• During demanding gameplay moments, the RTX 3060 Ti also showcased higher 1% lows with 58 FPS compared to the RX 6650 XT’s 53 FPS.
• For power consumption, the RX 6650 XT consumed 147 watts, whereas the 3060 Ti drew a more power, around 189 watts.
• Regarding temperature, the RX 6650 XT operated at an average temperature of 64°C, while the RTX 3060 Ti maintained a slightly lower temperature of 59°C.

More From RTX 3060 Ti: RX 6700 XT Vs RTX 3060 Ti

Red Dead Redemption 2

• In Red Dead Redemption 2, the RTX 3060 Ti outperformed the RX 6650 XT in terms of average FPS. The RTX 3060 Ti achieved an average of 74 FPS, while the RX 6650 XT had a slightly lower average of 68 FPS.
• During demanding gameplay moments, the RTX 3060 Ti also showcased higher 1% lows with 58 FPS compared to the RX 6650 XT’s 53 FPS.
• In regard to power consumption, the RX 6650 XT consumed 149 watts, whereas the RTX 3060 Ti utilized more power at about 192 watts.
• Regarding temperature, the RX 6650 XT operated at an average temperature of 64°C, while the RTX 3060 Ti maintained a slightly lower temperature of 58°C.

Also Read: RX 5700 XT Vs RTX 3060 Ti

PUBG

• In PUBG, the RTX 3060 Ti outperformed the RX 6650 XT in terms of average FPS. The RTX 3060 Ti achieved an average of 179 FPS, while the RX 6650 XT had a slightly lower average of 167 FPS.
• During intense gameplay moments, the RTX 3060 Ti also exhibited higher 1% lows with 110 FPS compared to the RX 6650 XT’s 105 FPS.
• When it comes to power consumption, the RX 6650 XT consumed around 143 watts, whereas the RTX 3060 Ti took about 189 watts from the wall.
• Regarding temperature, the RX 6650 XT operated at an average temperature of 65°C, while the RTX 3060 Ti maintained a slightly lower temperature of 59°C.

Related: RTX 3060 Ti Vs. RTX 3070 Ti

Days Gone

• In Days Gone, the RTX 3060 Ti performed better than the RX 6650 XT in terms of average FPS. The RTX 3060 Ti achieved an average of 121 FPS, while the RX 6650 XT had a slightly lower average of 112 FPS.
• Both graphics cards had the same 1% lows of 70 FPS, indicating consistent performance during demanding moments in the game.
• Regarding power consumption, the RX 6650 XT utilized 149 watts of power, while the RTX 3060 Ti consumed a higher power of 194 watts.
• Regarding temperature, the RX 6650 XT ran hot at a temperature of around 66°C, while the RTX 3060 Ti maintained a relatively lower temperature of 58°C.

Also Read: RTX 3060 Ti vs RTX 2070 Super

Microsoft Flight Simulator

• In Microsoft Flight Simulator, the RTX 3060 Ti outperformed the RX 6650 XT in terms of average FPS. The RTX 3060 Ti achieved an average of 69 FPS, while the RX 6650 XT had a lower average of 58 FPS.
• Both graphics cards had similar 1% lows, with the RTX 3060 Ti recording slightly higher 1% lows of 60 FPS, compared to the RX 6650 XT’s 52 FPS.
• Coming to wattage, the RX 6650 XT drew about 147 watts, while the RTX 3060 Ti used significantly more power at around 191 watts.
• Regarding temperature, the RX 6650 XT operated at an average temperature of 64°C, while the RTX 3060 Ti maintained a slightly lower temperature of 60°C.

Also Check: RX 7600 Vs RX 6650 XT

Overall Gaming Performance

Having discussed the performance of these cards on a per-game basis, in this section of the RX 6650 XT vs RTX 3060 Ti comparison, we will look at the average of several metrics of these cards throughout our gaming tests.

Framerate

• On average, the RX 6650 XT had an average of 94 FPS, whereas the RTX 3060 TI had an average FPS of 100 FPS. This difference is about 6% in favor of the RTX 3060 Ti.
• The disparity in performance shrank between the two cards when 1% lows were involved. The RTX 3060 Ti had average 1% lows of 83 FPS, whereas the RX 6650 XT had average 1% lows of 80 FPS.

Overall, we have to say the performance difference between these two cards does not justify the price difference between the two cards. The RX 6650 XT is about 17.3% cheaper than the RTX card while being slightly slower.

It is also important to note that the performance results of this our tests were done without DLSS or ray tracing, and if these metrics were taken into account, the RTX 3060 Ti would handily beat the AMD card in terms of performance.

If you want to get as much performance out of your graphics card as possible, we highly recommend you check out the best GPU overclocking software.

Power

• The RX 6650 XT consumed about 149 watts on average.
• The RTX 3060 Ti average a wattage in the neighborhood of 191 watts.

There was a 28% difference in power, with the RX 6650 XT being much more power efficient.

The lower power consumption of the AMD card might benefit consumers in another way as well. The smaller power draw of the 6650 XT will allow you to get away with using a smaller power supply, which can reduce the cost of the RX 6650 XT further.

Take a look at how many watts a gaming PC consumes if you are planning to get a suitable power supply for your gaming system.

Temperatures

• The RTX 3060 Ti had an average temperature of 59°C.
• Temperatures were much higher on the RX 6650 XT, with an average peak of 64.4°C.

Though the temperatures were much higher on the RX 6650 XT, the card still remained within the safe temperature range. There is still no denying that the lower temperatures on the RTX 3060 Ti have benefits such as better longevity and more headroom for overclocking.

Idle temperatures indicate the overall health of a graphics card very effectively. Take a look at our guide on safe GPU idle temperatures to make sure you understand the thermal situation of your graphics card.

Price And Availability

The RX 6650 XT goes for about $230 on eBay, whereas the RTX 3060 Ti goes for about $270. Note that you can find these GPUs for a higher or lower price while surfing the used market.

These cards should be available at any retail computer parts store of your choosing and used and new online retailers like eBay and Newegg. We would recommend getting these cards from anywhere but the used market due to their age.

Check out our valuation guide if you want to estimate the cost of any computer part you wish to sell or purchase.

RX 6650 XT Vs RTX 3060 Ti: Which One Should You Go For?

Having discussed the price and performance of these cards in different metrics, in this section of the RX 6650 XT vs RTX 3060 Ti comparison, we will highlight the demographic for each of these graphics cards.

Starting with the weaker of the bunch, the RX 6650 XT. This GPU was a powerhouse for entry-level gaming when it was released, and it still holds up with its competition.

It offers reasonable performance at a great price, the likes of which we cannot expect from cards of the current generation. Because of these reasons, we would recommend the RX 6650 XT to gamers on a budget looking for a cheap, capable, and power-efficient card.

Now, let’s turn our attention to the more performant card in this comparison, the RTX 3060 Ti. This card has aged gracefully, delivering excellent 1080p performance at an attractive price point.

On top of that, it incorporates support for ray tracing and DLSS, two features that can significantly enhance your gaming experience. For these compelling reasons, we highly recommend the RTX 3060 Ti to anyone in search of a feature-rich card that delivers exceptional performance.

More From 6650 XT: RTX 2070 Vs RX 6650 XT

Pros And Cons
