RTX 3060 Ti vs RTX 2070 Super: Gaming Comparison

RTX 3060 Ti vs NVIDIA GeForce RTX 2070 Super: GPU Comparison to find which is the best across 1080p, 1440p, and 4K resolutions.

NVIDIA will soon be releasing their latest GeForce 40 series cards which is the anticipated successor to the GeForce 30 series. It is good to know how much NVIDIA was able to improve their technology between their GeForce 30 and GeForce 20 series to know how much performance increase we can expect from the new GeForce 40 series. But with that said, in this RTX 3060 Ti vs RTX 2070 Super comparison, we’ll be comparing two graphics cards of different GeForce generations to find which is a better choice when buying a new GPU.

Also read: Core i5 12600K vs Ryzen 7 5800x

RTX 3060 Ti Specifications

  • Graphic Engine: NVIDIA® GeForce RTX™ 3060 TI
  • Bus Standard: PCI Express 4.0
  • OpenGL: OpenGL®4.6
  • Video Memory: 8GB GDDR6
  • Engine Clock: OC Mode – 1740 MHz (Boost Clock) Gaming Mode – 1710 MHz (Boost Clock)
  • CUDA Core: 4864
  • Memory Speed: 14 Gbps
  • Memory Interface: 256-bit
  • Resolution: Digital Max Resolution 7680 x 4320
  • Interface: Yes x 2 (Native HDMI 2.1), Yes x 3 (Native DisplayPort 1.4a), HDCP Support Yes (2.3)
  • Maximum Display Support: 4
  • NVlink/ Crossfire Support: No
  • Dimensions: 10.56 ” x 5.35 ” x 2.05 ” Inch
  • Recommended PSU: 750W
  • Power Connectors: 1 x 8-pin
  • Slot: 2.7 Slot

AURA SYNC: RGB

RTX 2070 Super Specifications

  • Model Name: GeForce RTX 2070 SUPER™ GAMING X
  • Graphics Processing Unit: NVIDIA® GeForce® RTX 2070 SUPER™
  • Interface: PCI Express x16 3.0
  • Cores Clocks: Boost: 1800 MHz
  • CUDA® Cores: 2560 Units
  • Memory Speed: 14 Gbps
  • Memory: 8GB GDDR6
  • Memory BUS: 256-bit
  • Output
  • DisplayPort x 3 (v1.4a)
    HDMI x 1(Supports 4K@60Hz as specified in HDMI 2.0b)
  • HDCP Support: 2.2
  • Power Consumption: 215W
  • Power Connectors: 6-pin x 1 / 8-pin x 1
  • Recommended PSU: 650W
  • Card Dimension (MM): 297 x 143 x 56 mm
  • Weight (CARD / PACKAGE): 1421g / 1969g
  • DIRECTX Version Support: 12 API
  • OpenGL Version Support: 4.5
  • Multi-GPU Technology: NVIDIA® NVLink™ (SLI-Ready), 2-way
  • Maximum Displays: 4
  • VR Ready: Yes
  • G-SYNC® Technology: Yes
  • Adaptive Vertical Sync: Yes
  • Digital Maximum Resolution: 7680 x 4320

RTX 3060 Ti Background

NVIDIA’s high-end gaming graphics card list cannot be completed without the mention of the NVIDIA GeForce RTX 3060 Ti, at least for now. Launched in December 2022 at a price of $399, the NVIDIA GeForce RTX 3060 Ti is a true gaming beast with high core clock speeds, along with DLSS and raytracing technology.

Other Comparisons: RTX 2060 vs RTX 3060

NVIDIA GeForce RTX 3060 Ti is built on the Ampere architecture with its 8nm process allowing it to hold 17,400 million transistors within an area of 392 mm². It was marketed with its 8 GB VRAM and GDDR6 memory type along with a memory bus of 256 bits.

Talking about clock speeds, with the NVIDIA GeForce RTX 3060 Ti having a base clock of 1410 MHz which can be boosted up to 1665 MHz, it is packing enough performance in its individual cores.

Regarding gaming, it has the complete support of DirectX 12 Ultimate making it able to run all modern games as well as future upcoming ones. It also has support for other graphics features such as OpenGL 4.6, Vulkan 1.3, and CUDA 8.6.

Moreover, the rendering capabilities of the NVIDIA GeForce RTX 3060 Ti include 4864 shading units, 80 ROPs, 152 texture mapping units, as well an additional 152 Tensor Cores for improved artificial learning applications. It also has 128 KB L1 Cache, along with 4 MB worth of L2 Cache.

Lastly, the NVIDIA GeForce RTX 3060 Ti has an official maximum TDP rating of 200 W. It is also a dual-slot card which means it uses a 12-pin power connector to draw power from the PSU and is connected to the motherboard with the PCIe 4.0 x16 port. It also contains all modern display ports such as HDMI and DisplayPort.

RTX 2070 Super Background

The NVIDIA GeForce RTX 2070 Super will soon be two generations old as the new GeForce 40 series arrives, but that’s not to say it is outdated for modern games. In fact, the NVIDIA GeForce RTX 2070 Super is an extremely powerful GPU that will hold up for a long time at least for gaming at 1080p. The NVIDIA GeForce RTX 2070 Super, which went on sale in July 2019 for $499, is a powerful gaming GPU with high core clock speeds with the latest NVIDIA technology.

Speaking of clock rates, the NVIDIA GeForce RTX 2070 Super has a base clock of 1605 MHz and can be cranked up to 1770 MHz, so it has plenty of processing power.

Built with the Turing architecture, the NVIDIA GeForce RTX 2070 Super can fit 13,600 million transistors in a 545 mm² space thanks to its 12nm manufacturing process. It was advertised with 8 GB of VRAM, GDDR6 memory, and a 256-bit memory bus.

In terms of gaming, it is capable of running all current games as well as those that will be released in the future thanks to DirectX 12 Ultimate’s full support. Additionally, it supports additional graphics features like CUDA 7.5, OpenGL 4.6, and Vulkan 1.3.

Further, the NVIDIA GeForce RTX 2070 Super’s rendering capabilities include 2560 shading units, 64 ROPs, 160 texture mapping units, and an extra 320 Tensor Cores for better performance in artificial intelligence applications. In addition, it includes 4 MB of L2 Cache and 64 KB of L1 Cache.

Last but not least, the NVIDIA GeForce RTX 2070 Super features a 215 W official maximum TDP rating. It is also a dual-slot card, which means it connects to the motherboard through a PCIe 3.0 x16 connection and draws power from the PSU via both an 8-pin and a 6-pin power connector. Additionally, it has every contemporary display port, including HDMI, USB Type C, and DisplayPort.

Differences in Specification

When looking at the specifications of both GPUs, we can say that they’re very similar with regard to memory. They are, however, built on different architectures, and have different core clock speeds.

While the older 12nm Turing architecture was used in the making of NVIDIA GeForce RTX 2070 Super, the NVIDIA GeForce RTX 3060 Ti is built on the faster 8nm Ampere architecture. The RTX 2070 being a larger chip at 545 mm², is able to fit in 13,600 million transistors but is still surpassed by RTX 3060 Ti’s 17,400 million transistors based on a 392 mm² chip.

Both the NVIDIA GeForce RTX 3060 Ti and NVIDIA GeForce RTX 2070 Super are marketed with 8 GB worth of GDDR6 VRAM. Alongside that, the memory bus is 256-bit which is identical for both graphics cards.

While the NVIDIA GeForce RTX 3060 Ti has a base and boost clock of 1410 MHz and 1665 MHz respectively, the NVIDIA GeForce RTX 2070 Super is running on 1605 MHz for the base clock, and 1770 MHz, for the boost core clock speeds.

Comparing the shading units, the NVIDIA GeForce RTX 2070 Super has 2560 shaders, 160 TMUs, and 64 ROPs, along with 320 tensor cores as opposed to the NVIDIA GeForce RTX 3060 Ti, which has 4864 shaders, 152 TMUs, and 80 ROPs, as well as 152 tensor cores.

Lastly, the TDP is rated 200 W and 215 W for the NVIDIA GeForce RTX 3060 Ti and NVIDIA GeForce RTX 2070 Super respectively. That should have covered most of the differences and similarities in the specifications of both GPUs. With that said, let’s get into the NVIDIA GeForce RTX 3060 Ti vs NVIDIA GeForce RTX 2070 Super comparison.

Ti vs Super: What’s the difference?

Essentially, NVIDIA’s Ti and Super labels are both improved versions of a standard graphics card that have better performance and higher core clock speeds than the original.

Ti in NVIDIA graphics cards stands for Titanium and is the most powerful variant of the original graphics card. The performance increase could be anywhere from 30%-40% compared to the original. This makes them come at a higher price so it’s important to check how much performance increase you’re getting compared to the money being spent when buying the original or Ti version.

Super is basically the version that’s between the standard and Ti version. This means the performance difference is between 20%-30% compared to the standard graphics card. The same advice applies here when choosing between the Super, Ti, and standard versions. Out of the three, the Ti version will be the most powerful and also cost more than the others.

RTX 3060 Ti vs RTX 2070 Super: Gaming Benchmarks at 1080p

In this section, we’ll be exploring how the NVIDIA GeForce RTX 3060 Ti vs NVIDIA GeForce RTX 2070 Super comparison plays out for native 1080p resolution. All the games will be tested in the highest possible settings that their respective engine allows.

With that said, let’s get into the gaming benchmarks at 1080p resolution for the NVIDIA GeForce RTX 3060 Ti vs NVIDIA GeForce RTX 2070 Super comparison. All the benchmarks which are referenced in this section were obtained from YT/Games Oracle.

Test PC

  • OS: Windows 10 Pro
  • CPU: Intel i9 10900K 3.7GHz
  • Motherboard: MSI MPG Z490 GAMING PLUS
  • CPU Cooler: Zalman CNPS10X Performa
  • GPU: GeForce RTX 3060 Ti 8GB / GeForce RTX 2070 SUPER 8GB
  • RAM: 32Gb RAM DDR4 3600Mhz
  • Power Supply: CORSAIR RM850i 850W

Hitman 3

Benchmarks for Hitman 3 at 1080p: RTX 3060 Ti vs RTX 2070 Super
Hitman 3 1080p Benchmark

Starting off with Hitman 3, a popular stealth game, we can see the NVIDIA GeForce RTX 2070 Super was reaching 124 FPS on average at 57°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 130 FPS at 66°C. This means the NVIDIA GeForce RTX 3060 Ti was just 5% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Likewise, the lowest 1% FPS drop was recorded at 100 FPS for the NVIDIA GeForce RTX 2070 Super compared to 105 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 93 FPS and 100 FPS for the NVIDIA GeForce 2070 and NVIDIA GeForce 3060 Ti respectively.

Assassin’s Creed Valhalla

Benchmarks for Assassin's Creed Valhalla at 1080p resolution
 Assassin’s Creed Valhalla 1080p Benchmark

The next game on our list is Assassin’s Creed Valhalla, the 12th installment in the Assassin’s Creed franchise developed by Ubisoft. From the get-go, we can see the NVIDIA GeForce RTX 2070 Super was reaching 71 FPS on average at 52°C. On the other hand, the NVIDIA GeForce RTX 3060 Ti reached 78 FPS at 61°C.

This means the NVIDIA GeForce RTX 3060 Ti was giving a 9% higher frame rate than the NVIDIA GeForce RTX 2070 Super. Moreover, the 1% low FPS drops were at 55 FPS and 56 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce RTX 3060 Ti respectively. And lastly, the 0.1% FPS drops were recorded at 46 FPS for both GPUs.

Cyberpunk 2077

Benchmarks for Cyberpunk 2077 at 1080p resolution
Cyberpunk 2077 1080p Benchmark

Moving on to Cyberpunk 2077, a title most of you’ve probably heard of, we can see the NVIDIA GeForce RTX 2070 Super was reaching 51 FPS on average at 53°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 58 FPS at 62°C. This means the NVIDIA GeForce RTX 3060 Ti was just 13% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Also, the lowest 1% FPS drop was recorded at 47 FPS for the NVIDIA GeForce RTX 2070 Super compared to 27 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 43 FPS and 23 FPS for the NVIDIA GeForce 2070 and NVIDIA GeForce 3060 Ti respectively.

Horizon Zero Dawn

 Horizon Zero Dawn Benchmark at 1080p resolution
RTX 3060 Ti vs RTX 2060 Super: Horizon Zero Dawn 1080p Benchmark

Next up, with Horizon Zero Dawn, we can see the NVIDIA GeForce RTX 2070 Super reaching an average of 94 FPS while being at a temperature of 56°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 103 FPS at 68°C. This means the NVIDIA GeForce RTX 3060 Ti was 9% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Correspondingly, the lowest 1% FPS drop was recorded at 63 FPS for the NVIDIA GeForce RTX 2070 Super compared to 70 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 62 FPS and 68 FPS for the 2070 and NVIDIA GeForce 3060 Ti respectively.

Forza Horizon 4

Forza Horizon 4 Benchmark at 1080p: RTX 3060 Ti vs RTX 2070 Super
RTX 3060 Ti vs RTX 2060 Super: Forza Horizon 4 1080p Benchmark

Lastly, on Forza Horizon 4, a popular racing game, we can see the NVIDIA GeForce RTX 2070 Super was reaching 144 FPS on average at 49°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 147 FPS at 58°C. This means the NVIDIA GeForce RTX 3060 Ti was just 3% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Also, the lowest 1% FPS drop was recorded at 106 FPS for the NVIDIA GeForce RTX 2070 Super compared to 104 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 85 FPS and 91 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce 3060 Ti respectively.

RTX 3060 Ti vs RTX 2070 Super: Gaming Benchmarks at 1440p

All the benchmarks that were referenced for the 1440p test were obtained from YT/GamesOracle. The same system was used for 1440p benchmarks as the 1080p benchmarks.

Hitman 3

Benchmarks for Hitman 3 at 1440p: RTX 3060 Ti vs RTX 2070 Super
Hitman 3 1440p Benchmark

To begin with Hitman 3 again, we can see the NVIDIA GeForce RTX 2070 Super was reaching 85 FPS on average at 59°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 93 FPS at 69°C. This means the NVIDIA GeForce RTX 3060 Ti was just 9% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Again, the lowest 1% FPS drop was recorded at 71 FPS for the NVIDIA GeForce NVIDIA GeForce RTX 2070 Super compared to 76 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 67 FPS and 71 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce 3060 Ti respectively.

Assassin’s Creed Valhalla

 Benchmarks for Assassin's Creed Valhalla at 1440p resolution
RTX 3060 Ti vs RTX 2060 Super: Assassin’s Creed Valhalla 1440p Benchmark

In Assassin’s Creed Valhalla, we can see the NVIDIA GeForce RTX 2070 Super was reaching 56 FPS on average at 54°C. On the other hand, the NVIDIA GeForce RTX 3060 Ti reached 62 FPS at 64°C. This means the NVIDIA GeForce RTX 3060 Ti was giving a 10% higher frame rate than the NVIDIA GeForce RTX 2070 Super.

Moreover, the 1% low FPS drops were at 44 FPS and 49 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce RTX 3060 Ti respectively. And lastly, the 0.1% FPS drops were recorded at 37 FPS and 43 FPS for NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce RTX 3060 Ti respectively.

Cyberpunk 2077

Benchmarks for Cyberpunk 2077 at 1440p resolution
 Cyberpunk 2077 1440p Benchmark

Moving on to Cyberpunk 2077 benchmark, we can see that the NVIDIA GeForce RTX 2070 Super was reaching 35 FPS on average at 55°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 40 FPS at 63°C. This means the NVIDIA GeForce RTX 3060 Ti was just 13% better at outputting frames than the NVIDIA GeForce RTX 2070 Super. Also, the lowest 1% FPS drop was recorded at 30 FPS for the NVIDIA GeForce RTX 2070 Super compared to 37 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 28 FPS and 34 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce 3060 Ti respectively.

Horizon Zero Dawn

Benchmarks for Horizon Zero Dawn at 1440p resolution
Horizon Zero Dawn 1440p Benchmark

Next up, with Horizon Zero Dawn, we can see the NVIDIA GeForce RTX 2070 Super reaching an average of 78 FPS while being at a temperature of 56°C. On the other hand, the NVIDIA GeForce RTX 3060 Ti reached 87 FPS at 68°C. This means the NVIDIA GeForce RTX 3060 Ti was 11% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Likewise, the lowest 1% FPS drop was recorded at 56 FPS for the NVIDIA GeForce RTX 2070 Super compared to 61 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 55 FPS and 57 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce 3060 Ti respectively.

Forza Horizon 4

This image shows Benchmarks for Forza Horizon 4 at 1440p: RTX 3060 Ti vs RTX 2070 Super
RTX 3060 Ti vs RTX 2060 Super: Forza Horizon 4 1440p Benchmark

In the end, with Forza Horizon 4, we can see the NVIDIA GeForce RTX 2070 Super was reaching 125 FPS on average at 52°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 128 FPS at 60°C. This means the NVIDIA GeForce RTX 3060 Ti was just 3% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Furthermore, the lowest 1% FPS drop was recorded at 102 FPS for the NVIDIA GeForce RTX 2070 Super compared to 96 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 87 FPS and 81 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce 3060 Ti respectively.

RTX 3060 Ti vs RTX 2070 Super: Gaming Benchmarks at 4K

All the benchmarks we referenced in this section were obtained from YT/Testing Games

Test PC

  • OS: Windows 10 Pro
  • CPU: AMD Ryzen 5 3600 6-Core, 12-Thread
  • GPU: Gigabyte GeForce RTX 2070 WINDFORCE 8G / ZOTAC TWIN EDGE RTX 3060 Ti 8Gb
  • MOBO: TUF GAMING B550M-PLUS (WI-FI)
  • RAM: VENGEANCE® RGB PRO 16GB (2 x 8GB) DDR4 3600MHz C18
  • PSU: Corsair RM650 650 Watt 80 PLUS® Gold Certified
  • SSD: Samsung 850 EVO 250GB
  • HDD: SEAGATE ST2000DM006 2TB

Cyberpunk 2077

Benchmarks for Cyberpunk 2077  at 4K: RTX 3060 Ti vs RTX 2070 Super
Cyberpunk 2077 4K Benchmark

Starting off the 4K tests with the Cyberpunk 2077 benchmark, we can see that the NVIDIA GeForce RTX 2070 Super was reaching 40 FPS on average at 59°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 45 FPS and was also running at 59°C. This means the NVIDIA GeForce RTX 3060 Ti was 12% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Even, the lowest 1% FPS drop was recorded at 36 FPS for the NVIDIA GeForce RTX 2070 Super compared to 38 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 36 FPS and 28 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce 3060 Ti respectively.

Horizon Zero Dawn

Benchmarks for Horizon Zero Dawn  at 4K resolution
RTX 3060 Ti vs RTX 2060 Super: Horizon Zero Dawn 4K Benchmark

Next up, in Horizon Zero Dawn, we can observe the NVIDIA GeForce RTX 2070 Super reaching 43 FPS on average at 59°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 50 FPS and was also running at 59°C. This means the NVIDIA GeForce RTX 3060 Ti was 14% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Again, the lowest 1% FPS drop was recorded at 40 FPS for the NVIDIA GeForce RTX 2070 Super compared to 46 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 39 FPS and 37 FPS for the NVIDIA GeForce 2070 and NVIDIA GeForce RTX 3060 Ti respectively.

Red Dead Redemption 2

Benchmarks for Red Dead Redemption 2  at 4K resolution
Red Dead Redemption 2 4K Benchmark

Moving on to Red Dead Redemption 2, we can see that the NVIDIA GeForce RTX 2070 Super was reaching 44 FPS on average at 63°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 49 FPS and was also running at 58°C. This means the NVIDIA GeForce RTX 3060 Ti was 11% better at outputting frames than the NVIDIA GeForce RTX 2070 Super. Also, the lowest 1% FPS drop was recorded at 37 FPS for the NVIDIA GeForce RTX 2070 Super compared to 41 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 36 FPS and 27 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce 3060 Ti respectively.

Check This as well: RTX 3060 vs GTX 1080

Assassin’s Creed Valhalla

Benchmarks for Assassin's Creed Valhalla at 4K resolution
RTX 3060 Ti vs RTX 2060 Super: Assassin’s Creed Valhalla 4K Benchmark

With Assassin’s Creed Valhalla, we can see that the NVIDIA GeForce RTX 2070 Super was reaching 36 FPS on average at 60°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 40 FPS and was also running at 52°C. This means the NVIDIA GeForce RTX 3060 Ti was 10% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Also, the lowest 1% FPS drop was recorded at 31 FPS for the NVIDIA GeForce RTX 2070 Super compared to 36 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 29 FPS and 32 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce RTX 3060 Ti respectively.

Microsoft Flight Simulator

Benchmarks for Microsoft Flight Simulator  at 4K resolution
Microsoft Flight Simulator 4K Benchmark

Regarding the Microsoft Flight Simulator benchmark, we can see that the NVIDIA GeForce RTX 2070 Super was reaching 31 FPS on average at 63°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 35 FPS at 60°C. This means the NVIDIA GeForce RTX 3060 Ti was 12% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Furthermore, the lowest 1% FPS drop was recorded at 25 FPS for the NVIDIA GeForce RTX 2070 Super compared to 27 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 18 FPS and 20 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce RTX 3060 Ti respectively.

Forza Horizon 4

Benchmarks for Forza Horizon 4 at 4K resolution
RTX 3060 Ti vs RTX 2060 Super: Forza Horizon 4 4K Benchmark

Next game on the list, Forza Horizon 4, we can see that the NVIDIA GeForce RTX 2070 Super was reaching 90 FPS on average at 57°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 103 FPS at 48°C. This means the NVIDIA GeForce RTX 3060 Ti was 13% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Correspondingly, the lowest 1% FPS drop was recorded at 76 FPS for the NVIDIA GeForce RTX 2070 Super compared to 84 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 75 FPS and 81 FPS for NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce RTX 3060 Ti respectively.

Kingdom Come Deliverance

Benchmarks for Kingdom Come Deliverance at 4K resolution
 Kingdom Come Deliverance 4K Benchmark

Moving on to the Kingdom Come Deliverance benchmark, we can see that the NVIDIA GeForce RTX 2070 Super was reaching 40 FPS on average at 63°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 44 FPS at 59°C. This means the NVIDIA GeForce RTX 3060 Ti was just 9% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Similar Reads: Best RTX 3080

Likewise, the lowest 1% FPS drop was recorded at 32 FPS for the NVIDIA GeForce RTX 2070 Super compared to 34 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 31 FPS and 33 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce RTX 3060 Ti respectively.

Mafia Definitive Edition

Benchmarks for Mafia Definitive Edition  at 4K resolution
RTX 3060 Ti vs RTX 2060 Super: Mafia Definitive Edition 4K Benchmark

Next up, with the Mafia Definitive Edition benchmark, we can see that the NVIDIA GeForce RTX 2070 Super was reaching 44 FPS on average at 64°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 49 FPS at 60°C.

Also Read: Best RTX 3060

This means the NVIDIA GeForce RTX 3060 Ti was just 11% better at outputting frames than the NVIDIA GeForce RTX 2070 Super. Also, the lowest 1% FPS drop was recorded at 44 FPS for the NVIDIA GeForce RTX 2070 Super compared to 4FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 43 FPS and 48 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce RTX 3060 Ti respectively.

Battlefield V

Benchmarks for Battlefield V at 4K resolution
Battlefield V 4K Benchmark

With Battlefield V, from the start off, we can see that the NVIDIA GeForce RTX 2070 Super was reaching 67 FPS on average at 59°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 75 FPS at 57°C. This means the NVIDIA GeForce RTX 3060 Ti was just 10% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Again, the lowest 1% FPS drop was recorded at 60 FPS for the NVIDIA GeForce RTX 2070 Super compared to 67 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 58 FPS and 40 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce RTX 3060 Ti respectively.

Watch Dogs Legion

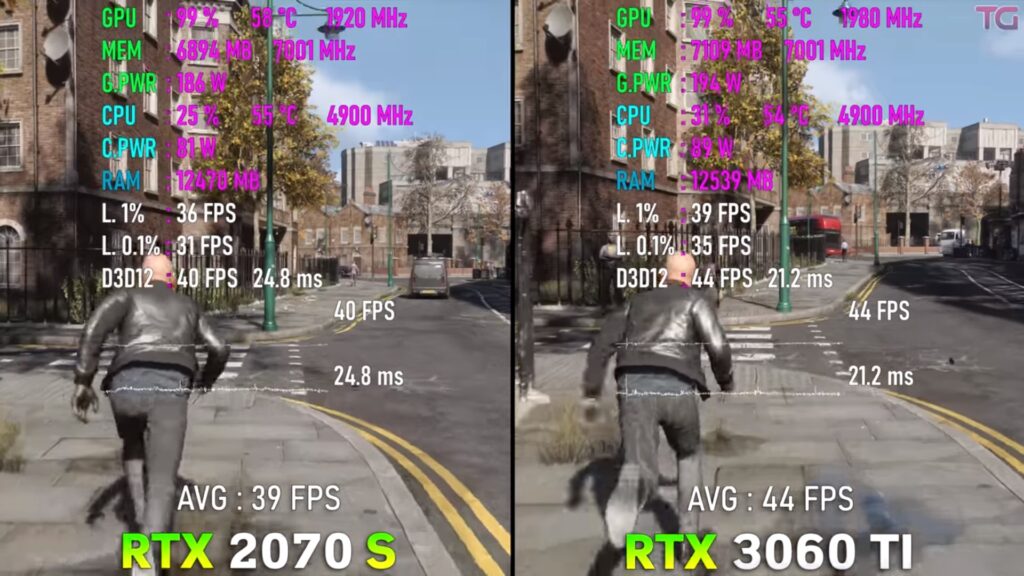

Benchmarks for Watch Dogs Legion at 4K: RTX 3060 Ti vs RTX 2070 Super
RTX 3060 Ti vs RTX 2060 Super: Watch Dogs Legion 4K Benchmark

Lastly, with the Watch Dogs Legion benchmark, we can see that the NVIDIA GeForce RTX 2070 Super was reaching 39 FPS on average at 59°C. Contrastingly, the NVIDIA GeForce RTX 3060 Ti reached 44 FPS at 55°C. This means the NVIDIA GeForce RTX 3060 Ti was just 12% better at outputting frames than the NVIDIA GeForce RTX 2070 Super.

Furthermore, the lowest 1% FPS drop was recorded at 36 FPS for the NVIDIA GeForce RTX 2070 Super compared to 40 FPS for the NVIDIA GeForce RTX 3060 Ti. Lastly, the 0.1% FPS drops were 31 FPS and 35 FPS for the NVIDIA GeForce RTX 2070 Super and NVIDIA GeForce RTX 3060 Ti respectively.

Final Thoughts – Which One To Get?

To wrap up this NVIDIA GeForce RTX 3060 Ti vs NVIDIA GeForce RTX 2070 Super comparison, let’s review what we know about both GPUs. We already know that the NVIDIA GeForce RTX 3060 Ti is the better card with regards to the generation and architecture that it’s built on. Although, the NVIDIA GeForce RTX 3060 Ti and NVIDIA GeForce RTX 2070 Super have the same memory specifications with both cards having 8GB GDDR6 VRAM running on the 256-bit memory bus.

From the 1080p benchmarks, we can see the NVIDIA GeForce RTX 3060 Ti beat the NVIDIA GeForce RTX 2070 Super by a 9% FPS difference. Similar results were obtained from the 1440p and 4K benchmarks. The games were all tested on the highest settings that the engines could provide. Nevertheless, both GPUs offer solid performance for high-end gaming.

So in the end, there’s not really a huge amount of difference in performance when it comes to NVIDIA GeForce RTX 3060 Ti vs NVIDIA GeForce RTX 2070 Super. Both graphics cards have near identical performance but the NVIDIA GeForce 3060 Ti is just a little bit better.

It’s really not worth upgrading from the NVIDIA GeForce RTX 2070 Super to the NVIDIA GeForce 3060 Ti to get a 9% FPS boost which is essentially just a couple of frames. When it comes to choosing which one to buy, just buy whichever one you can find cheaper unless you really want those few extra frames.
