RTX 2070 Vs RTX 3070 Ti: Which One To Get In 2023?

In our earlier comparison, the RX 7900 XTX from AMD was found to outclass NVIDIA’s 4070 Ti in terms of performance. However, in this round, I will be taking a closer look at the performance gap between NVIDIA’s previous generations, putting the GeForce RTX 2070 vs GeForce RTX 3070 Ti, to determine which one reigns supreme in 2023.

Key Takeaways

• To begin with, the Turing architecture powers the GeForce RTX 2070, whereas the GeForce RTX 3070 Ti employs the more advanced Ampere architecture.
• To add, the RTX 3070 Ti exhibits a significant lead in benchmark tests with an average FPS production 44.1% higher than the RTX 2070.
• In contrast, the RTX 3070 Ti consumes approximately 24.8% more power than the GeForce RTX 2070, as indicated by benchmark results.
• Concluding the benchmark analysis, it was revealed that the RTX 3070 Ti had a 10.4% advantage in thermal efficiency compared to the RTX 2070.

Comparison Table

Architectural Difference

NVIDIA GeForce RTX 2070

The GeForce RTX 2070 is a graphics card from NVIDIA’s Turing generation and an addition to the RTX 2000 series. It boasts a base clock of 1410 MHz, a boost clock of 1620 MHz, and 8 GB GDDR6 memory with a bandwidth of 448.0 GB/s. Despite being an older card, it still offers impressive performance for gamers at a budget-friendly price point.

Also Read: RTX 2070 Vs RTX 2080

NVIDIA GeForce RTX 3070 Ti

The GeForce RTX 3070 Ti is a powerful graphics card from NVIDIA’s last-gen Ampere architecture and an impressive addition to the RTX 3000 series. With a base clock of 1575 MHz, a boost clock of 1770 MHz, and 8 GB GDDR 6X memory with a bandwidth of 608.3 GB/s, this card is designed to offer exceptional performance for demanding applications and high-end gaming.

GeForce RTX 2070 Vs RTX 3070 Ti: Gaming Benchmarks

Now that I have delved into the technical specifications of the RTX 2070 and RTX 3070 Ti, it is time to take a closer look at their practical performance in modern gaming scenarios. Our objective is to conduct thorough and meticulous testing to ascertain the relative strengths and weaknesses of each card across a range of popular games.

Testing Rig

Here are the specs of the testing rig:

• CPU: AMD Ryzen 7 5800X3D
• Motherboard: ASUS TUF GAMING B550M-PLUS (WI-FI)
• Memory: VENGEANCE® RGB PRO 16GB (2 x 8GB) DDR4 3600MHz C18
• Storage Drive: Samsung 850 EVO 250GB, SEAGATE ST2000DM006 2TB
• CPU Cooler: MasterAir MA410P CPU Air Cooler
• Power Supply: DeepCool DQ850-M-V2L 850W
• Operating System: Windows 10

To ensure that our findings are as detailed as possible, we’ll conduct a comprehensive comparison between the RTX 2070 and RTX 3070 Ti, evaluating their performance and technical aspects, including FPS, temperatures, and 1% lows at 1440p ultra settings.

Note: Keep in mind that benchmark tests are susceptible to external factors such as ambient temperature, ventilation, and background software, which can affect the final results. Therefore, it is important to consider the outcomes as approximations rather than exact results.

Let’s now dive into the gaming benchmarks of the RTX 2070 and RTX 3070 Ti without any delay.

A Plague Tale Requiem

• Outperforming the RTX 2070’s 35 FPS, the RTX 3070 Ti impressively delivers an outstanding average FPS of 116, leading to a difference of 47.8%.
• Furthermore, the RTX 3070 Ti performs superiorly to the RTX 2070 with a 46.9% increase in 1% lows, displaying 50 FPS compared to 31 FPS.
• Conversely, the RTX 2070 draws less power than the RTX 3070 Ti, consuming only 197.4 W compared to the latter’s 270.2 W, resulting in a 31.1% difference.
• Furthermore, the RTX 3070 Ti runs cooler than the RTX 2070, with an average temperature of 60°C, a 9.5% improvement over the 66°C recorded by the latter.

Also Check: RTX 2070 Vs RX 6650 XT

Uncharted LOTC

• In benchmark tests, the RTX 3070 Ti shows a remarkable 32.8% increase in average FPS, achieving an impressive 78 FPS, leaving the RTX 2070 behind with only 56 FPS.
• Moreover, the RTX 3070 Ti achieves better 1% low results than the RTX 2070, with a 36% improvement, showcasing 72 FPS compared to 50 FPS.
• The RTX 3070 Ti consumes 220 W, which is 26% more than the RTX 2070, which uses only 169.3 W for its operation.
• In addition, the RTX 3070 Ti showcases an 8°C or 13.5% reduction in average temperature compared to the RTX 2070, registering a temperature of 55°C compared to 63°C.

Hitman 3

• The RTX 3070 Ti boasts a staggering 49.4% increase in average FPS compared to the RTX 2070, reaching an astounding 111 FPS compared to 67 FPS.
• Additionally, the RTX 3070 Ti surpasses the RTX 2070 in terms of 1% lows, with a 46.7% lead, exhibiting 95 FPS in contrast to 59 FPS.
• On the other hand, the RTX 2070 uses less power than the RTX 3070 Ti, drawing only 209.6 W compared to the latter’s 271 W, resulting in a 25.5% difference in power consumption.
• Likewise, the RTX 3070 Ti boasts a 9.6% better temperature performance than the RTX 2070, with an average temperature of 59°C, outperforming the 65°C recorded by the latter.

Cyberpunk 2077

• With a 45.5% increase in average FPS, the RTX 3070 Ti scores a remarkable 62 FPS, outpacing the RTX 2070, which only manages 39 FPS in benchmark tests.
• In addition, the RTX 3070 Ti outperforms the RTX 2070 in 1% lows, with a 42.1% increase, reaching 46 FPS as opposed to 30 FPS.
• The RTX 3070 Ti utilizes more power than the RTX 2070, consuming 263 W compared to the latter’s 209.6 W, resulting in a 22.5% difference in energy usage.
• Besides, the RTX 3070 Ti displays a more efficient temperature management system than the RTX 2070, with an average temperature of 58°C, a 6.6% improvement over the latter’s 62°C.

Also Read: RTX 2070 SUPER Vs RTX 3070 Ti

Shadow Of The Tomb Raider

• In benchmark tests, the RTX 3070 Ti showcases an impressive 43.2% increase in average FPS, achieving a stunning 163 FPS, while the RTX 2070 only manages 105 FPS.
• Furthermore, the RTX 3070 Ti performs better than the RTX 2070 in 1% lows, with a 43.9% boost, resulting in 136 FPS as compared to 87 FPS.
• When it comes to power consumption, the RTX 3070 Ti is a bit of a power hog compared to the RTX 2070, drawing 264.5 W versus 198 W, resulting in a 28.7% difference.
• Additionally, the RTX 3070 Ti presents a superior temperature profile than the RTX 2070, registering an average temperature of 57°C, a 14.6% improvement over the latter’s 66°C.

Marvel’s Spider-Man

• The RTX 3070 Ti puts on an impressive performance with a 37.6% increase in average FPS, reaching 123 FPS in benchmark tests, leaving the RTX 2070 behind with only 84 FPS.
• Additionally, the RTX 3070 Ti shows superior 1% lows compared to the RTX 2070, with a 51.5% lead, demonstrating 83 FPS versus 49 FPS.
• The RTX 3070 Ti draws more power than the RTX 2070, consuming 232.9 W compared to the latter’s 194.8 W, which results in an 18.8% increase in power usage.
• Moreover, the RTX 3070 Ti has a better cooling system than the RTX 2070, with an average temperature of 55°C, demonstrating a 13.5% improvement over the latter’s 63°C.

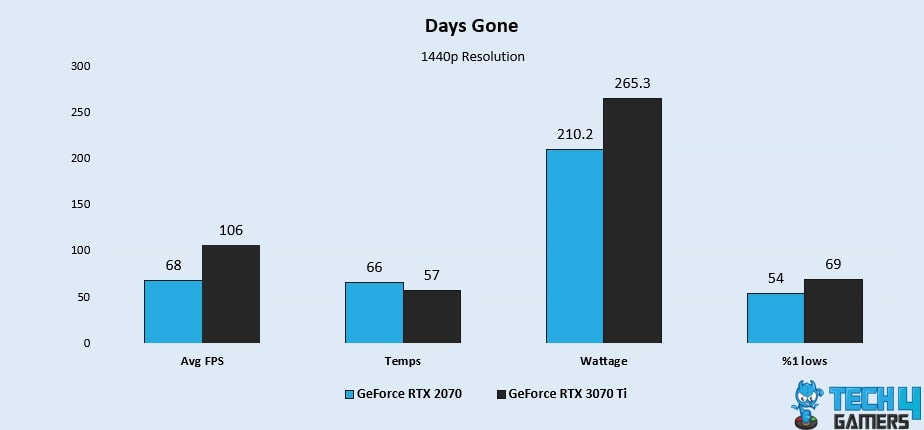

Days Gone

• Boasting a significant 43.6% increase in average FPS, the RTX 3070 Ti performs remarkably well, achieving an impressive 106 FPS in benchmark tests, surpassing the RTX 2070’s 68 FPS.
• Moreover, the RTX 3070 Ti delivers better 1% low performance than the RTX 2070, with a 24.3% improvement, showcasing 69 FPS compared to 54 FPS.
• Unlike the RTX 2070, the RTX 3070 Ti is a power-hungry GPU, consuming 265.3 W compared to the former’s 210.2 W, resulting in a 23.1% difference in power draw.
• In comparison, the RTX 3070 Ti’s temperature performance is superior to that of the RTX 2070, with an average temperature of 57°C, which is 14.6% lower than the latter’s 66°C.

Also Check: RTX 4070 Vs RTX 3070 Ti

God of War

• The RTX 3070 Ti exceeds expectations with a remarkable 43.2% increase in average FPS, reaching an impressive 76 FPS in benchmark tests, leaving the RTX 2070 behind at just 49 FPS.
• Also, the RTX 3070 Ti surpasses the RTX 2070 in 1% lows, with a 41.3% lead, exhibiting 70 FPS compared to 46 FPS.
• In terms of power usage, the RTX 3070 Ti is more demanding than the RTX 2070, consuming 267.2 W compared to the latter’s 210.6 W, resulting in a 23.6% difference.
• Additionally, the RTX 3070 Ti exhibits an improved temperature profile when compared to the RTX 2070, maintaining an average temperature of 58°C, an 11.3% improvement over the latter’s 65°C.

Far Cry 6

• A 42.4% increase in average FPS in benchmark tests demonstrates the impressive performance of the RTX 3070 Ti, which reaches an outstanding 100 FPS, outpacing the RTX 2070’s 65 FPS.
• Additionally, the RTX 3070 Ti outshines the RTX 2070 in terms of 1% lows, with a 41.1% increase, achieving 82 FPS versus 54 FPS.
• The RTX 3070 Ti is a power-hungry GPU compared to the RTX 2070, consuming 225.3 W compared to the latter’s 179.4 W, resulting in a 22.6% increase in power consumption.
• Similarly, the RTX 3070 Ti demonstrates a more effective cooling mechanism than the RTX 2070, with an average temperature of 54°C, which is 8.8% lower than the latter’s 59°C.

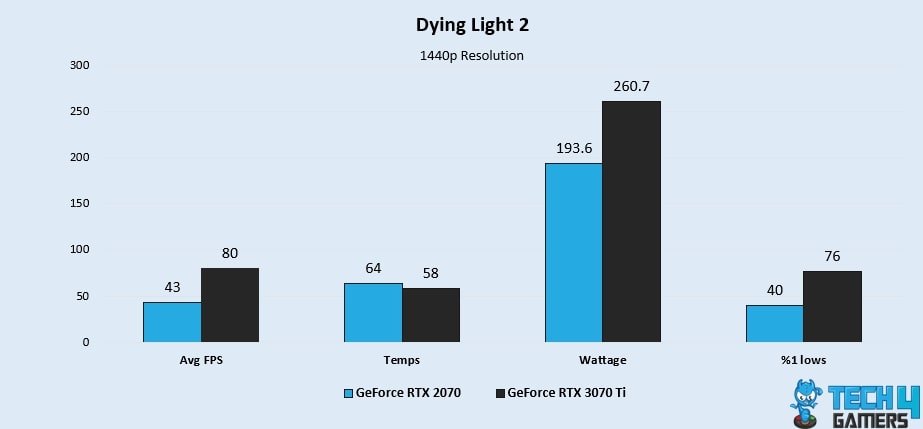

Dying Light 2

• With an impressive 60.1% increase in average FPS, the RTX 3070 Ti delivers an impressive performance in benchmark tests, achieving 80 FPS, while the RTX 2070 only manages 43 FPS.
• Besides, the RTX 3070 Ti performs better than the RTX 2070 in 1% lows, with a 62% boost, resulting in 76 FPS as compared to 40 FPS.
• Compared to the RTX 2070, the RTX 3070 Ti requires more power to operate, consuming 260.7 W compared to the former’s 193.6 W, resulting in a 29.5% difference in energy usage.
• Besides, the RTX 3070 Ti showcases an improved temperature management system when compared to the RTX 2070, with an average temperature of 58°C, a 9.8% reduction from the latter’s 64°C.

Also Read: RTX 4070 Ti Vs RTX 3070 Ti

Watch Dogs Legion

• Outshining the RTX 2070 in benchmark tests, the RTX 3070 Ti achieves a remarkable 45.9% increase in average FPS, with an impressive score of 75 FPS compared to 47 FPS.
• In addition, the RTX 3070 Ti displays better 1% low results compared to the RTX 2070, with a 45.8% lead, demonstrating 67 FPS versus 42 FPS.
• The RTX 3070 Ti uses significantly more power than the RTX 2070, consuming 253.3 W versus 196.3 W, resulting in a 25.3% increase in power draw.
• Furthermore, the RTX 3070 Ti boasts a better temperature performance than the RTX 2070, with an average temperature of 56°C, which is 11.7% lower than the latter’s 63°C.

Red Dead Redemption 2

• The RTX 3070 Ti outperforms the RTX 2070 in benchmark tests, exhibiting an impressive average FPS score of 77, which is 44.4% higher than the RTX 2070’s score of 49 FPS.
• Furthermore, the RTX 3070 Ti exhibits significantly better 1% low performance compared to the RTX 2070, achieving a 41.4% lead with an impressive score of 67 FPS compared to the RTX 2070’s 44 FPS.
• Moreover, the RTX 3070 Ti’s power consumption was measured at an average of 257.5 W, which was 20.8% higher than the RTX 2070’s average of 208.9 W.
• Additionally, during testing, the RTX 3070 Ti demonstrated superior thermal performance compared to the RTX 2070, maintaining an average temperature of 57°C, 11.5% lower than the latter’s 64°C.

Overall Gaming Performance

After scrutinizing the benchmark outcomes of various games, it is clear that there is a winner between the RTX 2070 vs RTX 3070 Ti in terms of performance.

• To begin with, our benchmark analysis revealed that the RTX 3070 Ti consistently delivers superior performance in terms of FPS and 1% lows compared to the RTX 2070 across all tested games.
• Notably, the RTX 3070 Ti achieves an average FPS of 92.3, outshining the RTX 2070’s 58.9 FPS in our benchmark tests.
• Additionally, the RTX 3070 Ti outperforms the RTX 2070 by a significant margin of 44.1% in terms of FPS performance, making it a superior choice for gamers.

Also Read: RX 6800 XT Vs RTX 3070 Ti

Average Power Consumption

It’s important to choose a graphics card that offers exceptional performance without exceeding power limits. Our examination of power consumption for the RTX 2070 and RTX 3070 Ti yielded the following discoveries.

• Starting off, the RTX 3070 Ti’s solid performance is hindered by its high power consumption of 290 W, which necessitates a 600 W power supply to operate optimally, making it a significant concern for some users.
• To add to that, the RTX 2070 is a more power-efficient GPU with a low TDP of 175 W and only requires a 450 W power supply, making it an eco-friendly choice for those who prioritize power consumption.
• In terms of power efficiency, the RTX 2070 surpasses the RTX 3070 Ti with a 49.4% better TDP, making it a preferred option for those who prioritize energy conservation.
• Further proving the claim, during benchmark testing, the RTX 3070 Ti demonstrated a consistently higher power consumption compared to the RTX 2070.
• To emphasize, the RTX 2070 demonstrates 24.8% greater power efficiency than the RTX 3070 Ti, with an average consumption of 198.1 W versus 254.2 W.

Average Thermal Statistics

Just as power consumption data provides insight into the benchmark performance of RTX 2070 and RTX 3070 Ti, thermal measurements offer valuable information as well and according to our findings:

• Throughout the benchmark testing, the RTX 3070 Ti showed superior thermal efficiency compared to the RTX 2070, despite the latter’s higher temperatures and lower FPS performance.
• Furthermore, it was observed that the RTX 2070 had a consistently higher temperature, with an average of 63.8°C, while the RTX 3070 Ti remained cooler, with an average temperature of 57.5°C.
• In conclusion, based on benchmark tests, the RTX 3070 Ti outperformed the RTX 2070 in terms of thermal efficiency by 10.4%.

Also Read: RTX 3060 Ti vs RTX 3070 Ti

Pricing And Availability

Following a comprehensive performance analysis, the pricing and availability of the RTX 2070 and RTX 3070 Ti were taken into account. While they are two excellent GPUs from NVIDIA, they are not cheap.

The GeForce RTX 3070 Ti has an MSRP of $599, and the GeForce RTX 2070 is priced at $499. It’s crucial to keep in mind that the cost can vary significantly depending on the model and variant, with premium versions from manufacturers like GIGABYTE and ASUS costing even more.

Furthermore, it’s essential to note that the GeForce 3070 Ti is around 18.2% more expensive than the RTX 2070, with the potential of the price disparity increasing or decreasing based on which variant or model you end up purchasing.

RTX 3070 Ti Vs RTX 2070: Which To Get In 2023?

• With an 18.2% price difference, the RTX 2070 is a cost-effective option, but it fails to deliver in comparison to the RTX 3070 Ti, which delivers a substantial 44.1% increase in average FPS production.
• Furthermore, thermal efficiency plays a critical role in selecting a graphics card. The RTX 3070 Ti has a 10.4% lower average temperature than the RTX 2070, while the latter consumes 24.8% less power.
• Although the RTX 2070 is a cost-effective graphics card, the RTX 3070 Ti offers both impressive performance and exceptional thermal efficiency.

Also Read: RTX 3070 Ti vs RTX 2080 Ti

Pros And Cons

If you’re in the market for a new graphics card but aren’t sold on the RTX 2070 or RTX 3070 Ti, it’s worth taking a look at our website for other options. We’ve recently conducted a detailed review of two other high-performance graphics cards, the RTX 4080 and RX 6950 XT. Our analysis covers various aspects, including their price, power consumption, and thermal performance, to help you make an informed decision.
