In this RTX 3060 vs ARC A770 comparison, we’ll be testing the two GPUs in several games. We will review every important bit of data and examine if Intel’s graphics card can hold its own against one of Nvidia’s best offerings.
- Our benchmark results revealed that the ARC A770 GPU outperforms the RTX 3060 by a notable 10% in frames per second.
- Energy consumption measurements indicate that the RTX 3060 is 20% more power-efficient than the ARC A770, potentially resulting in lower power bills for users.
- Temperature-wise, the RTX 3060 exhibits superior cooling performance, operating at a temperature that is 21% cooler than the ARC A770.
- Considering pricing, the RTX 3060 is currently available for $385, while the ARC A770 comes in at $370, making both GPUs competitive choices in terms of cost and performance.
|Technical Specs||Intel ARC A770||GeForce RTX 3060|
|Process Size||6 nm||8 nm|
|Transistors||21,700 million||12,000 million|
|Base Clock||2100 MHz||1320 MHz|
|Boost Clock||2400 MHz||1777 MHz|
|L2 Cache||16 MB||3 MB|
|Memory Size||16 GB||12 GB|
|Memory Bus Width||256 bit||192 bit|
|Memory Bandwidth||512.0 GB/s||360.0 GB/s|
|TDP||225 W||170 W|
|Suggested PSU||600 W||450 W|
|Release Date||Oct 12th, 2022||Jan 12th, 2021|
|Approximate Prices||370 USD||385 USD|
|Best Variants||–||Best RTX 3060|
- Process Size: Beginning with the first difference, the Intel ARC A770 has a 6nm process size, but the GeForce RTX 3060 surpassed its competitor as it has an 8nm process size.
- Clock Speeds: Moving on to the speed of the cards, the RTX 3060 has a base clock of 1320 MHz while having a 1777 MHz boost clock. The ARC A770, though, comes with a 2100 MHz base clock, which can be boosted up to 2400 MHz.
- VRAM: Coming to the VRAM, a competitive 12GB is offered by the RTX 3060, but the ARC A770 serves an impressive 16GB of VRAM.
- TDP: As far as the power consumption is concerned, the ARC A770’s 225 W is comparatively much higher than the 170W consumed on average by the RTX 3060.
- Supported Technologies: The RTX 3060 comes with the power of Ampere architecture, hence supporting dedicated 2nd-gen RT Cores and 3rd-gen Tensor Cores. Whereas Intel’s ARC A770 is compatible with technologies such as Ray Tracing, Variable Rate Shading, and DirectX 12 Ultimate.
Also Read: RTX 3060 Vs 3060 Ti
ARC A770 Vs RTX 3060: Benchmark At 1440p
Since these GPUs are upgraded versions of their predecessors, we will be going beyond 1080p. To bring out the best performance of these cards, we will be comparing them side by side on different heavy games on 1440p.
- Processor: Core i9-12900K
- Motherboard: MSI MPG Z690 Force
- RAM: XPG Lancer (2 x 16GB) 32GB RAM DDR5 5600Mhz
- CPU Cooler: be quiet! Dark Rock Pro 4
- RTX 3060: MSI Ventus GeForce RTX 3060 12GB
- ARC A770: Intel Arc A770 Limited Edition 16GB
- SSD: 2xSAMSUNG 970 EVO M.2 2280 1TB
- Power Supply: Corsair RM850i 850W
- OS: Windows 10 Pro
Disclaimer: The benchmark tests are conducted through software, and external factors are essential in influencing the outcome. These external factors include outside temperatures, airflow, and background tasks, just to name a few. Therefore, taking the results as estimations is crucial as they may vary from system to system.
Also Read: RTX 3060 Vs GTX 1660 Ti
Forza Horizon 5
- Let’s start with the first well-known game, “Forza Horizon 5”, where the ARC A750 starts with a win at an average of 95 FPS versus the RTX 3060’s 78 FPS.
- The ARC A770 achieved a remarkable 72 FPS at 1% lows compared to the RTX 3060’s 63 FPS.
- While the RTX 3060 only consumed 122.1W, the ARC A770 ingested 179.1W of power.
- Comparatively less heat was experienced by the RTX 3060 as it reached a temperature of 53°C while the ARC A770 went as far as 64°C.
Related: RTX 3050 Vs RTX 3060
- Now let’s move on to the popular superhero Marvel’s Spider-Man, where the ARC A750 outscored the RTX 3050 by averaging 86 FPS as opposed to 75 FPS.
- At 1% lows, the RTX 3060 managed 54 FPS, but the ARC A770 outperformed it by maintaining 61 FPS.
- There was a considerable disparity in the amount of power required by the two cards, with the RTX 3060 using 151.8W and the ARC A770 requiring as much as 194.6W.
- As far as temperature is concerned, 54°C of heat was released by the RTX 3060, but the ARC A770 proved to be hotter as it climbed to 67°C.
- The action-packed Cyberpunk 2077 has served up the win of better performance to the ARC A750, which outperformed the RTX 3060 with scores of 47 FPS vs 53 FPS.
- The ARC A770 delivered 50 FPS at 1% lows, whereas the RTX 3060 generated 43 FPS.
- No surprise in the power consumption as the RTX 3060 utilized only 168.7W compared to the 199.8W, devoured by the ARC A770.
- While the ARC A770 heated up to 66°C, the RTX 3060 only reached up to 55°C.
More From 3060: RTX 2060 Super vs RTX 3060
Horizon Zero Dawn
- The RTX 3060 has just been able to set the horizon on its competitor by scoring 60 FPS in contrast to ARC A770’s 59 FPS while running Horizon Zero Dawn.
- At 1% lows, the frames per second presented by both cards were precisely the same at 56 FPS.
- The RTX 3060 consumed 158.6W; however, the ARC A770 ate up way more than that, 183.2W.
- A considerable difference in the temperatures can be seen as the RTX 3060 came up with only 53°C, but the ARC A770 was much warmer at 71°C.
Red Dead Redemption 2
- The ARC A770 has certainly dominated the RTX 3060 by performing at an average of 68 FPS instead of the RTX 3060’s 51 FPS.
- The ARC A770, at 1% lows, had substantially better performance with 57 FPS in contrast to the RTX 3060’s 42 FPS.
- 165.8W of power was drawn by RTX 3060, while the ARC A770 was observed to be taking up 197.3W.
- As high as 70°C of heat was observed by the ARC A770 this time, while the RTX 3060 was relatively much cooler at 55°C.
Also Read: RX 6600 XT Vs RTX 3060
Microsoft Flight Simulator
- Aboard the Microsoft Flight Simulator, the RTX 3060 has dethroned its competitor with 41 FPS on average, while the ARC A750 showed up with 39 FPS.
- Comparison at 1% lows was a bit tight, but the RTX 3060 again managed to bag a win with 36 FPS while the ARC A770 climbed up to 34 FPS.
- This time, the power consumption of both cards was comparatively close as the RTX 3060 utilized 177.5W, but the ARC A770 still consumed more, 186.5W.
- The temperature of the RTX 3060 and the ARC A750 were 58°C and 66°C, respectively.
- The stealth mastermind game Hitman 3 has been better run by the ARC A750, with 93 FPS on average, while the RTX 3060 performed with 84 FPS.
- At 1% lows, 66 FPS were provided by the ARC A770, whereas the RTX 3060 accomplished 58 FPS.
- The power taken in by the RTX 3060 and the ARC A770 was 167.2W and 194.9W, respectively.
- Temperatures, again, had a noticeable gap as the RTX 3060 had 58°C, whereas the ARC A770 had a rising 69°C.
Also Read: AMD RX 6700 XT Vs Nvidia RTX 3060
Dying Light 2
- With the “Dying Light 2” being tested, the ARC A770’s 63 FPS proved to be more significant than the 50 FPS offered by the RTX 3060.
- The RTX 3060 showed 44 FPS at 1% lows, but it wasn’t enough to edge out the ARC A770’s 53 FPS.
- The ARC A770 saw a significant consumption of 198.2W of power, whereas the RTX 3060 required only 158.9W.
- 55°C of heat was released by the RTX 3060, while the ARC A770 showed a temperature of 64°C.
The Witcher 3
- Last but not least is The Witcher 3, where the RTX 3060 ends with a victory over the ARC A770 with an average score of 74 FPS vs 60 FPS.
- At 1% lows, too, the RTX 3060 triumphed over the ARC A770 with 67 FPS in contrast to its competitor’s 55 FPS.
- While the RTX 3060 needed 175.1W, the ARC A770 absorbed 198.1W of power.
- While operating at 57°C, the RTX 3060 was cooler than the ARC A770, which reached a temperature of 66°C.
Also Read: RX 5700 XT Vs RTX 3060

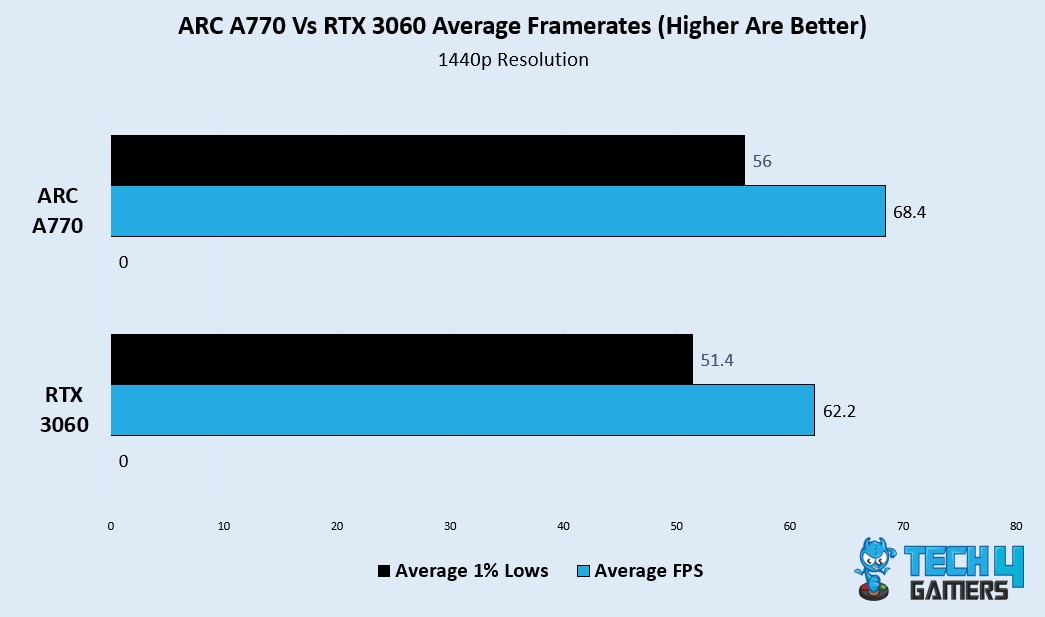

RTX 3060 Vs ARC A770: Overall Gaming Analysis
Now, let’s review the key facts and figures to conclude our benchmarks so that you attain absolute clarity.
The average FPS is the most important factor to take into account when choosing a graphics card. One needs the best possible visual quality for the graphic-demanding games played on a regular basis.
- The RTX 3060 delivered an average of 62.22 frames per second across all the games tested on 1440p.
- The ARC A770, on the other hand, presented 68.44 frames per second on average.
- Therefore, the ARC A770 claims victory by achieving 10% more frames per second than its competitor, the RTX 3060.
Also Check: RTX 3060 Vs RTX 3070
Users must think about overheating when choosing a graphics card because extreme temperatures can have an adverse effect on a computer’s graphics processor’s efficiency and durability.
- While testing the RTX 3060 across various games on 1440p, an average temperature of 55.33°C was observed.
- The ARC A770 had an average temperature of 67°C while being tested alongside its competitor.
- So, the RTX 3060 significantly functioned 21% cooler than the ARC A770, making the RTX 3060 victorious in this regard.
When selecting a graphics card, one should also take power consumption into consideration because one needs not only good graphics but graphics cards with low power consumption.
- The RTX 3060 relied on an average of 160.63W of power across the tested games.
- Whereas the ARC A770 consumed a staggering 192.41W of power.
- As a result, the victorious GPU, the RTX 3060, uses 20% less power than the ARC A770.
Pricing And Availability
- The price of the RTX 3060 ranges from $280 to $465, depending on quality and customization, and is available in plenty throughout shopping websites.
- On the other hand, the cost of the ARC A770 varies between $380 to $450 and is generally accessible on purchasing sites.
Also Read: RTX 2070 Super Vs RTX 3060
Which One Should You Go For?
Given the stiff competition, the ARC A770 undoubtedly outperformed the RTX 3060 regarding frame rates. Still, the latter was also notably more power-efficient and maintained a cooler temperature during the testing of games.
Therefore, if visual performance is a requirement at priority, the ARC A770 should be your first pick. However, if you cannot make any concessions regarding power consumption and heat issues, the RTX 3060 is just an order away.
Pros And Cons
|Nvidia RTX 3060||
|Intel ARC A770||
Intel’s introductory cards have problems such as high power consumption and temperatures.
RTX 3060 is targeted for 1040p and 1440p, but some light games can run at 4K too.
Yes, both of them support ECC memory.
The Intel ARC A770 is directly equivalent to Nvidia’s RTX 3060 12GB in terms of performance.
AMD’s RX 6600 XT is the closest contender to Intel ARC A770.
