The Intel Core i7-13700K and Core i7-13700 are both from Intel’s 13th Gen Raptor Lake lineup, launched on Sep 27th, 2022 and Jan 4th, 2023 respectively. Both desktop processors share a lot of similarities, yet they differ from each other. Let’s see what they are in detail.
Key Takeaways
- Intel Core i7-13700K and Core i7-13700 both support DDR4 and DDR5 memory, providing users with flexible memory options.
- Both the Core i7-13700K and the Core i7 13700 have the same integrated graphics that is UHD Graphics 770, with 32 execution units that operate at a base frequency of 300MHz and a maximum frequency of 1600MHz.
- In all of the applications that were tested with these processors, it’s evident that the Core i7-13700K achieved higher scores than the Core i7-13700 in both single and multi-core scores, with an average difference of about 3.75%.
- The Core i7-13700K is an unlocked version of the Core i7-13700, meaning it can be overclocked to produce better results. The Core i7-13700 is in its stock settings.
Core i7 13700K Vs Core i7 13700: Comparison Table
| Processor | Core i7 13700K | Core i7 13700 |
| Architecture | Core i7 | Core i7 |
| Codename | Raptor Lake-S | Raptor Lake-S |
| Processing Node | Intel 10nm | Intel 10nm |
| Cores | 16 | 16 |
| Threads | 24 | 24 |
| Hybrid Cores | P-Cores: 8 E-Cores: 8 |
P-Cores: 8 E-Cores: 8 |
| Frequency | 3.4GHz | 2.1GHz |
| Turbo Clock | 5.4GHz | 5.2GHz |
| TDP | 125W | 65W |
| Max. Operating Temperature | 100°C | 100°C |
| L1 Cache | 80K (per core) | 80K (per core) |
| L2 Cache | 2MB (per core) | 2MB (per core) |
| L3 Cache | 30MB (shared) | 30MB (shared) |
| Integrated Graphics | Sep 27th, 2022 | Jan 4th, 2023 |
| Processor | UHD Graphics 770 | UHD Graphics 770 |
Architectural Differences
- Processing Node: Intel Core i7-13700K and Core i7-13700 are both manufactured on Intel’s 10nm cutting-edge process node size technology.
- Cores And Threads: The Core i7-13700K and the Core i7-13700 both arrive with 16 cores and 24 threads, having the same number of 8 performance and 16 efficiency hybrid cores.
- TDP: Core i7-13700K has a TDP of 125W, which is relatively higher than the power usage of the Core i7-13700, which operates on 65W of TDP.
- Frequency: The Core i7-13700K has a frequency of 3.4GHz which can boost up to 5.4GHz. In contrast, the Core i7-13700 arrives with a base clock of 2.1GHz which can be ramped up to a clock frequency of 5.2GHz.
- L2 And L3 Cache: They both share the same number of L2 as well as L3 cache, which is 2MB (per core) and 30MB (shared) simultaneously.
Related: Core i9-12900KS vs i7-13700K
Core i7 13700 Vs Core i7 13700K: Productivity Benchmark Test
The Core i7 13700 and the Core i7 13700K are both great processors. Let’s see how much difference in performance they offer by comparing their performance in various productivity applications.

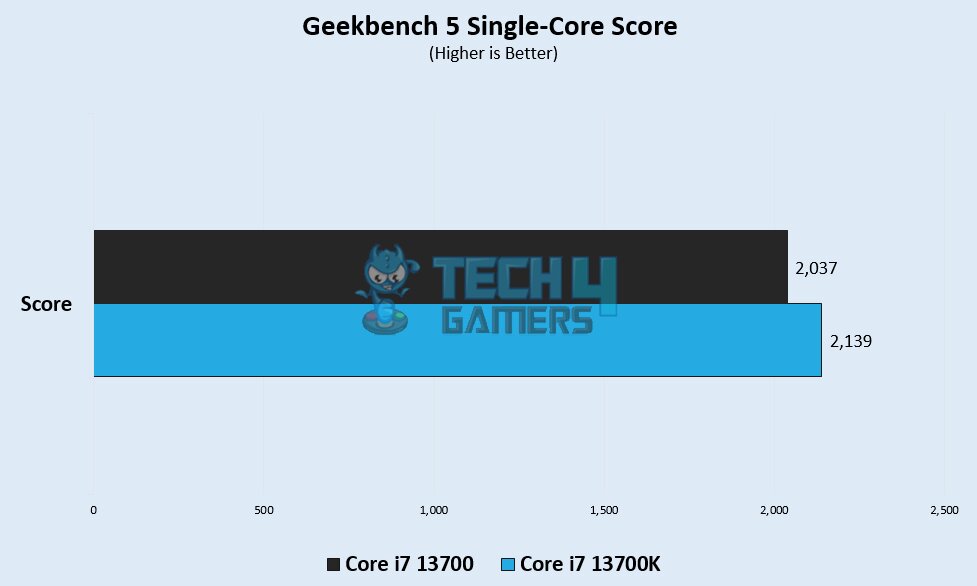

Geekbench 5 Single-Core Score
- In Geekbench 5 Single-Core, the i7-13700K and the i7-13700 scored relatively the same by showcasing 2,139 and 2,037 points, respectively, where the i7-13700 fell behind slightly by over 5%.
Geekbench 5 Multi-Core Score
- Both the Core i7-13700K and Core i7-13700 scores were neck to neck, gaining a score of 21,198 and 20,127 points consecutively, indicating that the Core i7-13700K had a slight edge of above 5%.
Also Read: Intel i7-13700k Vs Ryzen 7 7700X
Cinebench R23 Single Core Score
- The Core i7-13700K and Core i7-13700 were very close in terms of performance, displaying results of 2,092 and 2,040 points, with the Core i7-13700K scoring over 3% higher than the Core i7-13700.

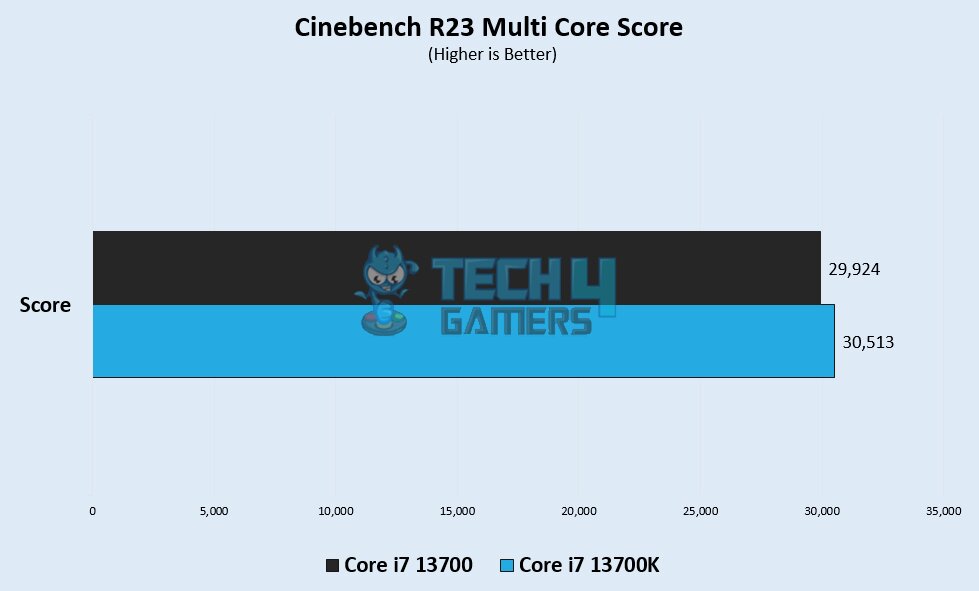

Cinebench R23 Multi Core Score
- In Cinebench R23 Multi-Core, the Core i7-13700K and Core i7-13700 had a small difference of about 2% by attaining a score of 30,513 and 29,924 points, respectively.
Similar Comparisons: i7-13700K Vs Ryzen 9 7900X
Passmark CPU Single-Core Score
- In the Passmark CPU Single-Core benchmark, Core i7-13700K scored 4,439, showing a small gain of over 3% compared to the Core i7-13700’s score of 4,300 points.
Passmark CPU Multi-Core Score
- The Core i7-13700K ruled in the Passmark CPU Multi-Core test by scoring 47,332 points compared to the Core i7-13700’s 40,438 points lagging behind substantially by about 43%.
Which One Should You Choose?
The Intel Core i7-13700K and the Core i7-13700 are two great processors. However, they both have numerous differences despite having almost the same name. Since we have already discussed their differences, let’s recap to see which one stands out for success.
Both CPUs showed very similar performance when they were tested in productivity applications. They both have the same number of cores and threads. Both the Core i7-13700K and the Core i7-13700 are manufactured on the same cutting-edge technology of 10nm.
In terms of the TDP, the Core i7-13700K has a significantly higher TDP of 125W, indicating that it will consume more power than the Core i7-13700, which consumes 65W. This is evident because the Core i7-13700K is an unlocked multiplier and its ability to be overclocked requires a slightly high power consumption.
Pros And Cons
| CPU | Pros | Cons |
| Core i7-13700K |
|
|
| Core i7-13700 |
|
|
Its overclocking ability also means that it is able to perform tasks with better performance, this means higher FPS in games and faster processing on rendering applications. However, this doesn’t negate the performance of the Core Core i7-13700 in any way.
In reality, the Core i7-13700 serves as a great option for people seeking similar performance to its rival but in a relatively lower price range. Ultimately the final decision boils down to your personal preference and budget.
Frequently Asked Questions
The Core i7-13700K is one of the best gaming processors tested to date, which, when paired with a high-end GPU, produces immense performance. Due to its price-to-performance ratio, it is also considered a better option when compared with its forefather, the Core i9 13900K.
Yes, the Core i7-13700 and the Core i7 13700K arrive with integrated graphics of Intel UHD 770.
The Core i7-13700K is slightly better than the Core i7-13700 in terms of performance. However, the Core i7-13700 offers a better price-to-performance ratio and is considered a better option if you’re on a budget.
