The Enermax Platimax II 1200DF is a stellar addition to the high-end power supply market, offering ATX 3.1 and PCIe 5.1 compatibility to safely drive the most demanding modern PC builds. During our extensive testing, it delivered rock-solid voltage regulation, impressive 80 PLUS Platinum efficiency, and great thermal performance inside a surprisingly compact footprint. While the brief burst of fan noise at startup might catch you off guard, it is a minor trade-off for long-term reliability. Featuring high-quality Japanese capacitors, a premium 12V-2×6 cable, and an industry-leading 13-year warranty, this PSU delivers uncompromising, top-tier performance without the heavy brand-name tax.
Hours Tested: 1 Week
Overall
-
Performance - 9.5/10
9.5/10
-
Build Quality - 9.2/10
9.2/10
-
Efficiency - 9.6/10
9.6/10
-
Value - 9.4/10
9.4/10
Pros
- Quiet & Sleek
- Great Value for Money
- Efficient & Powerful
- Buy & Forget
Cons
- Nothing significant
Enermax Platimax II 1200DF is from Enermax’s high-end and enthusiast lineup with the latest ATX 3.1 & PCIe 5.1 specs which now allow even safer margins and power excursions during extreme and power demanding workloads.
It is important to note, Enermax had previously launched PlatiGemini 1200W PSU which we reviewed a while ago, which was, one of its kind, truly innovative, extremely efficient (it topped in all of our charts) and world’s first ATX 3.1 + ATX12VO PSU. It seems like Enermax has kept the PlatiGemini lineup completely separately in the high-end segment, as long as the ATX12VO standard becomes mainstream, which now is very likely due to the arrival of mini AI server PCs in the home server market.
Here are the specifications:
| Specification | Detail |
|---|---|
| Product Name | Enermax Platimax II 1200DF |
| Model Number | Platimax II 1200DF |
| Dimensions (W x H x D) | 150 mm × 86 mm × 150 mm |
| DC Output Cable | Fully Modular |
| Color | Black / White |
| Material | SECC |
| ATX12V Version | ATX 3.1 & PCIe 5.1 |
| 80 PLUS Efficiency | 80 PLUS Platinum |
| Max DC Output | 1200W |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 1200W (100A) |
| Input Rating | 100–240Vac, 50–60Hz |
| PFC | Active PFC |
| Protection | OVP, UVP, OCP, OPP, SCP, OTP |
| Fan Type | 135mm Dual Ball Bearing Fan |
| Fan Speed | Up to 1900 RPM |
| Fanless Mode | Yes (60% Zero-RPM) |
| Noise Level | 21.69 dBA (Average) |
| Operating Temperature | 0~40℃ |
| Warranty | 13 Years |

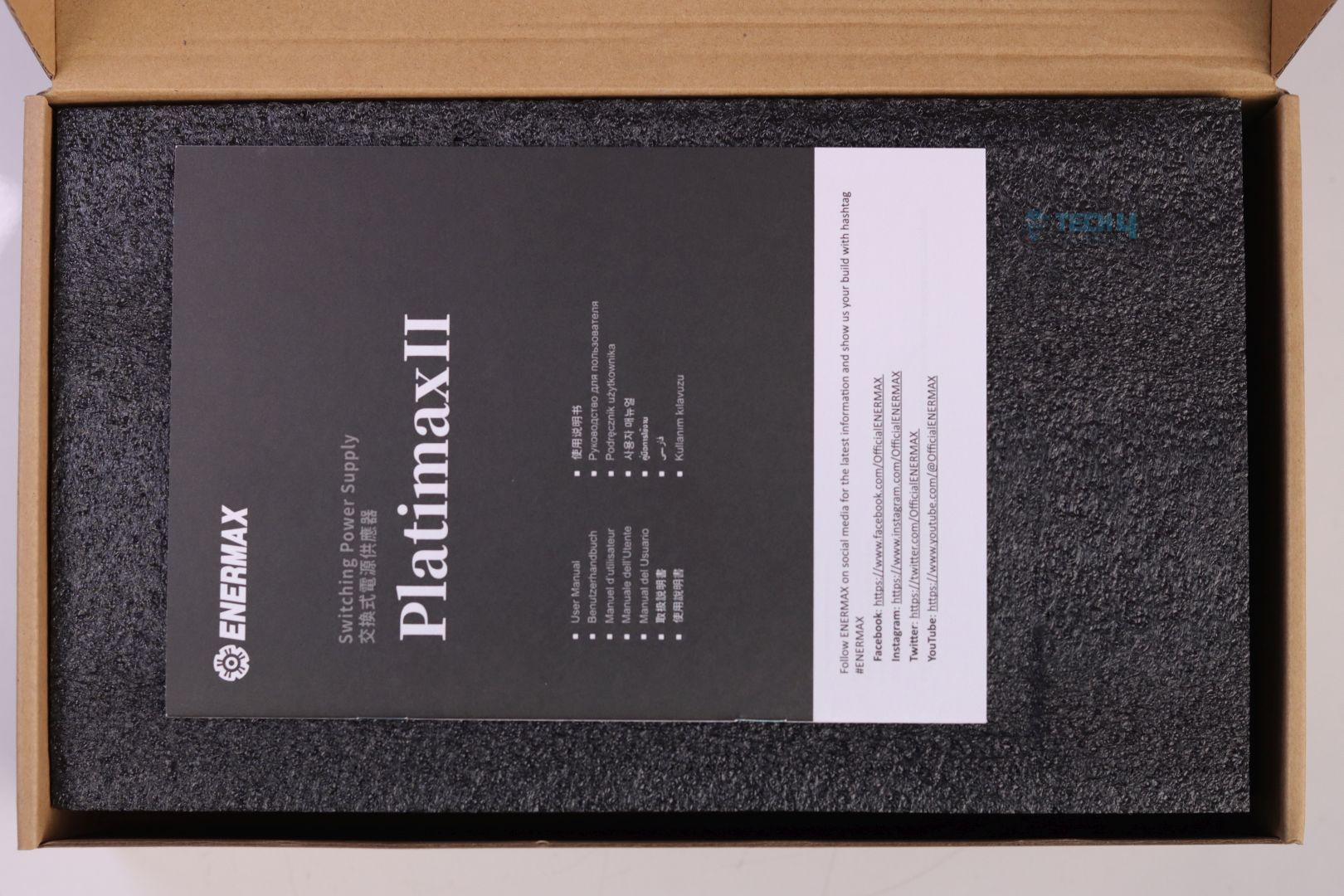

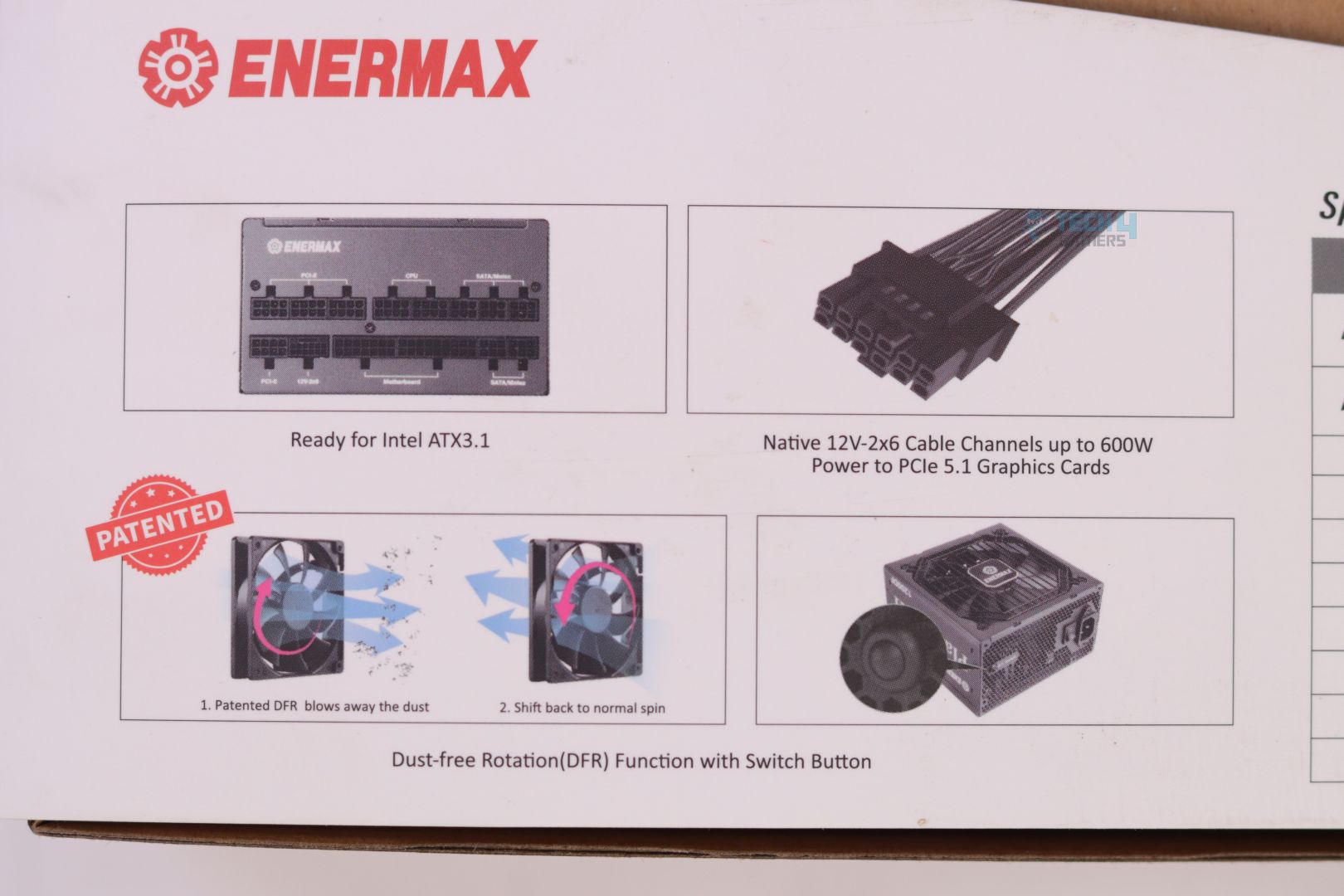

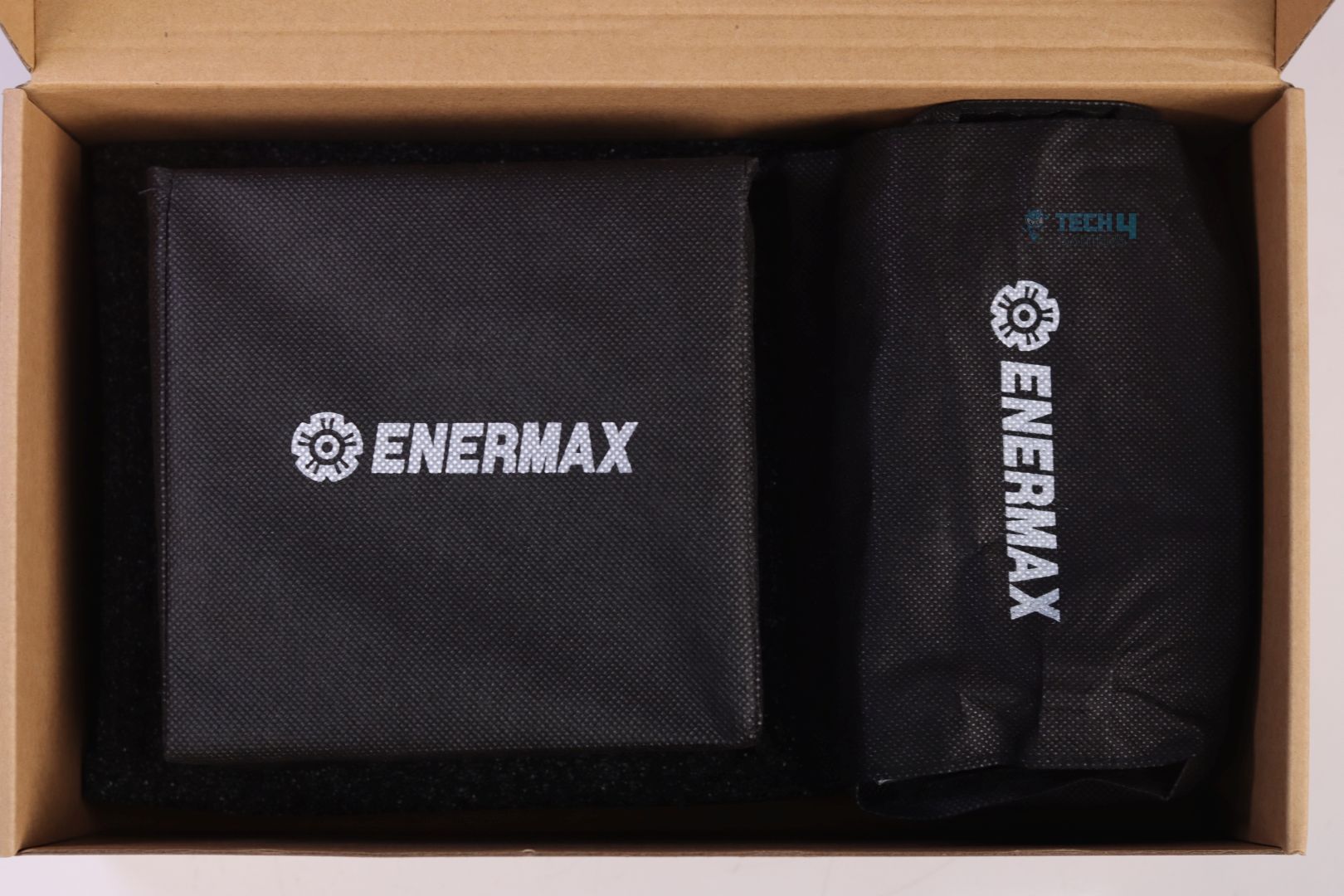

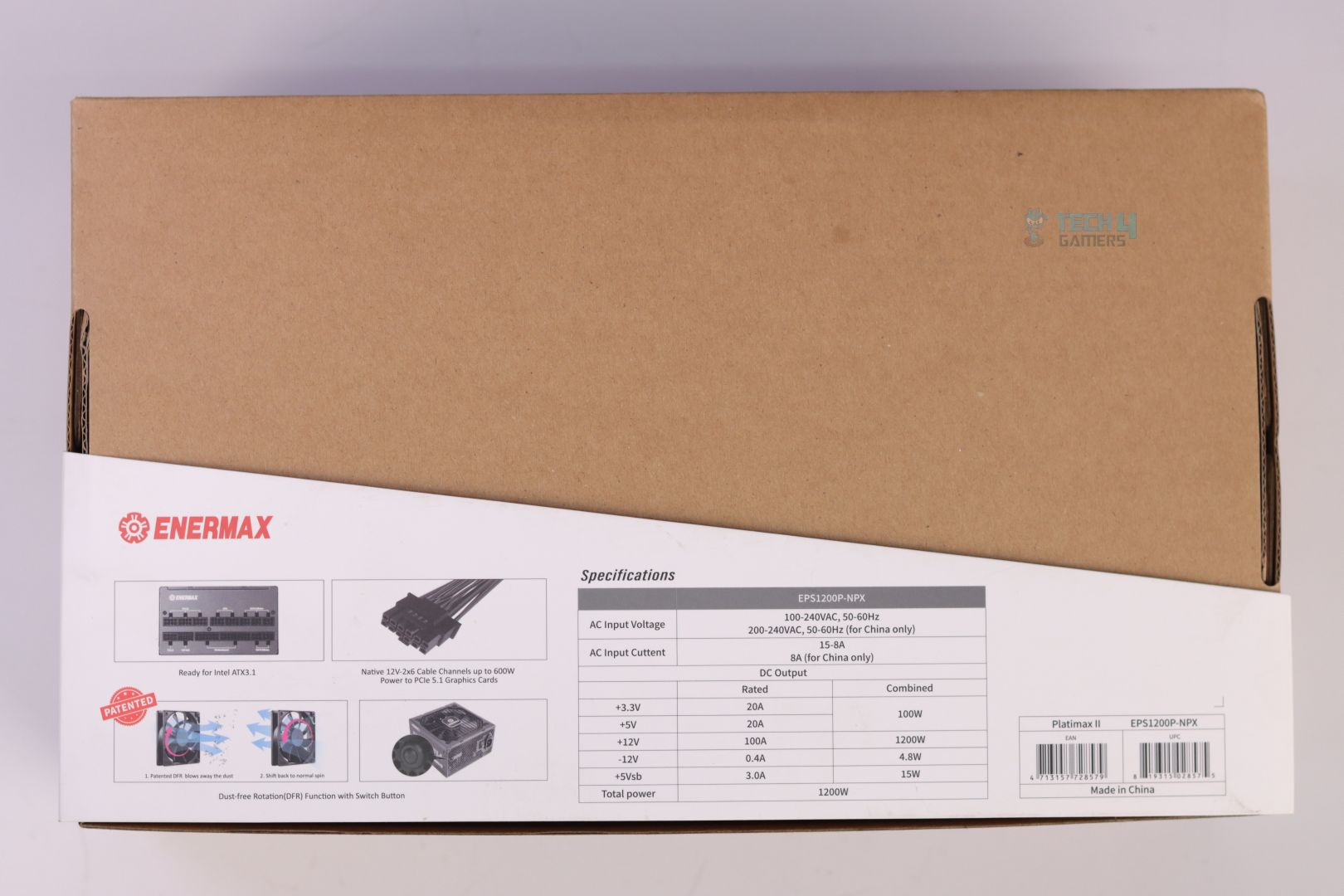

Packaging & Unboxing

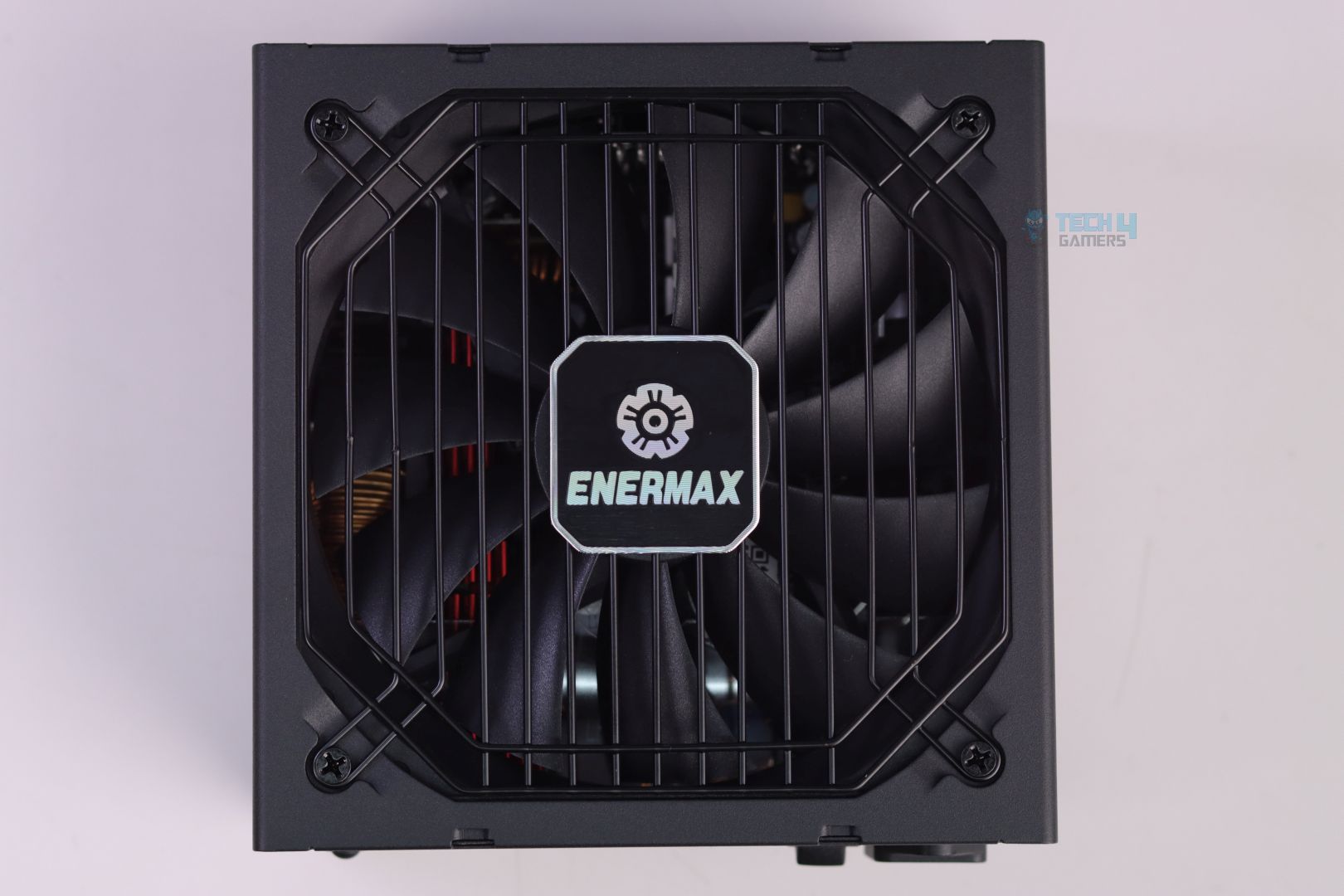

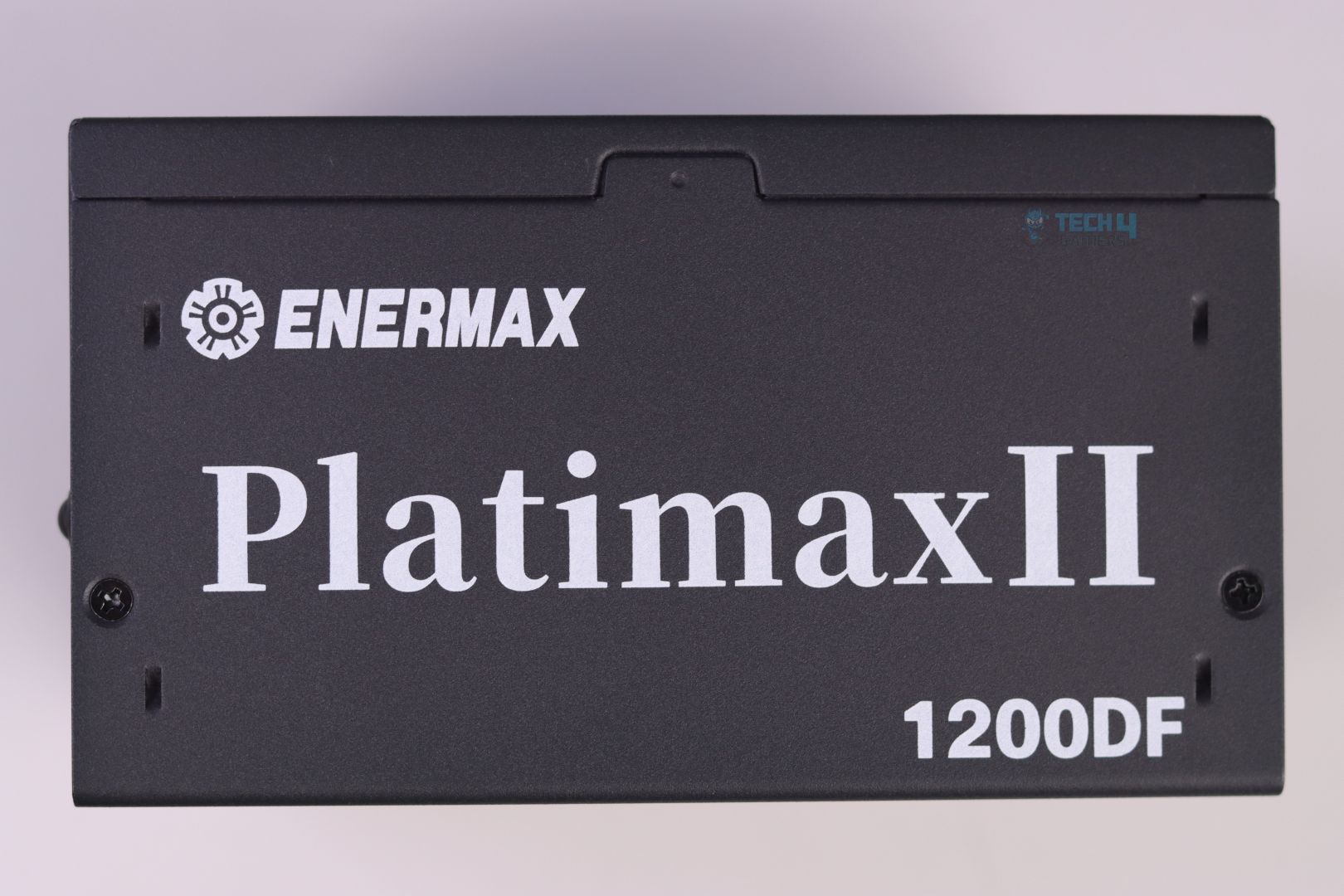

Design

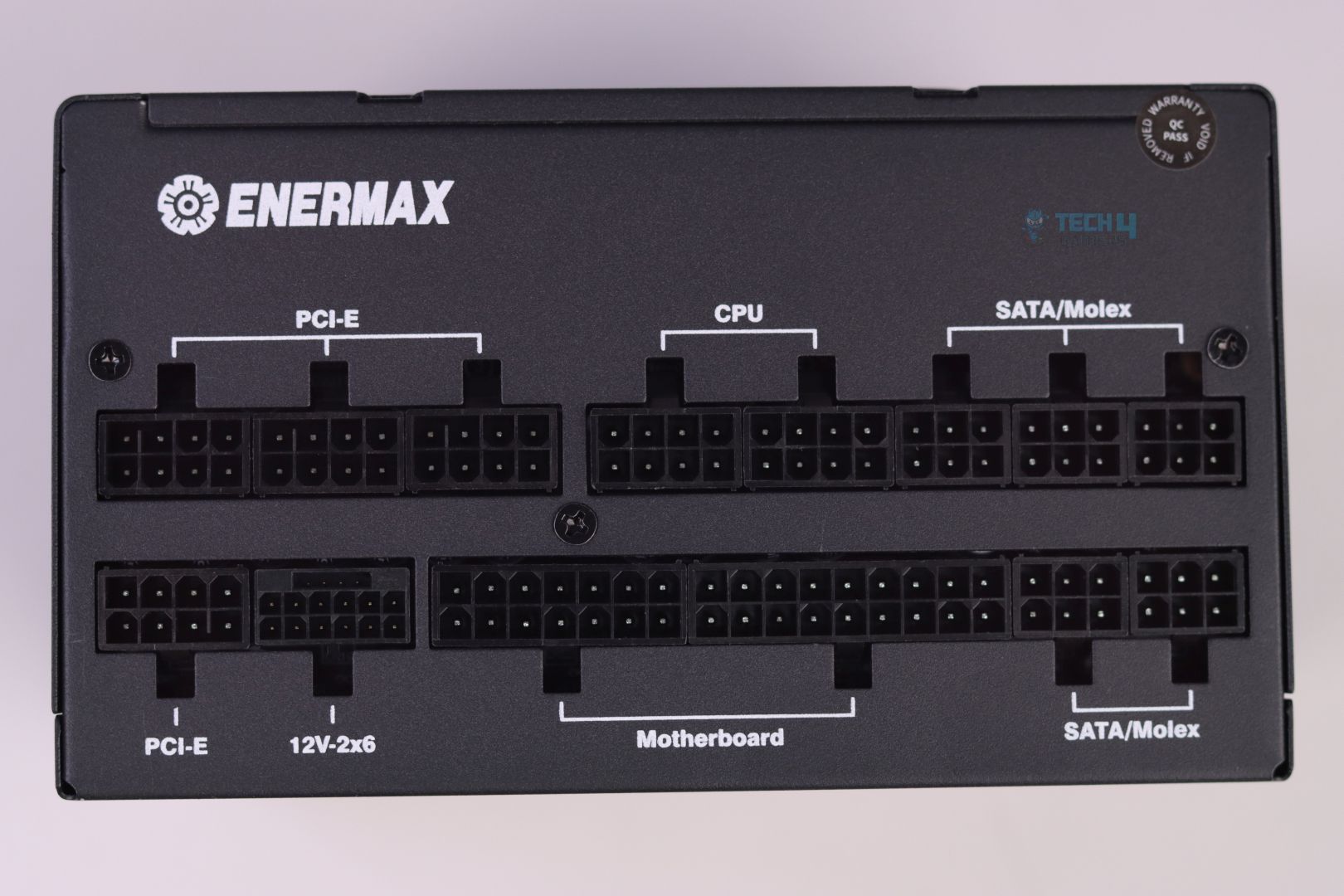

Cable & Connectors

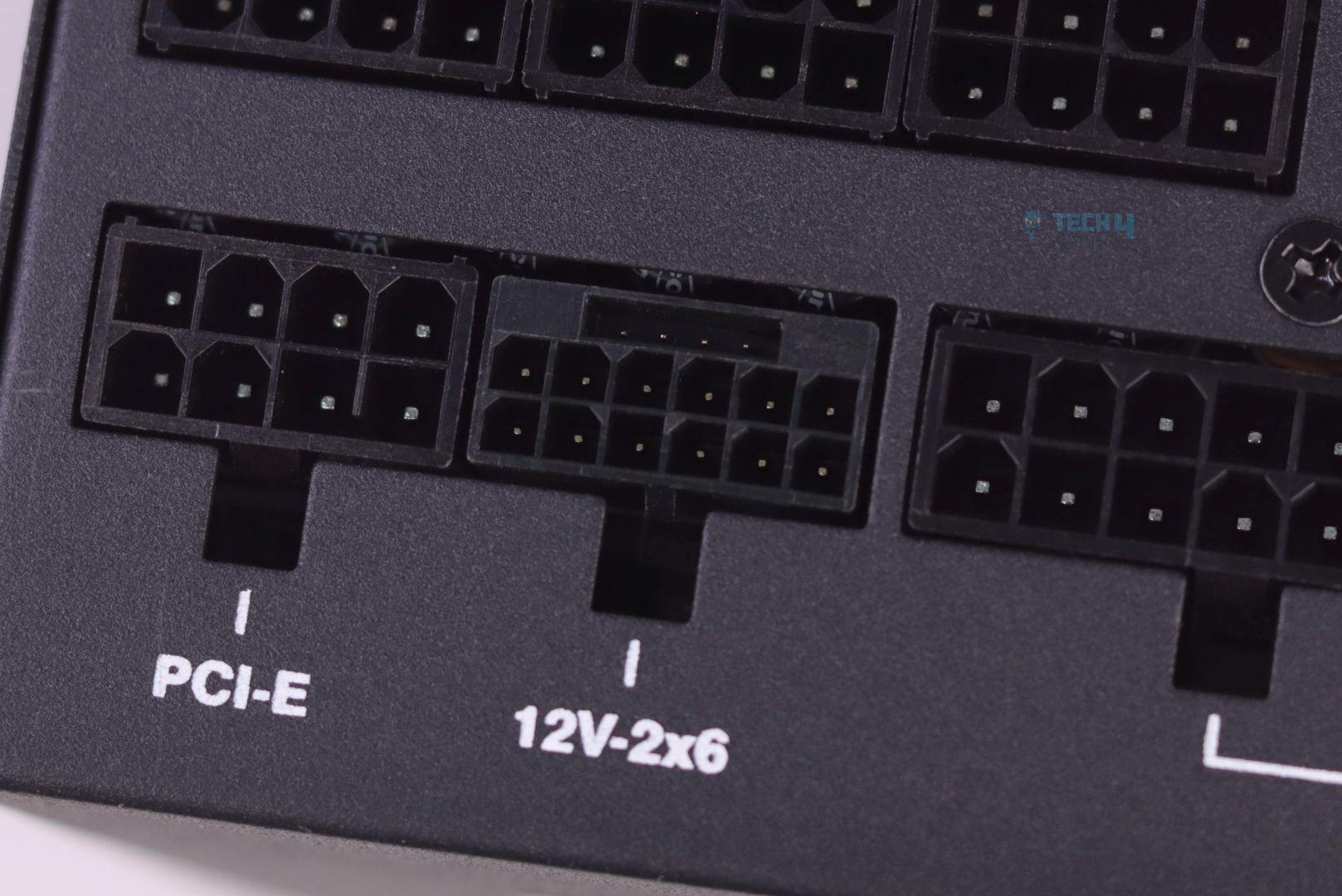

This is where yet again Enermax’s attention to detail comes into play! Unlike many other PSU brands, Enermax is using a much better quality and rugged 12V-2×6 connector. It looks to be gold-plated (can not confirm) but it surely looks way better than the silver colored/coated connector we normally see in almost every other PSU.

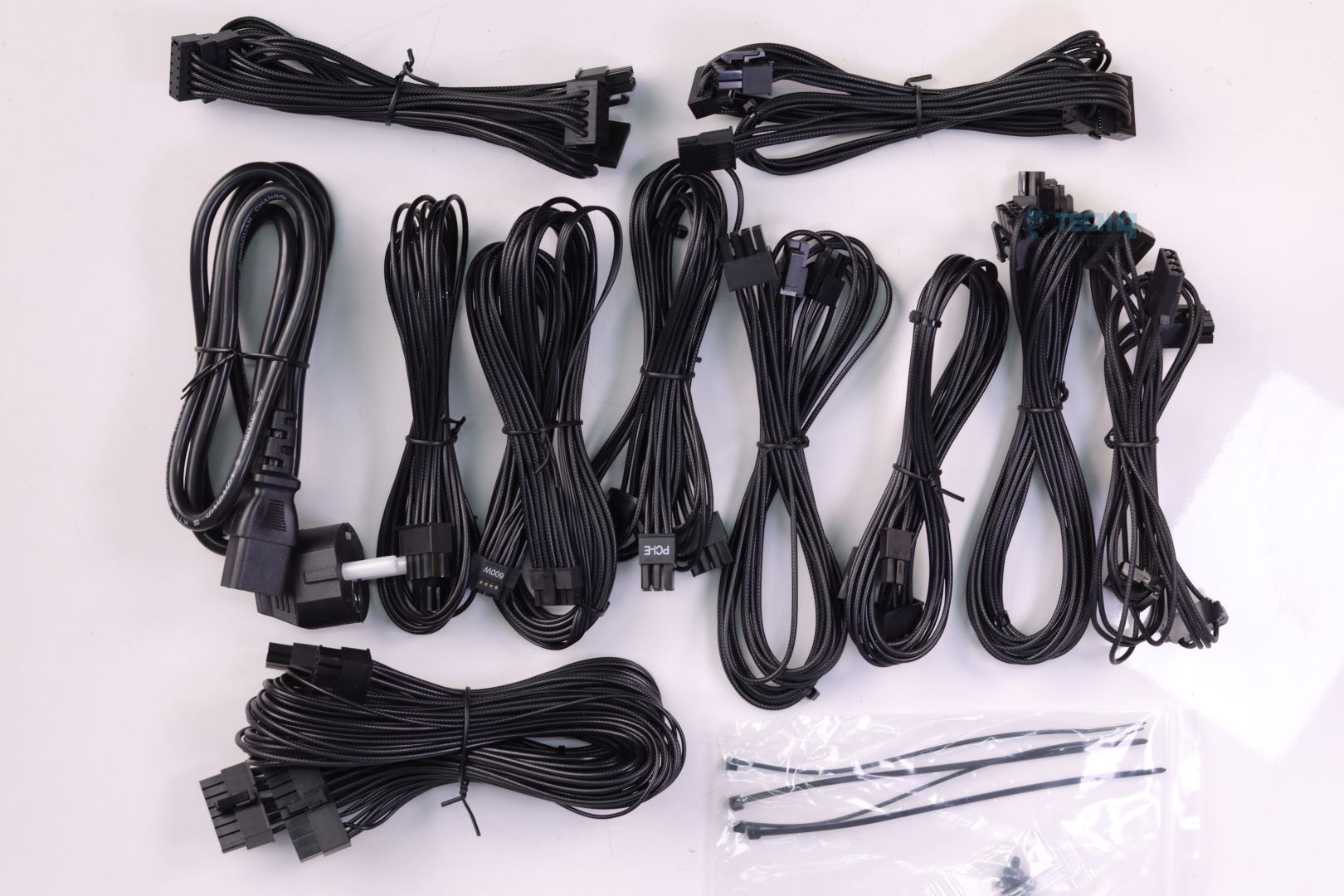

Enermax Platimax II 1200DF comes with premium embossed cables that have much superior rubberized texture which greatly helps in routing them as per your needs without worrying bending them with a permanent dent/flex.
| Connector Type | Quantity |
|---|---|
| Motherboard cable (24/20-pin) | 1x |
| CPU / ATX 12V connectors (4+4-pin) | 2x |
| PCI-E 12V-2×6 connector (600W) | 1x |
| PCI-E connectors (6+2-pin) | 3x |
| SATA connectors | 8x |
| PATA (Peripheral) connectors | 4x |

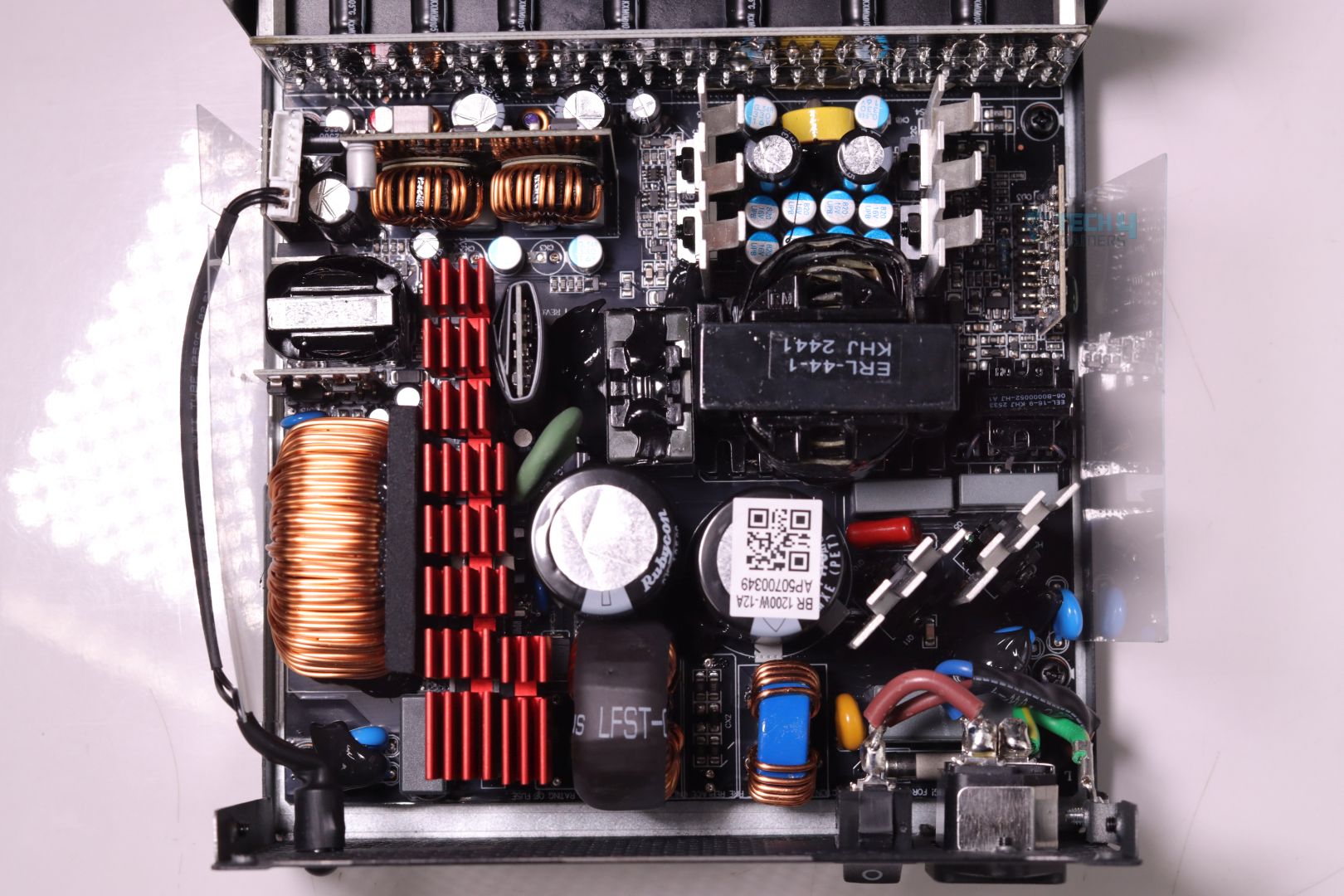

Teardown & Component Analysis
Enermax Platimax II 1200DF looks quite sleek for its rated power, gone are the days when we used to have big and bulky power bricks thanks to the recent improvements in MOSFET and Transformer design which almost every manufacturer is taking advantage of.
The internal PCB layout is densely packed which is normal for a 1200W rated PSU.
It has become very challenging these days to accurately pinpoint who is actually the OEM of the PSU as the recent design improvements and parts selection in the PSU industry has become very similar within several OEMs. But because RSY has been making PSUs for Enermax for quite a while, I didn’t have to spend more time looking for any other OEM.

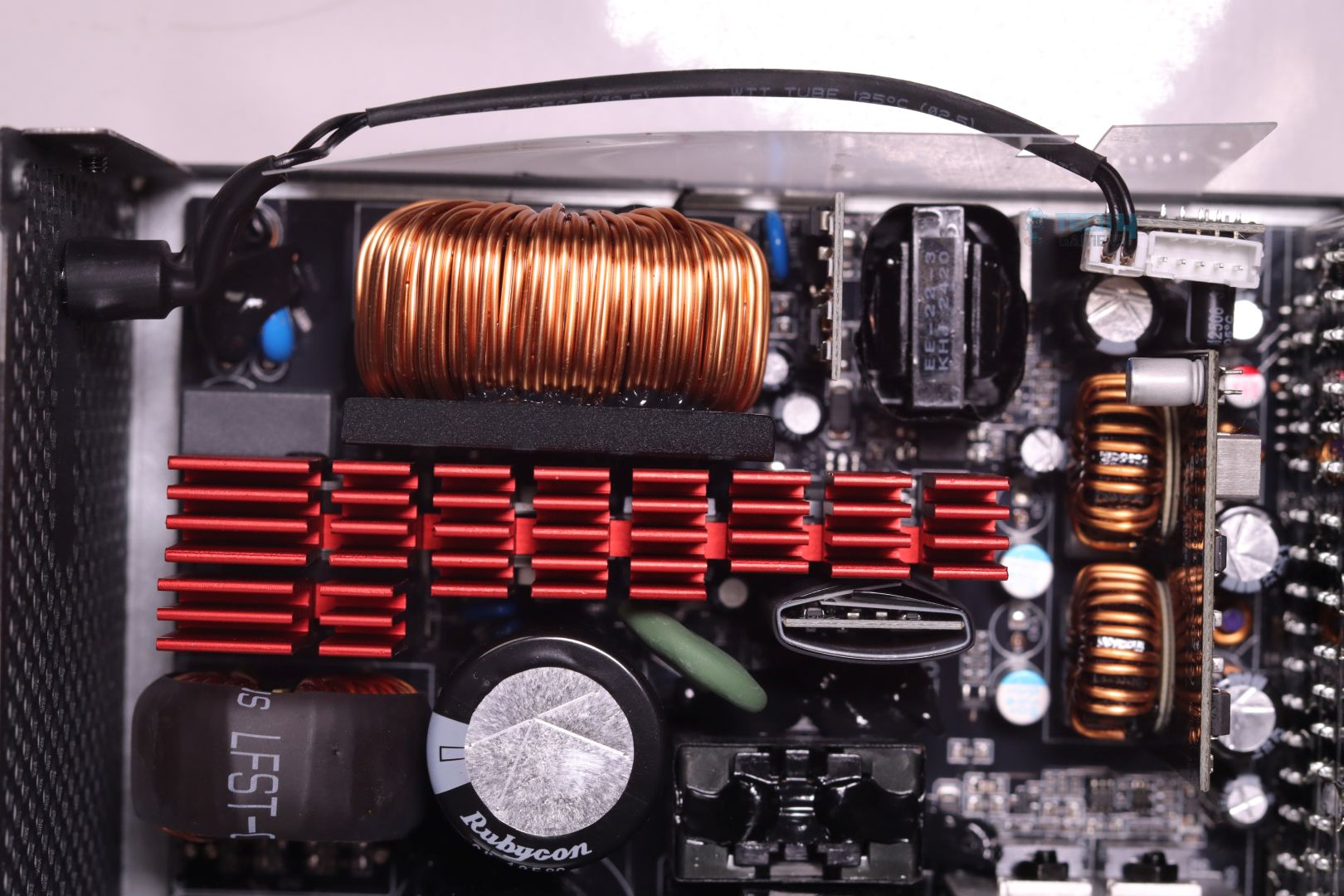

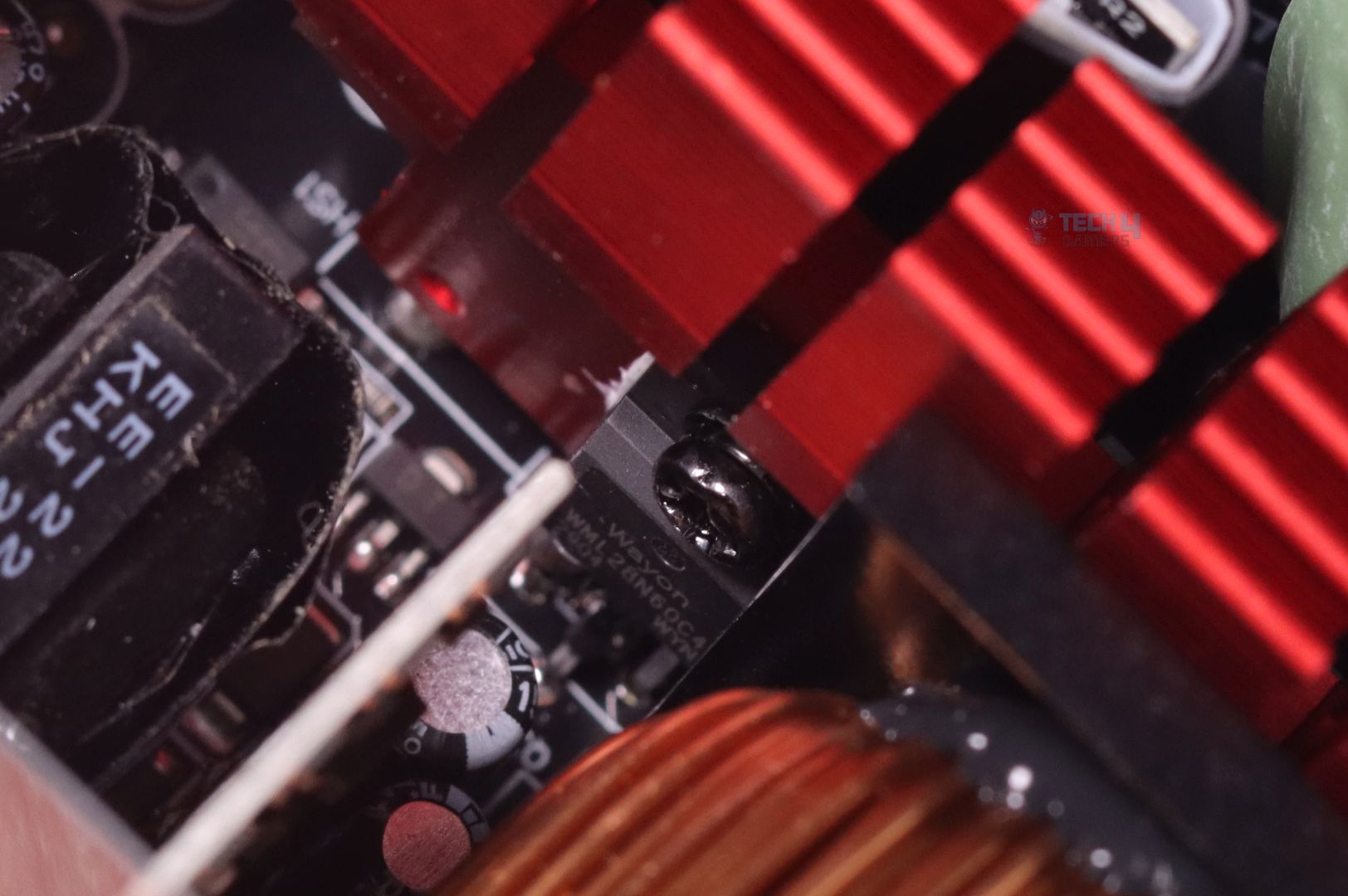

For some reason (maybe for aesthetically pleasing us the reviewers), Enermax has opted for a Velvet Red aluminum heatsink for the APFC section which houses three MOSFETs and two boost Diodes. It is unconventional to see traditional APFC design for the primary side in a Titanium rated PSU, but thanks to higher switching frequency of the improved MOSFETs these days, OEMs don’t have to spend extra going for more expensive Interleaved PFC design.
Talking about the cost savings, as I mentioned earlier, Enermax’s real magic relies on how they design a great performer PSU and still not putting a huge price tag on their PSUs. Here we see MOSFETs, for both APFC & LLC resonant converter, from the brands that don’t seem to be from the ones used in high-end PSU models. It is important to highlight that very recently, due to the unprecedented demand and manufacturing of EVs and high density Lithium batteries, Chinese manufacturers have caught up with the production of good quality MOSFETs, hence why they are even being used in top-tier PSUs of some well-known brands as well.

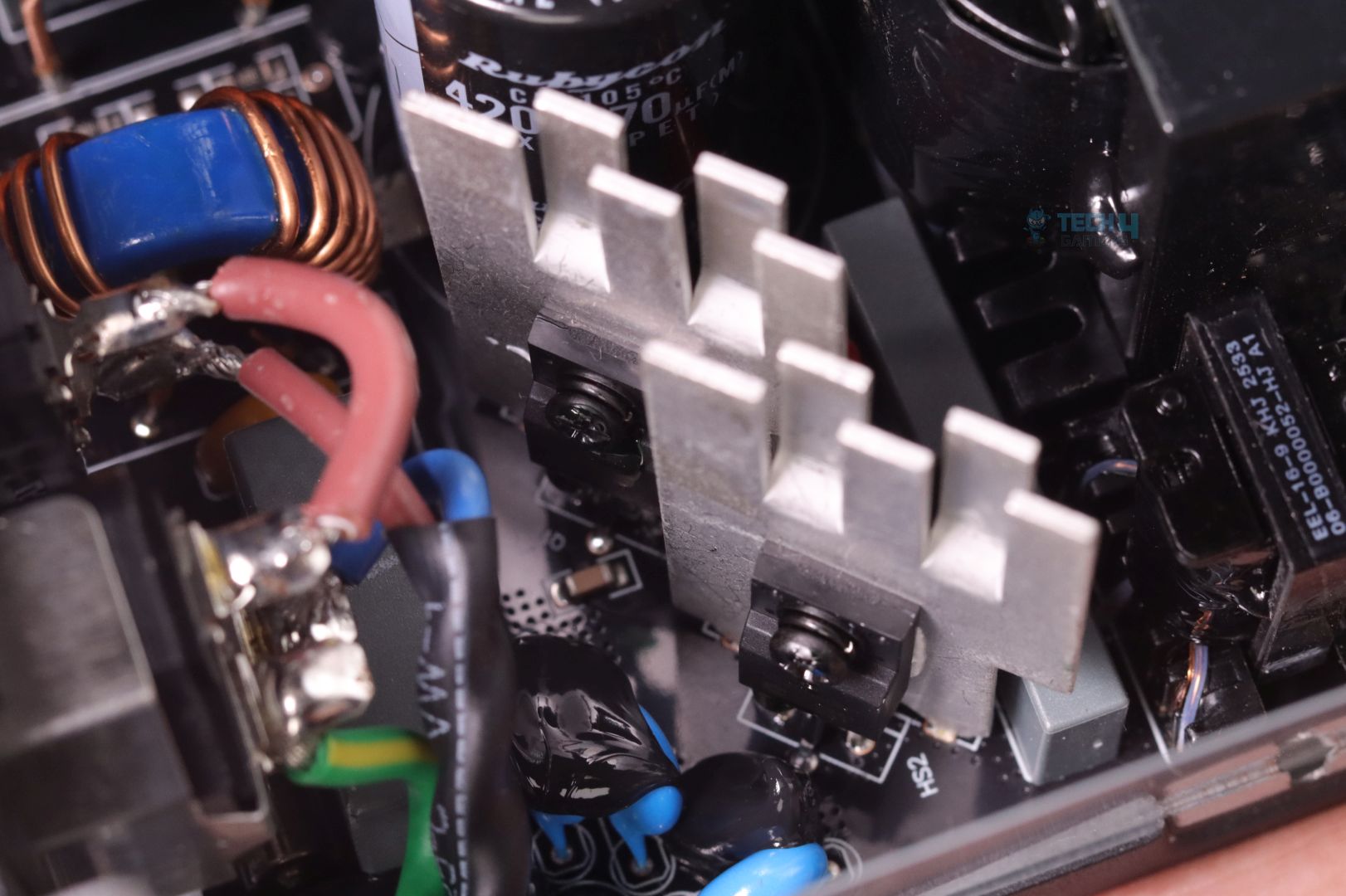

The x4 LLC resonant converter switching MOSFETs make a Full-Bridge LLC topology, and are mounted to an appropriately sized aluminum heatsink.

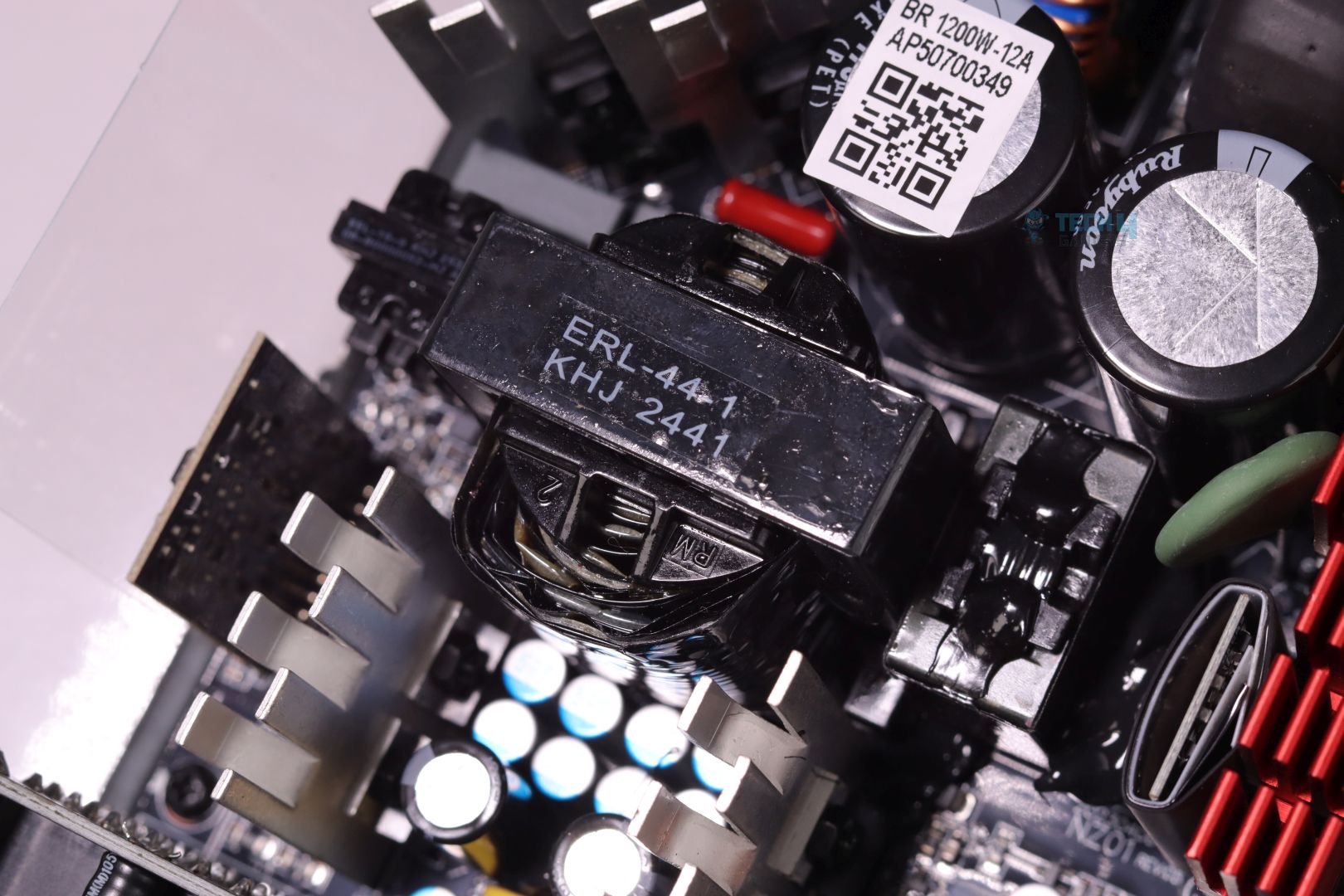

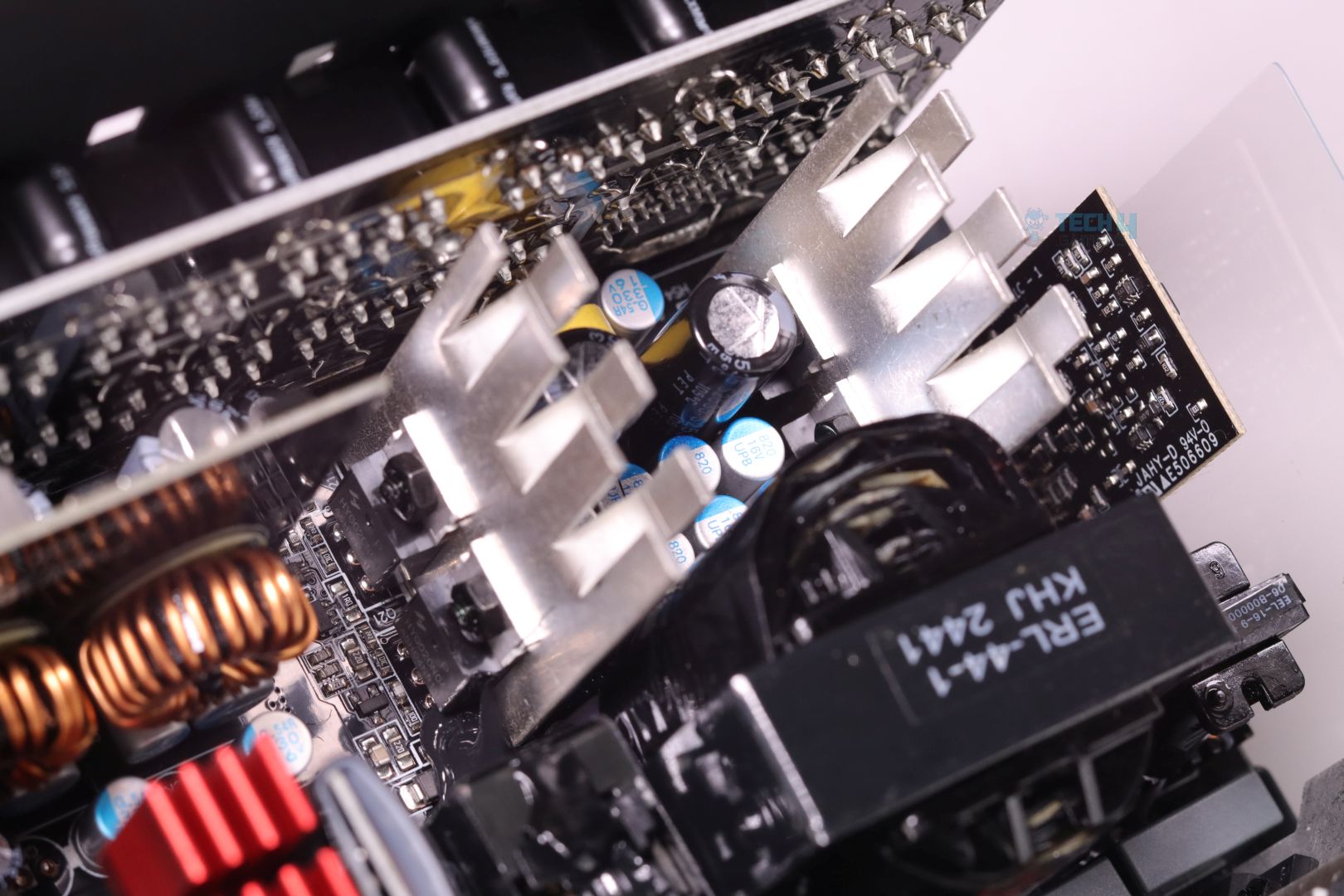

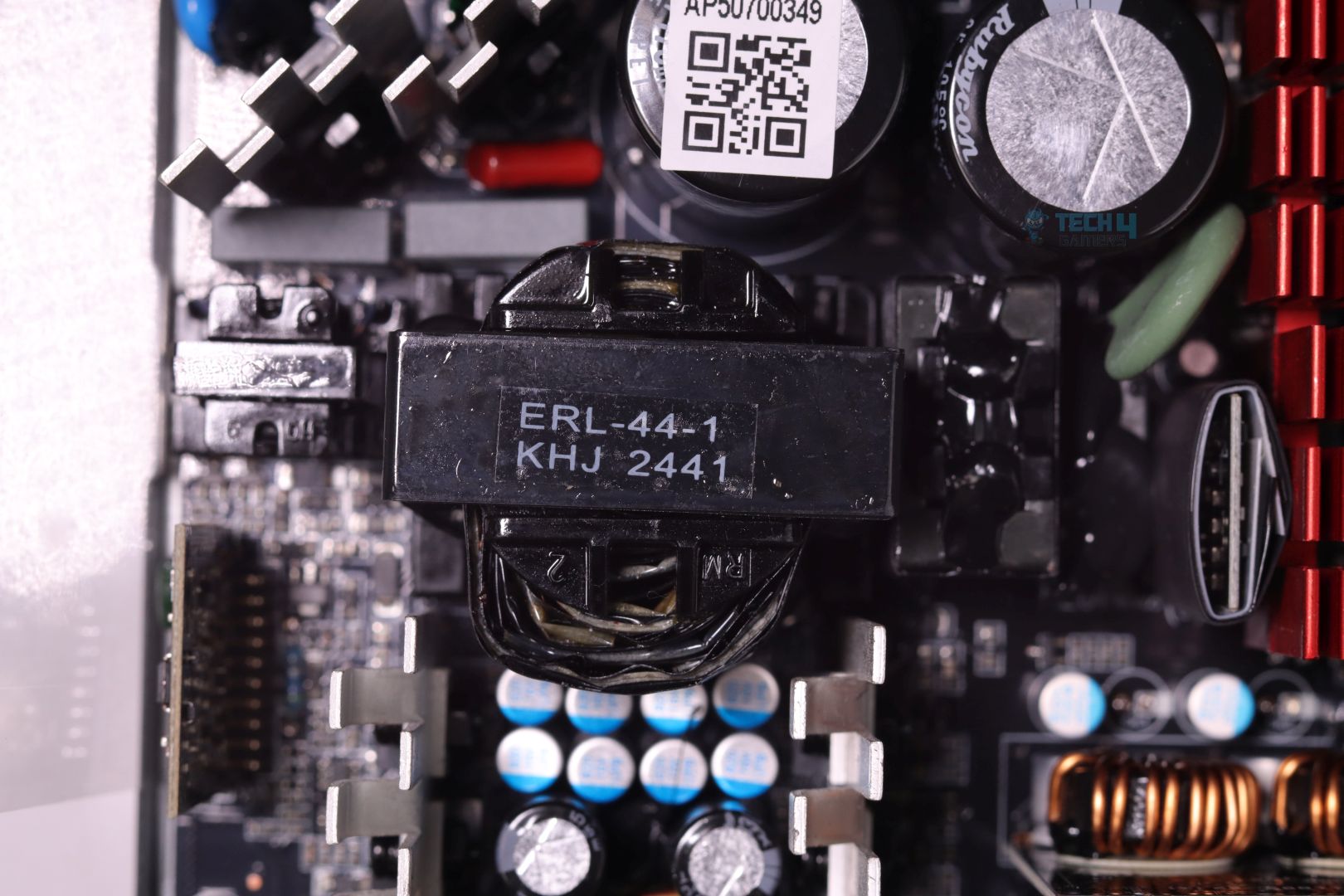

The main transformer is responsible for converting high voltage pulses coming from the APFC to 12V for the secondary section with the help of x8 12V rail MOSFETs. Because the PCB has all of its components placed on top of the PCB, the 12V rail MOSFETs will get adequate airflow and won’t get toasty even during the max workloads.
This 12V rail then powers the DC-DC converters for 5V and 3.3V minor voltage rails which are mounted on a separated vertical daughter board.

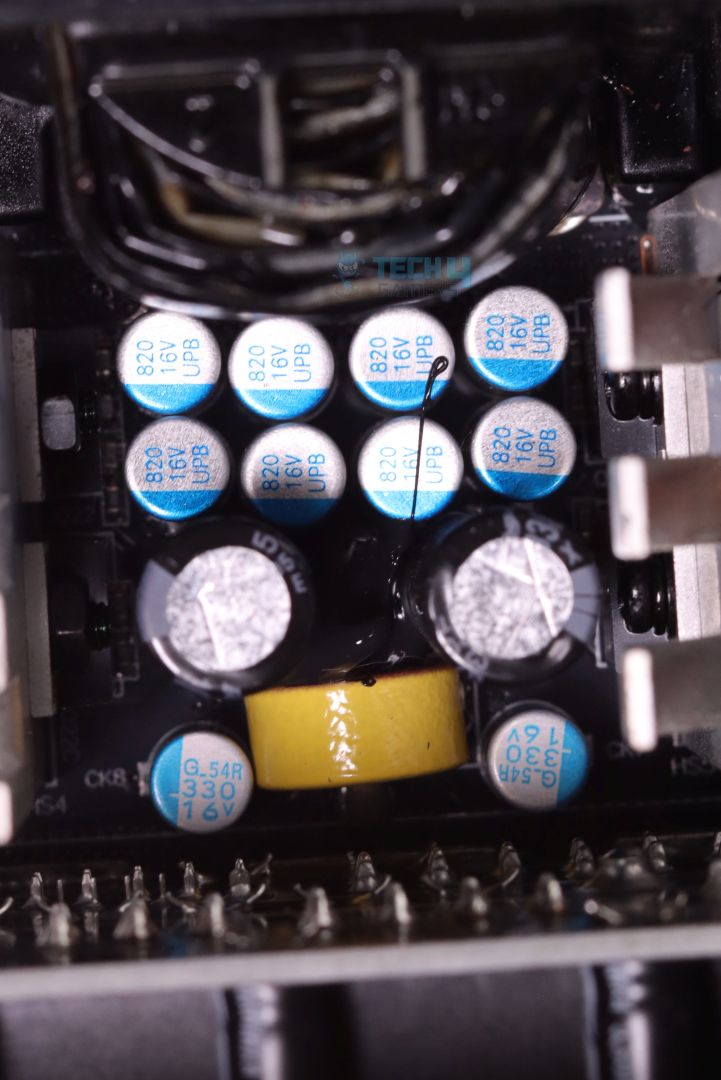

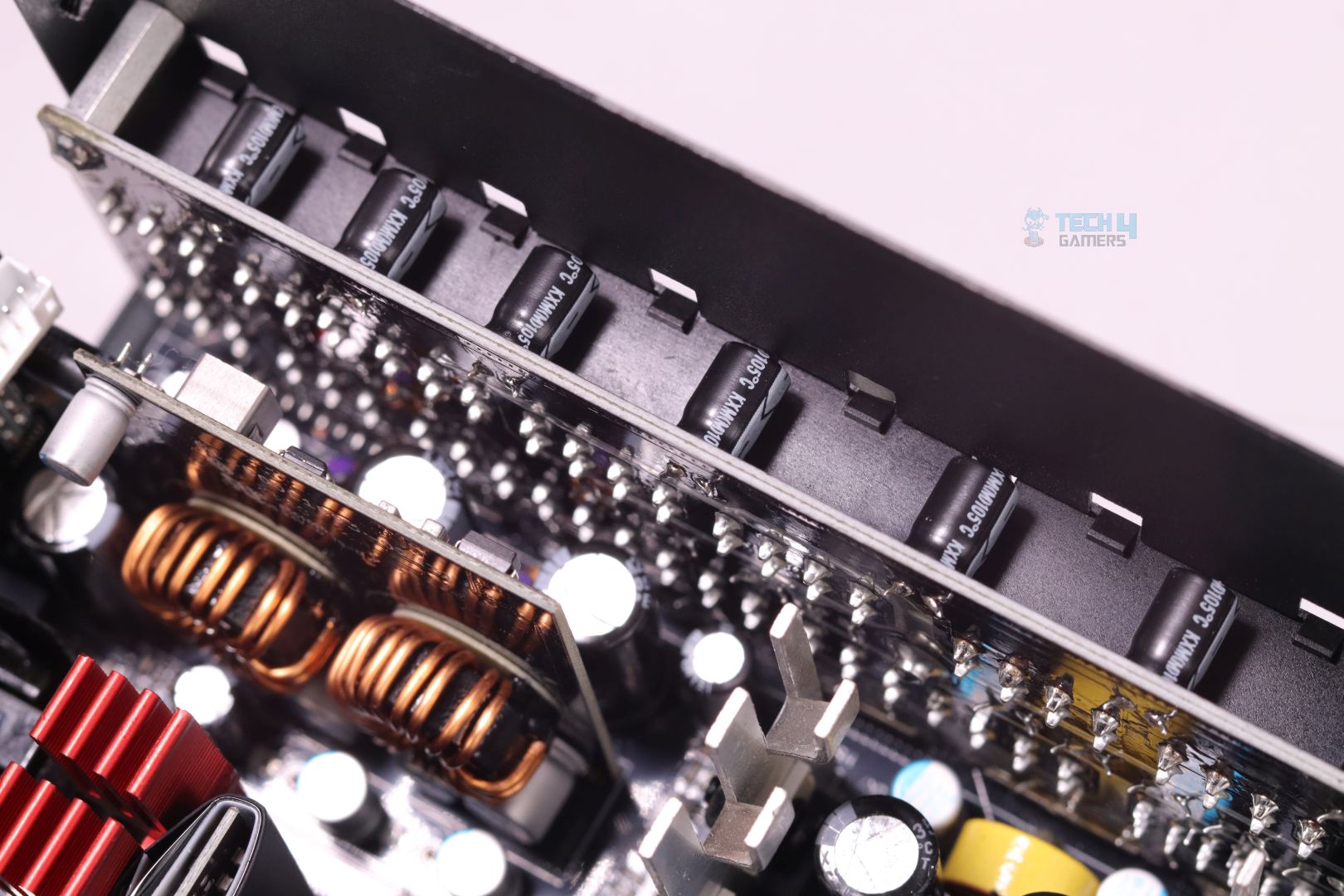

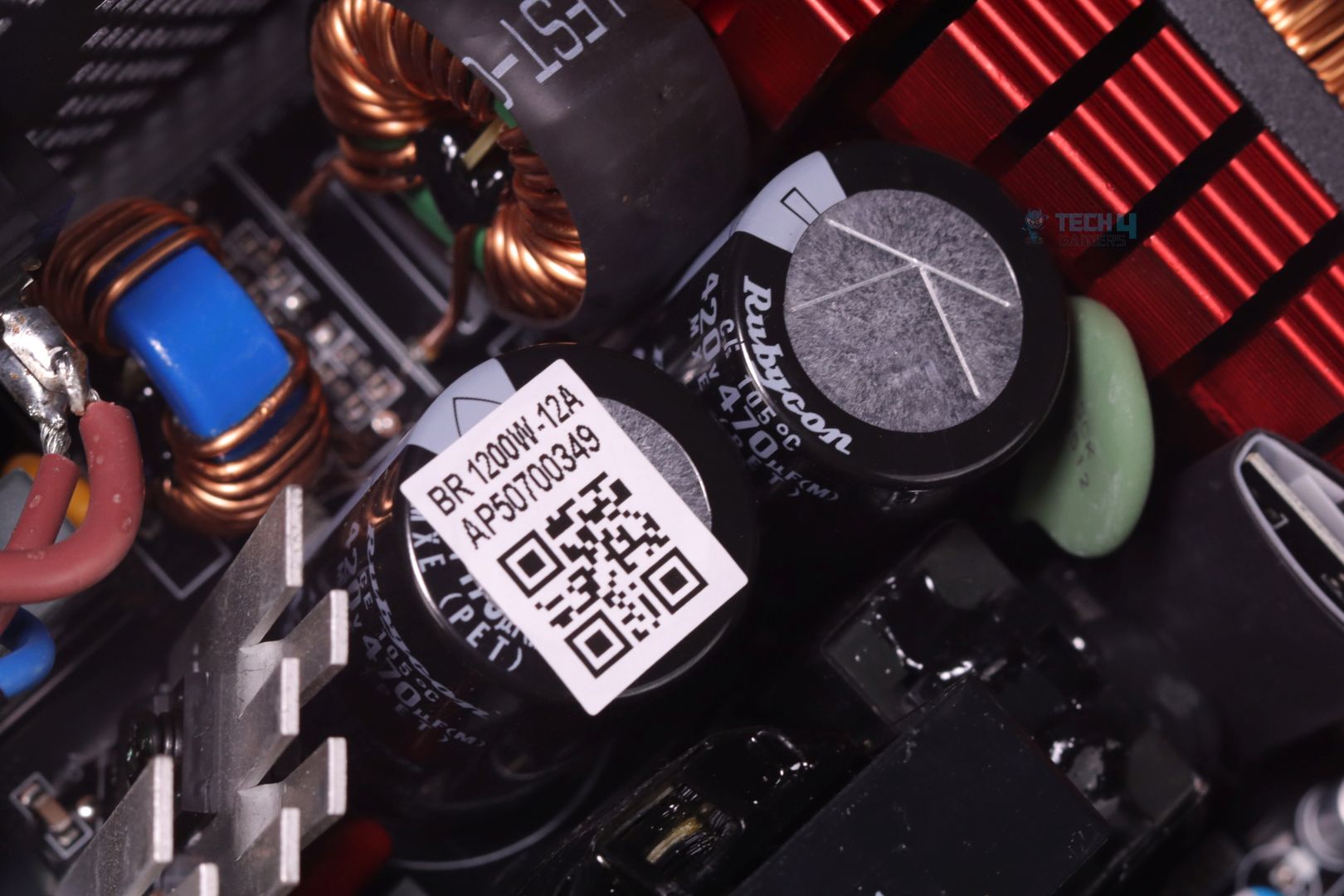

An electrolytic capacitor is one of the most crucial parts in any electrical power appliance. They have a tendency to degrade over time, more notably when they are operated under high temperatures. And this is where Japanese brands still hold the crown of utmost reliability. It is yet again very pleasing to see Enermax still holding on to the top-tier Japanese Electrolytic as well as Polymer capacitors for Enermax Platimax II 1200DF PSU!

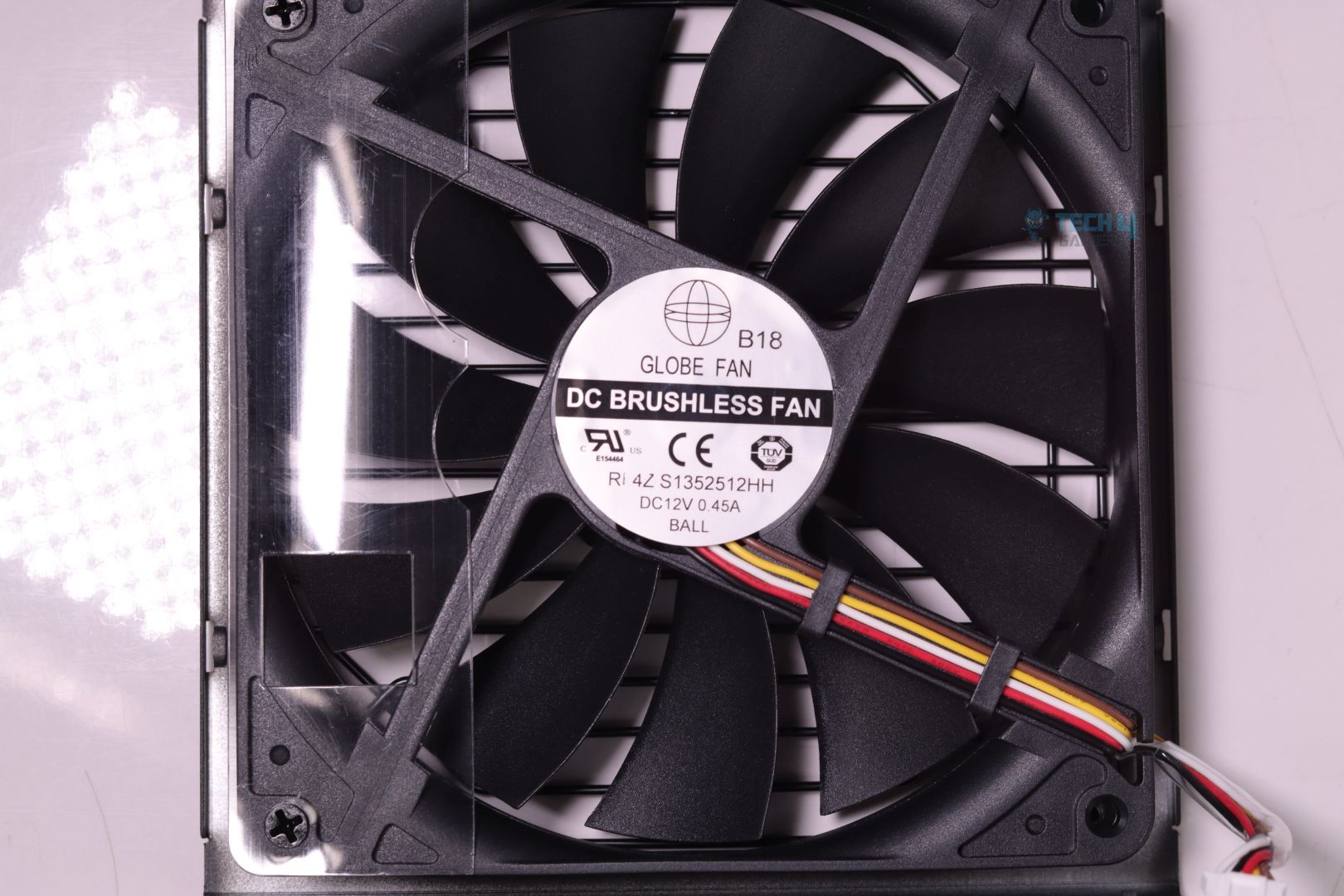

Remember the slogan “EA sports, it’s in the game”? Enermax has been sticking with a similar slogan “DF mode, it’s in the PSU” ever since they devised and patented their Dual Fan rotation technique!
This is quite a unique way for getting rid of the accumulated dust on the fan blades where the fan first starts to spin in an opposite direction for a few minutes and then rotates back to the normal orientation. This very feature has an added cost as normal fans have a backwards operation protection circuit built in. So Enermax has to not only source a different fan uniquely made for their needs, but they also have to implement a separate driving circuit inside the PSU.

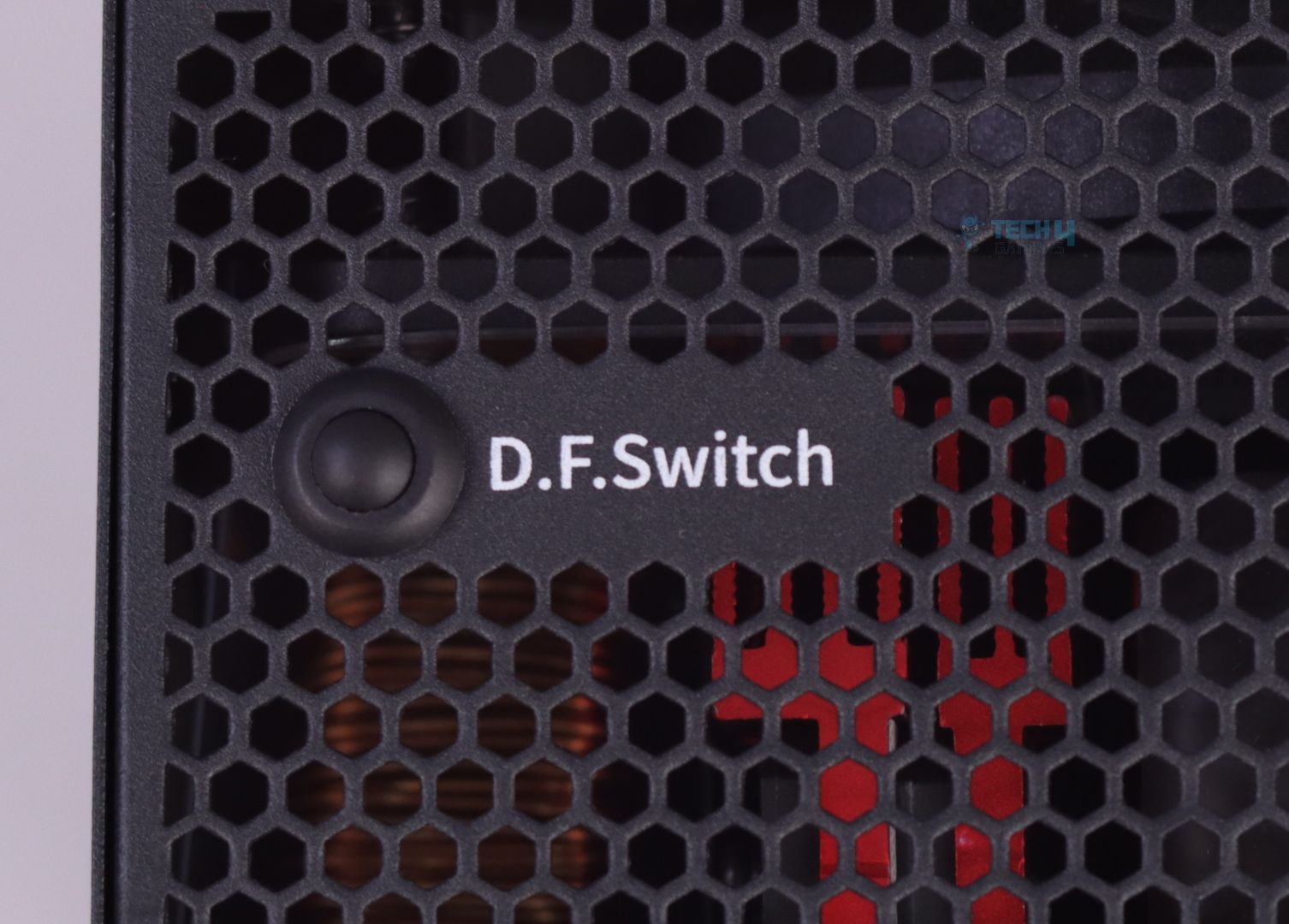

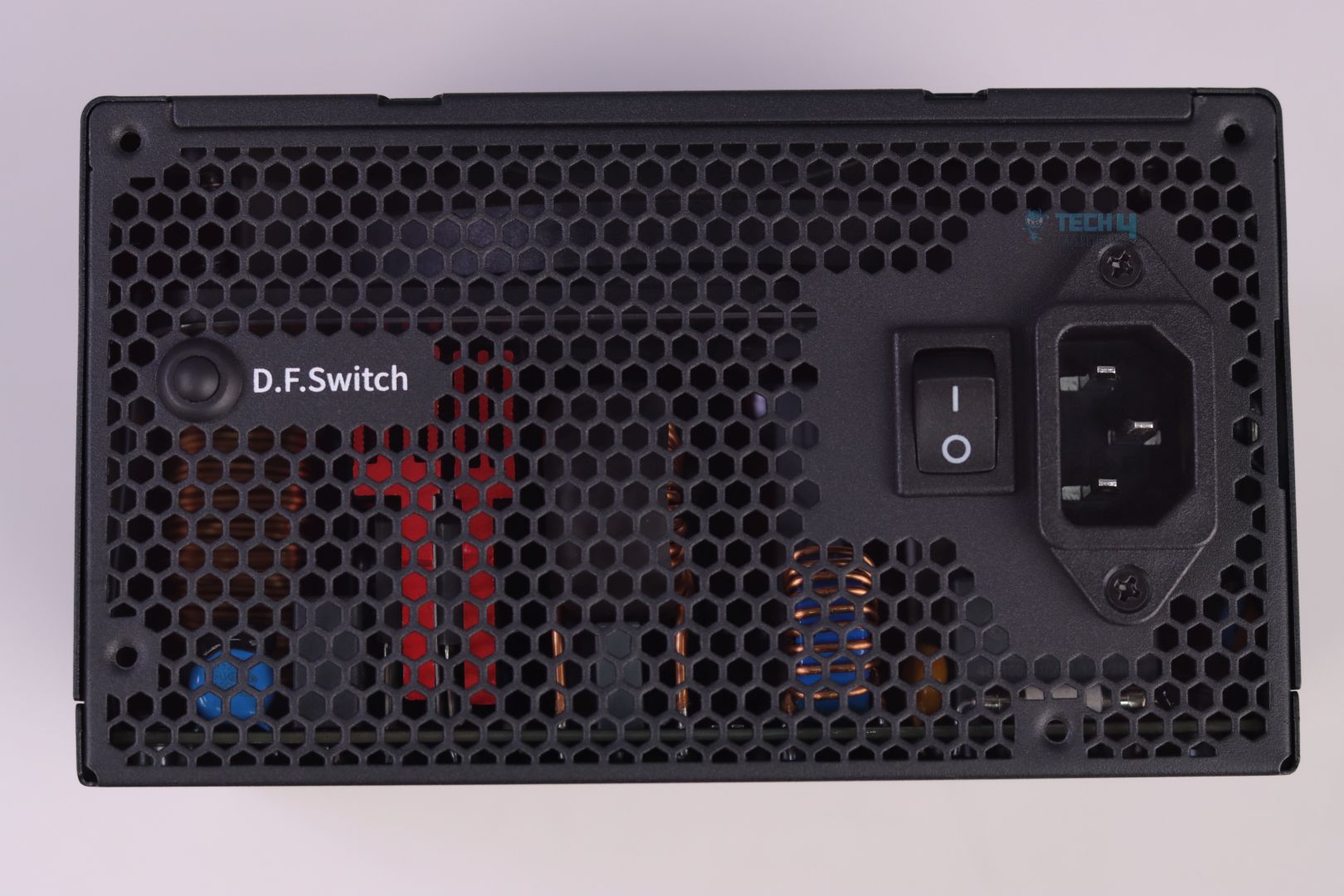

There’s also a DF button present on the mains input side of the PSU which allows users to manually turn on the DF feature if they want to clean up the dust.

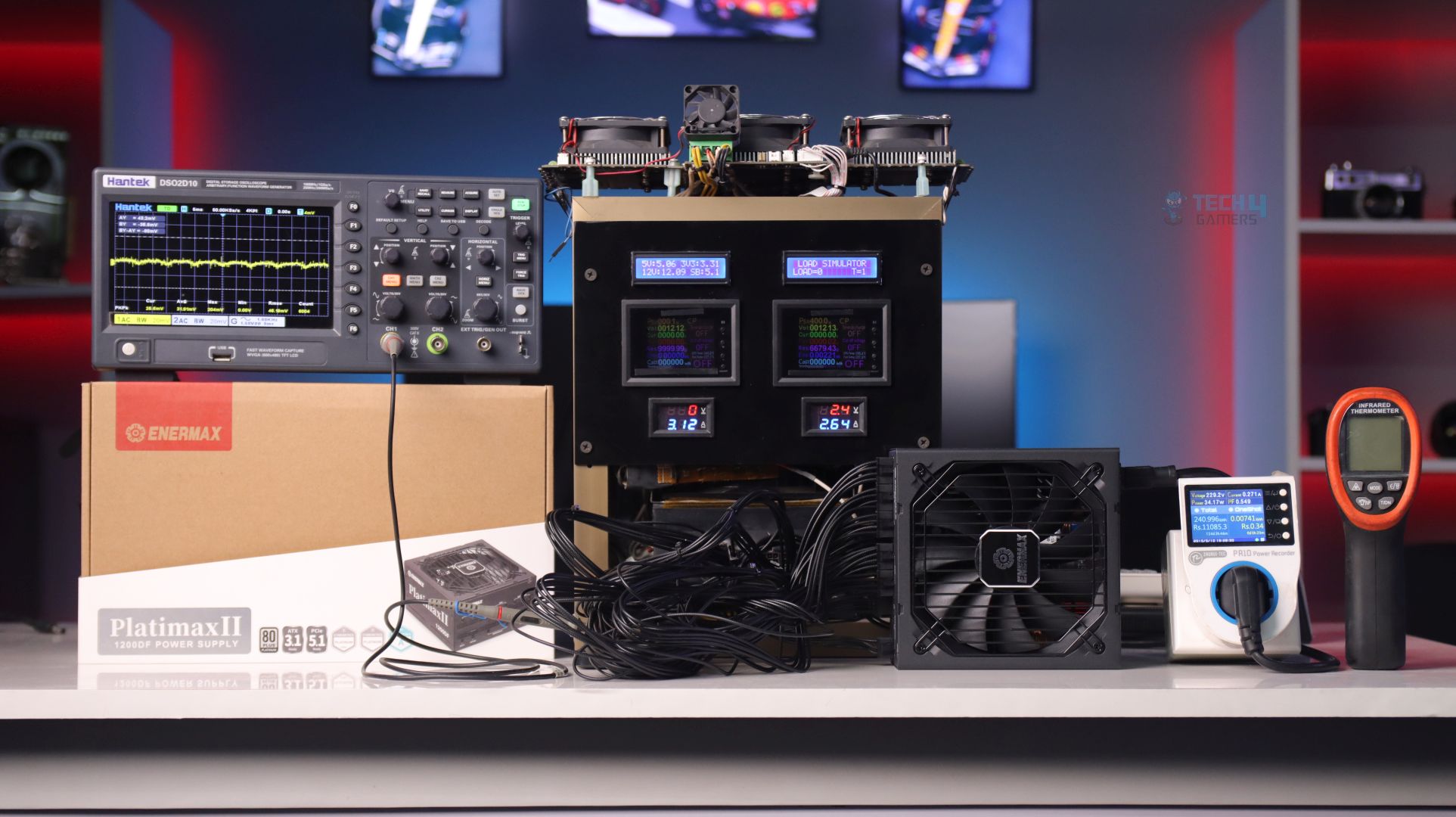

PSU Load Testing

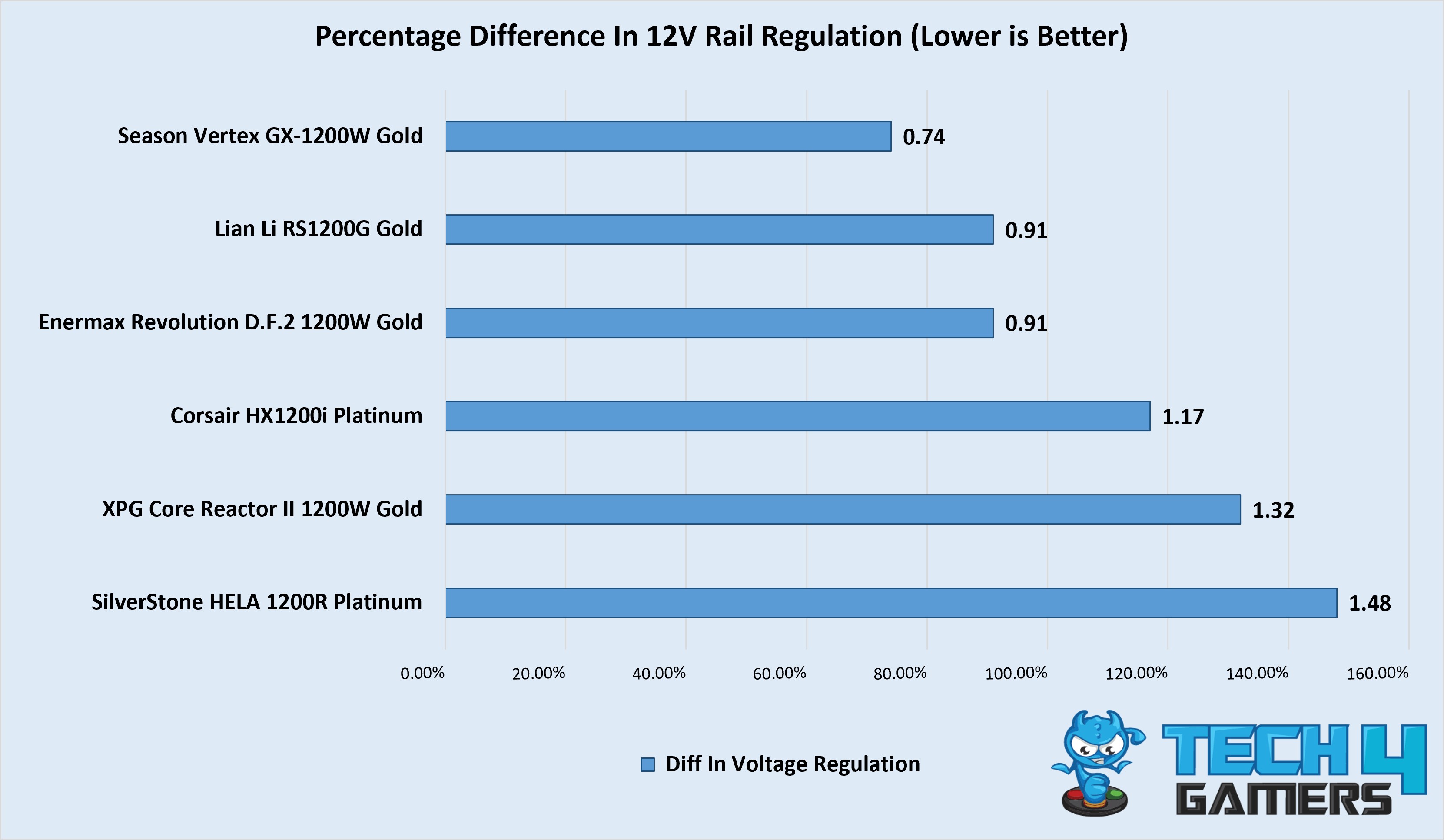

Voltage Regulation
| Load in % | 12V Rail | 5V | 3.3V |
|---|---|---|---|
| 20% | 12.1 | 5.07 | 3.31 |
| 50% | 12.05 | 5.06 | 3.3 |
| 70% | 12.03 | 5.05 | 3.3 |
| 90% | 12.02 | 5.05 | 3.3 |
| 100% | 12.01 | 5.05 | 3.3 |
Voltage regulation has been exceptionally well throughout different load variations. This will ensure stable operation even in excessive power excursions scenarios so that your high-end GPUs like RTX5090 won’t starve for power even for a bit.

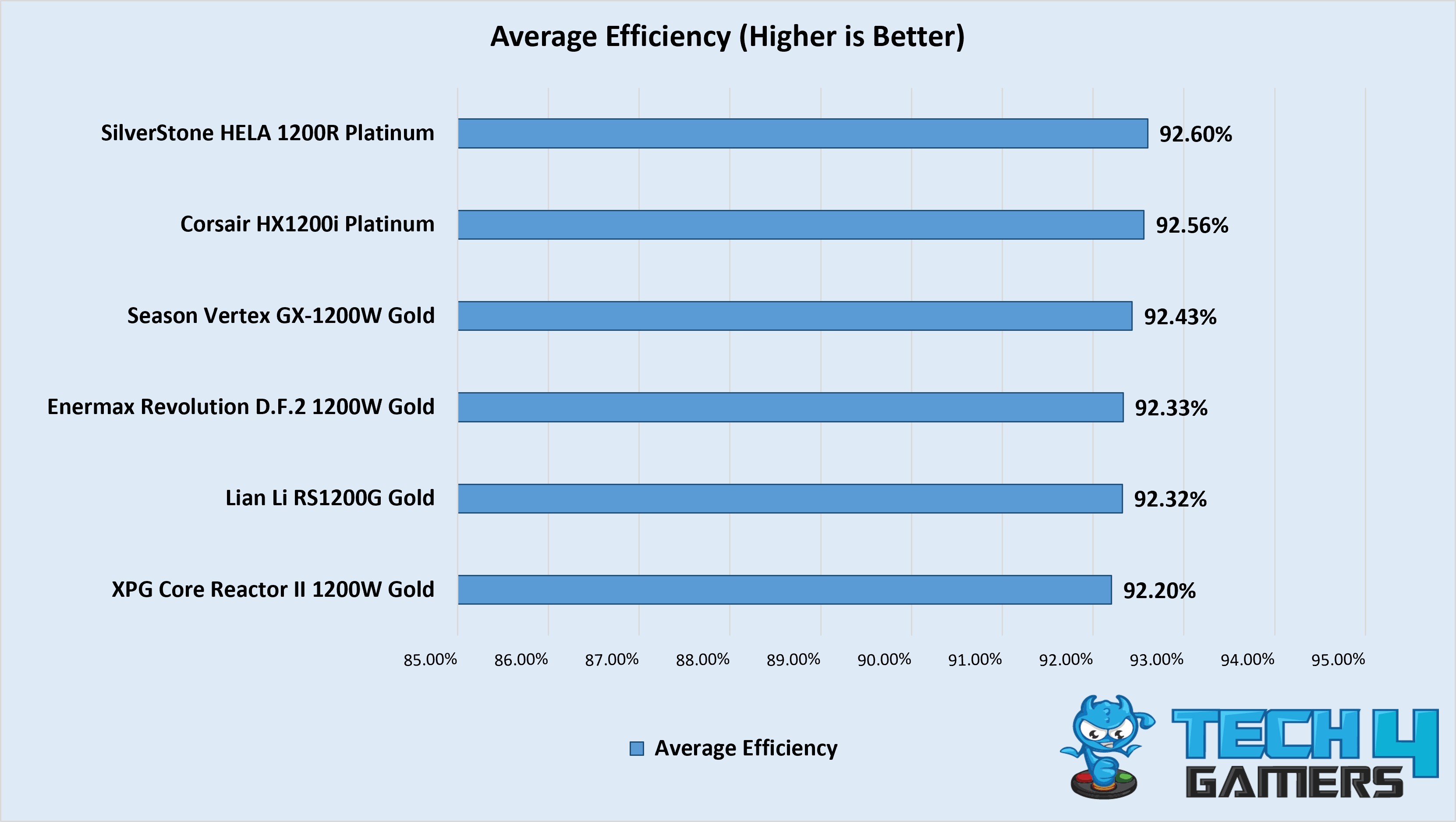

PSU Efficiency
| Load in % | Efficiency | Power Factor |
|---|---|---|
| 20% | 93.45% | 0.951 |
| 50% | 94.19% | 0.973 |
| 70% | 93.85% | 0.975 |
| 90% | 92.78% | 0.977 |
| 100% | 92.23% | 0.977 |
With the average efficiency of 93.30% and 94.19% at 50% load, it easily puts Enermax Platimax II 1200DF in the top-tier Platinum rated PSUs. Thanks to these high efficiency numbers, its 135mm dual ball bearing fan (which is noisier than fluid dynamic bearing fan) will not have to work that hard.

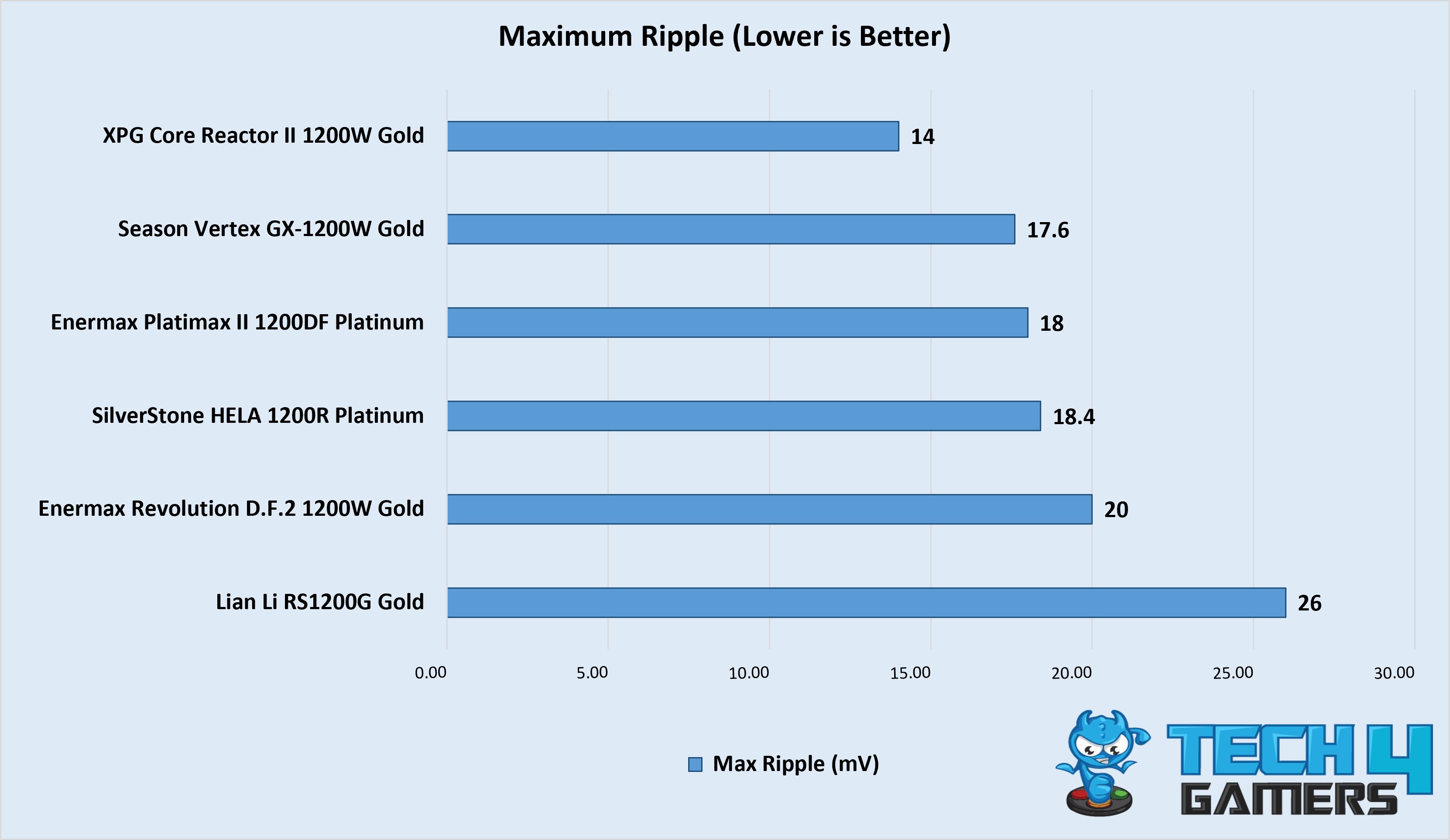

Voltage Ripple Performance
| Load in % | 12V Ripple |
|---|---|
| 20% | 12 |
| 50% | 15.2 |
| 70% | 14.4 |
| 90% | 16 |
| 100% | 18 |
Because of the very traditional design choice, the voltage ripple results came out to be as expected. Enermax Platimax II 1200DF still performed really well in this test but maybe we are already spoiled by what Enermax had already done with their PlatiGemini 1200W PSU.

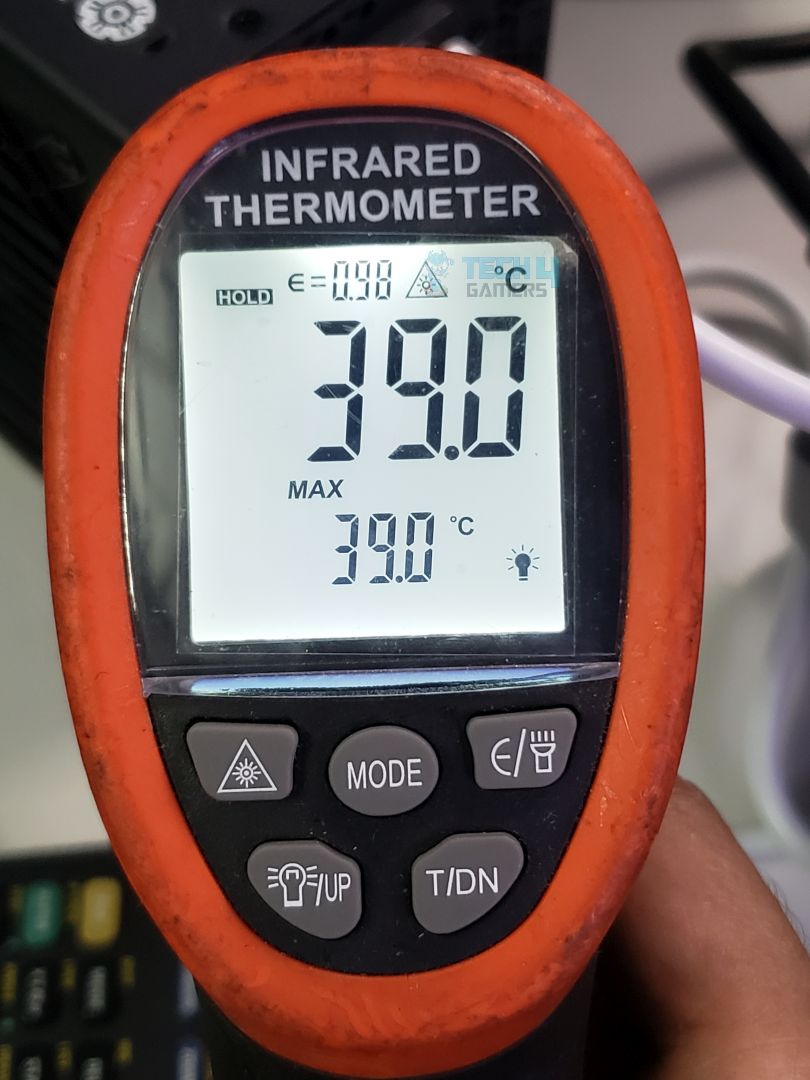

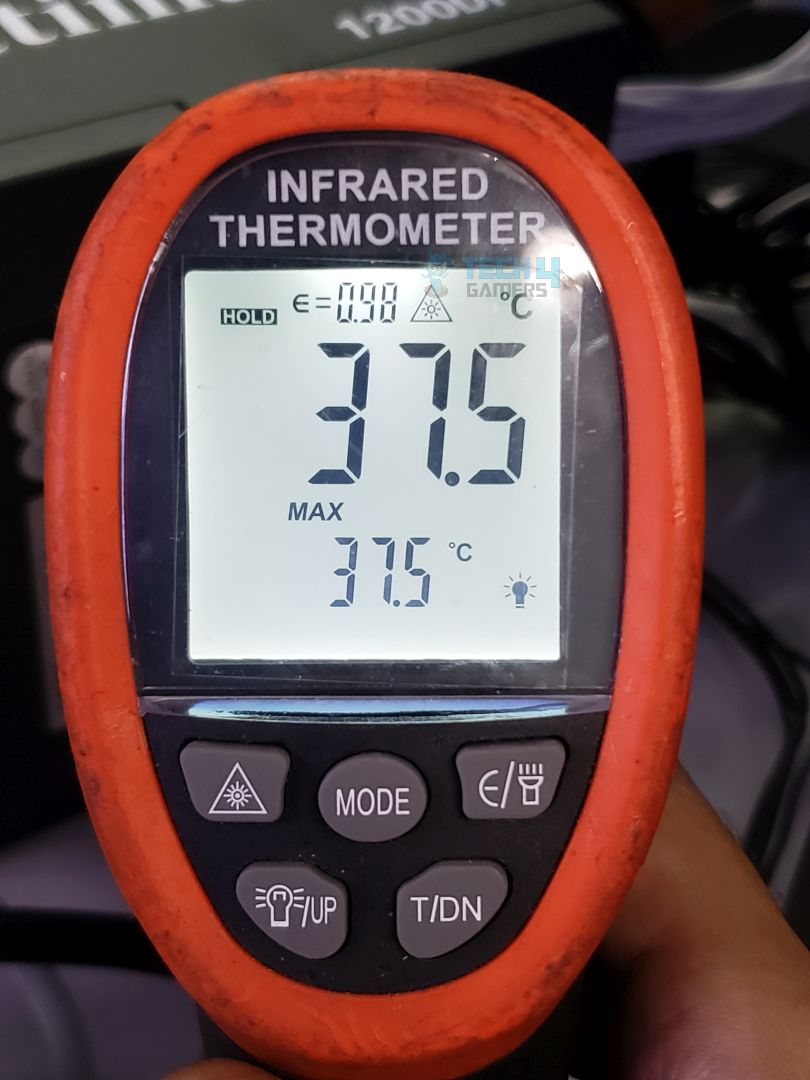

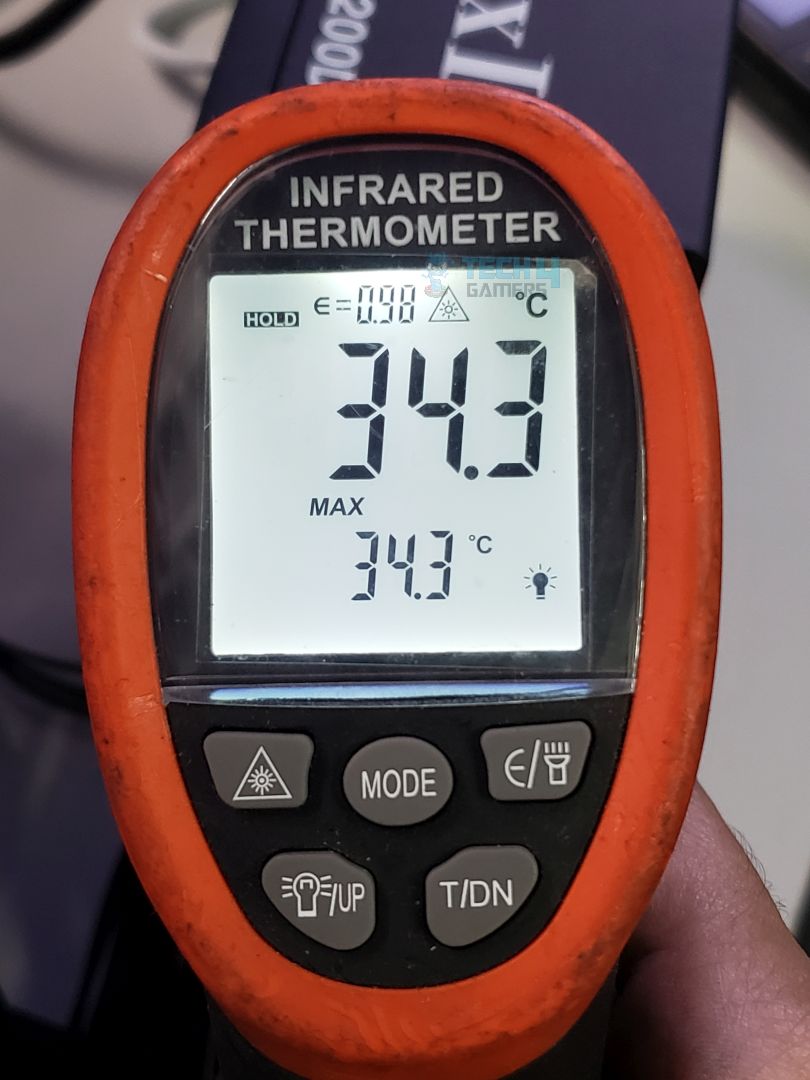

Temperature
The PSU remained decently cool throughout the test. Now 63.9C on the back may look very hot, but it’s due to the MOSFETs dumping down all their heat on that specific spot. You may want to be careful leaving couple of centimeters of gap between the PSU and your PC case.
Just like the previous Lian Li RS1200G PSU I tested earlier, Lian Li SP1000P has the same problem of loud fan noise. Though it only gets extremely louder at max 1000W of load (which I don’t think you will be utilizing on your Mini-ITX builds) but still at around 800W of load the fan gets pretty loud.
I think if there was a way to bypass zero-RPM fan mode with a Hybrid-Fan mode switch on the back (as many other PSUs) this could have surely helped keeping the fan speed down.
Should You Buy it?
Buy It If
✅ You want premium performance on a budget: Enermax sneaks this high-end, top-performing PSU into the mid-tier price segment, offering excellent value without charging the premium brand-name tax of its competitors.
✅ You want a compact and quiet build: It manages to keep its physical footprint small while maintaining near-silent operation, utilizing a smart fan curve that only kicks in once you cross roughly 60% of the rated load.
✅ You care about top-tier efficiency: The stellar 80 PLUS Platinum certification ensures maximum energy efficiency, allowing the unit to run significantly cooler under heavy workloads.
✅ You want the ultimate long-term reliability: Shattering standard industry offerings of 5, 10, or even 12 years, Enermax backs this unit with an unprecedented 13-year warranty for absolute peace of mind.
Don’t Buy It If
❌ You expect absolute silence right at boot-up: To keep itself clean, the Dust Free (DF) rotation design spins the fan backward for a few minutes whenever you first turn the system on. It’s a minor, brief inconvenience, but you will definitely hear a short burst of fan noise at startup.
My Final Thoughts
Enermax’s mantra of blending quality, zero compromises for the end-user with great value for money, works like a charm!
Enermax Platimax II 1200DF testing proves the superior capabilities of Enermax and their dedication for providing reliable and top quality products to the end user.
