- TMR uses quantum tunnelling across magnetic layers to measure stick movement.
- It has the potential to eliminate physical wear and stick drift.
- TMR uses significantly less power than Hall-Effect sensors, making it ideal for extending battery life.
- TMR allows competitive players to set near-zero dead zones with instant, linear tracking and zero central wobble.
For the longest time, stick drift has been the single most persistent flaw in interactive gaming hardware. From flagship home console gamepads to portable handheld systems, mechanical analogue sticks have led controllers to an early grave.
The introduction of contactless Hall-Effect sensors acted as the first line of defence against graphite wear and phantom inputs. Recently, however, a new contender has emerged known as TMR Tunnel Magnetoresistance, establishing itself as the ultimate standard in hardware precision.
The technology uses quantum mechanics rather than physical friction or large magnetic-field variations. It promises not just to eliminate stick drift but also to improve battery life, centring accuracy and response times.
The Anatomy of an Eternal Flaw

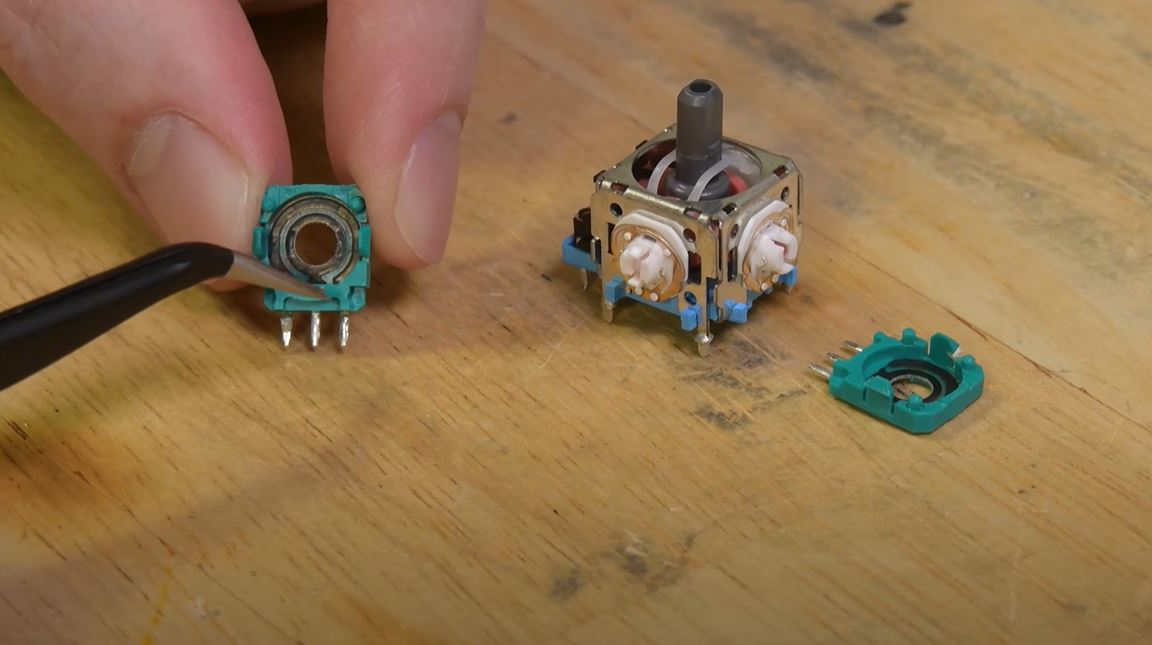

To understand why TMR is generating immense excitement in the gaming industry, one must look at how traditional analogue sticks work. Standard joysticks rely on potentiometers. These are small components where physical metallic wipers rub against conductive carbon tracks to measure directional movement. Every movement of the analogue stick generates friction, which gradually wears down the contact points, creating microscopic dust until the controller registers as movement even when at rest.
The undermining phantom inputs cause player frustration and inevitably require expensive repairs and replacement. For generations of gaming hardware, potentiometer degradation on devices such as the Nintendo Switch 2 was considered the most unavoidable cost of analogue control.
Where Hall-Effect Succeeded and Stumbled

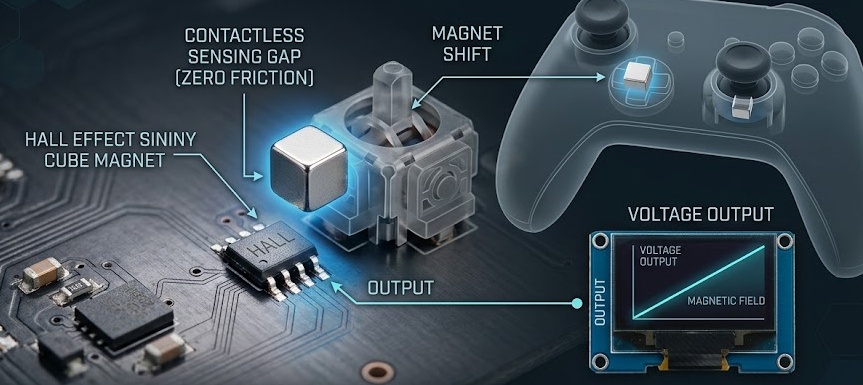

Hall-Effect sensors offered the first breakthrough by offering contactless magnetic position tracking. By measuring changes in voltage caused by a changing magnetic field, Hall-Effect joysticks such as the ones on the Manba One Ver 2 controller removed internal mechanical contact. This drastically increased component lifespan and offered robust resistance to drift.
However, this technology inherently came with trade-offs. Reading subtle changes in magnetic fields required constant signal amplification. This demanded more energy withdrawal in wireless gamepads and handheld devices. Additionally, these sensors possess a slightly higher noise floor near the rest position. This introduces slight magnetic curvature during micro-adjustments and limits how a player can calibrate their central dead zones without risking any tint rest variations.
How TMR Works
Tunnel Magnetoresistance takes magnetic sensing into the realm of quantum physics. Instead of measuring variations in magnetic fields, a TMR sensor relies on a microscopic structure composed of two ferromagnetic layers separated by an insulating barrier. One of the magnetic layers remains permanently fixed, whereas the other can move freely. It responds to movements caused by a tiny magnet attached to the base of the thumbsticks.
As the thumbstick moves, electrons pass freely between the layers through a process known as quantum tunnelling. The sensor picks up these changes in electrical resistance caused by the magnetic alignment of the layers, translating them into movement commands. Because quantum tunnelling produces a large magnetoresistance signal, TMR sensors generate exceptionally clean positional data with an ultra-low idle noise floor, resolving tiny stick displacements.

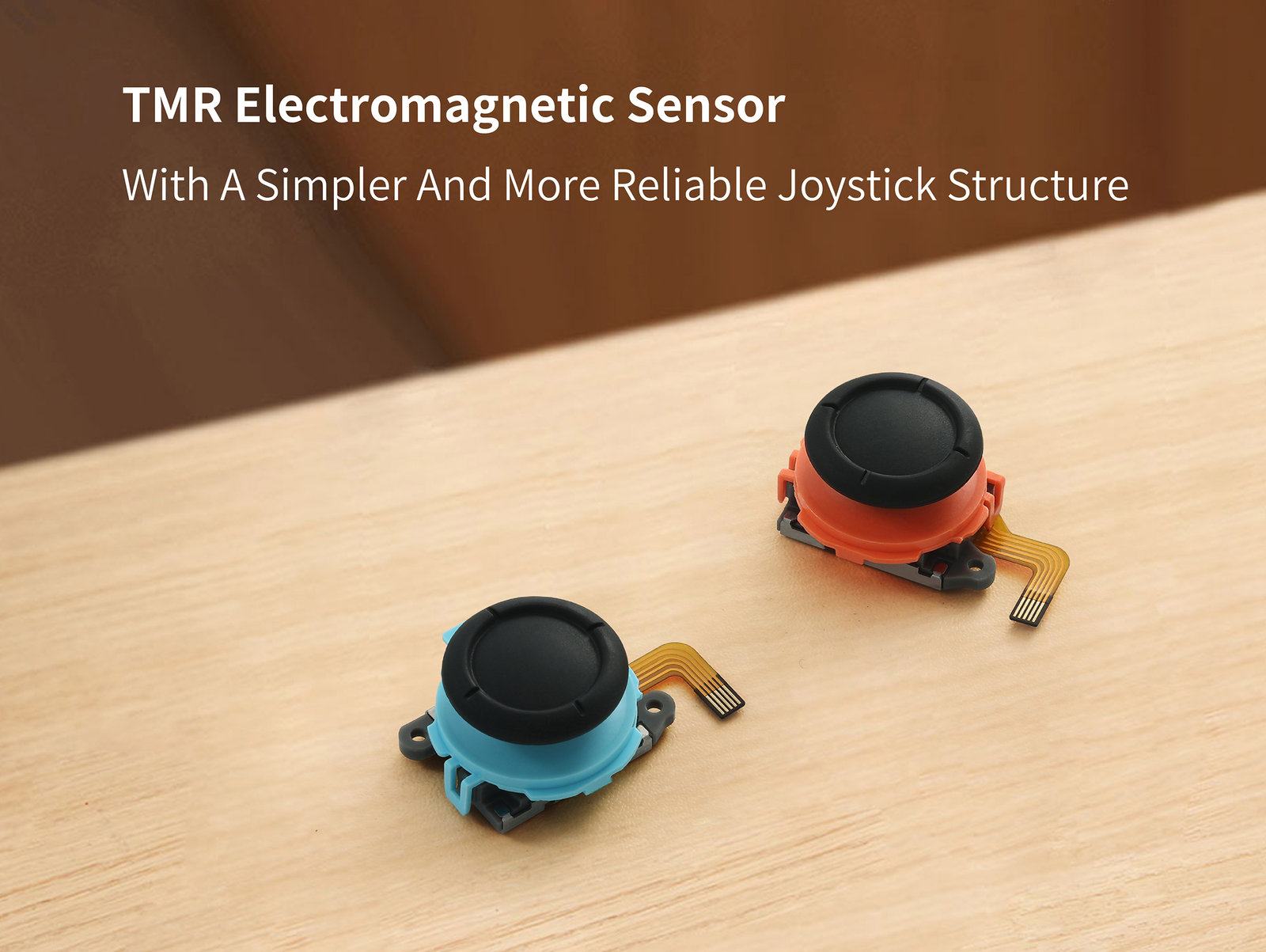

The peripheral market has embraced TMR sensor technology at a rapid pace. Many pioneer brands such as GuliKit, TDK, and K-Silver have introduced TMR joystick assemblies, whereas 8BitDo, GameSir, and Razer have integrated TMR into their flagship wireless controllers. Third-party modding communities and repair companies have also rolled out TMR modules for existing controllers. This has allowed players to upgrade their DualSense or Xbox controllers directly.
The Competitive Advantage
The practical advantages of TMR controller design extend far beyond mere longevity. Because TMR sensors measure resistance shifts instead of needing voltage amplification, they consume far less power than Hall-Effect sensors. This low battery consumption makes TMR sensors extremely viable for battery-conscious wireless controllers, mobile gaming rigs and handheld consoles.
Similarly, the superior signal-to-noise ratio yields high precision when gaming. These sensors are capable of detecting micro changes with almost zero input lag, making them favourable in fast-paced gaming. The result is ultra-fast input with zero central wobble or any interference.
Final Thoughts
As standards evolve and player intolerance for device failure reaches an all-time high, TMR stands as a definitive replacement for old potentiometer technology. The era of disposable controllers with contact wear is finally over. The technology is definitive proof that players no longer have to settle for mediocre gaming hardware and compromise between battery life, surgical accuracy, and permanent hardware durability.
